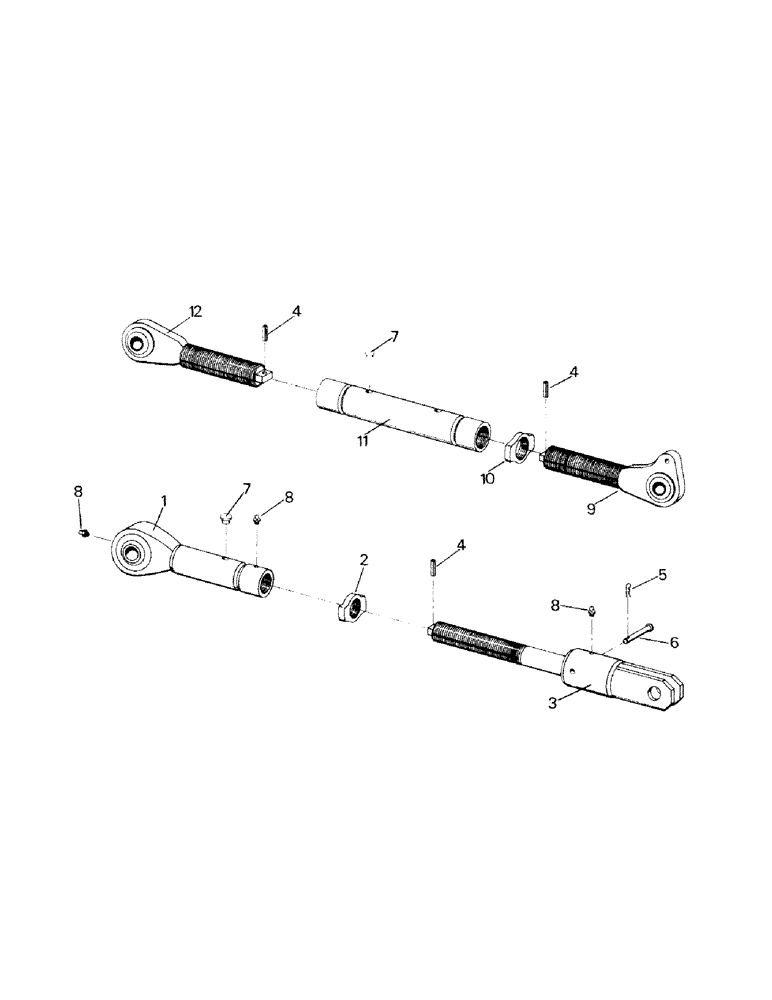

Запчасти Case IH ST210 (10-02) - 3-PT. HITCH COMPONENTS Options & Miscellaneous

40-373

ARM ASSY.

ADJUSTING ARM ASSEMBLY, consists of ref. nos. 1-8

2шт.

1

40-372

ARM

ADJUSTING ARM (top assy.)

1шт.

2

40-109

LOCK NUT

(R.H.)

1шт.

3

40-375

ARM ASSY.

ADJUSTING ARM (bottom assy.)

1шт.

4

19-786

PIN

COIL SPRING PIN, 1/4 x 2

3шт.

5

19-358

PIN

HAIR PIN

1шт.

6

40-322

PIN

FLOAT PIN

1шт.

7

18-1292

PLUG

plastic tube

3шт.

8

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

3шт.

40-513

LINK

CENTER LINK ASSEMBLY (includes ref. 9-12, 4 & 7)

1шт.

9

40-514

LINK

CENTER LINK

1шт.

10

40-108

LOCK NUT

(L.H.)

1шт.

11

40-219

LINK

TURNBUCKLE

1шт.

12

40-113

LINK

CENTER LINK

1шт.

SERVICE PARTS FOR CENTER LINK 70-1829T91 19-175-SPRING PIN-1-9116 PLUG- 70-1831T1 CTR LINK-2-3651T1 LOCK NUT- 70-1832T1 TURNBUCKLE-70-1830T1 CTR LINK

1шт.
