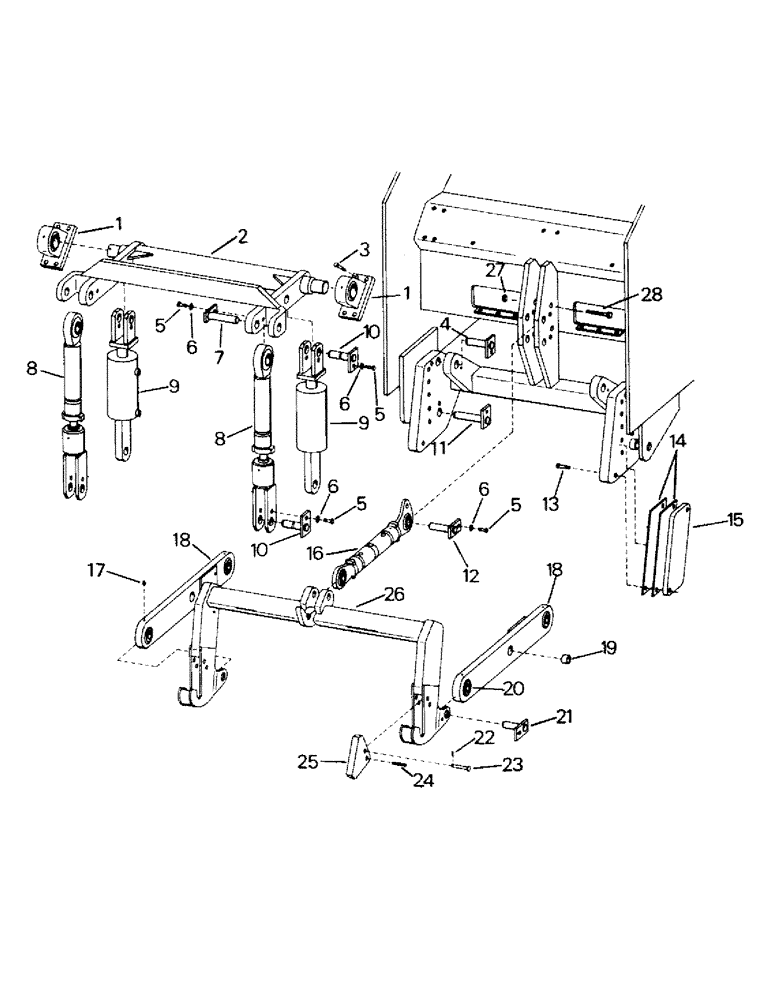

Запчасти Case IH ST210 (10-01) - 3-PT. HITCH Options & Miscellaneous

1

40-126

BLOCK

PILLOW BLOCK ASSEMBLY

2шт.

2

40-132

ROCKSHAFT

ROCKER SHAFT

1шт.

Old part number must be used on models prior to S/N break. New part number will fit models after S/N break only.

1шт.

70-1841T91

NO LONGER SERVICED

ROCKER SHAFT (replaces 1-5661)

1шт.

Old part number must be used on models prior to S/N break. New part number will fit models after S/N break only.

1шт.

3

19-57

BOLT,5/8" - 11 x 1 3/4", Gr 5

CAPSCREW, 5/8 x 1-3/4 UNC

8шт.

4

40-382

PIN

2шт.

5

19-675

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

CAPSCREW, 5/8 x 1-1/4 UNC

11шт.

6

19-111

WASHER,5/8"

5/8

11шт.

7

40-440

PIN

2шт.

8

40-373

ARM ASSY.

ADJUSTING ARM ASSEMBLY

2шт.

9

18-1152

CYLINDER

ASSY.

2шт.

Old part number must be used on models prior to S/N break. New part number will fit models after S/N break only.

1шт.

1-4194

CYLINDER

ASSY.

2шт.

Old part number must be used on models prior to S/N break. New part number will fit models after S/N break only.

1шт.

10

40-430

PIN

4шт.

11

40-380

PIN

2шт.

12

40-432

PIN

2шт.

13

19-269

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

CAPSCREW, 1/2 x 1-3/4 UNC

4шт.

14

40-521

MOUNTING PARTS

WEAR SHIM

4шт.

15

40-519

MOUNTING PARTS

WEAR PLATE

2шт.

16

40-513

LINK

CENTER LINK ASSEMBLY

1шт.

17

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

18

40-145

LINK ASSY.

LOWER LINK ASSEMBLY

2шт.

19

15-21

RING RACE

BUSHING

2шт.

20

40-106

HOUSING

uniball

4шт.

40-302

LINK

UNIBALL

4шт.

21

40-438

PIN

2

2шт.

22

19-358

PIN

HAIRPIN

1шт.

23

19-257

CLEVIS PIN,1/2" x 3"

PIN, 1/2 x 3 cornpicker

2шт.

24

40-258

ROLL PIN, 1/2 x 2-1/2

2шт.

25

40-504

HANDLE

quick hitch

2шт.

26

40-330

HITCH ASSY, TRAILER

QUICK HITCH

1шт.

27

19-84

NUT,3/4"-10, G5

3/4 UNC

1шт.

28

19-698

BOLT,Hex, 3/4" - 10 x 5", Gr 5

CAPSCREW, 3/4 x 5 UNC

1шт.
