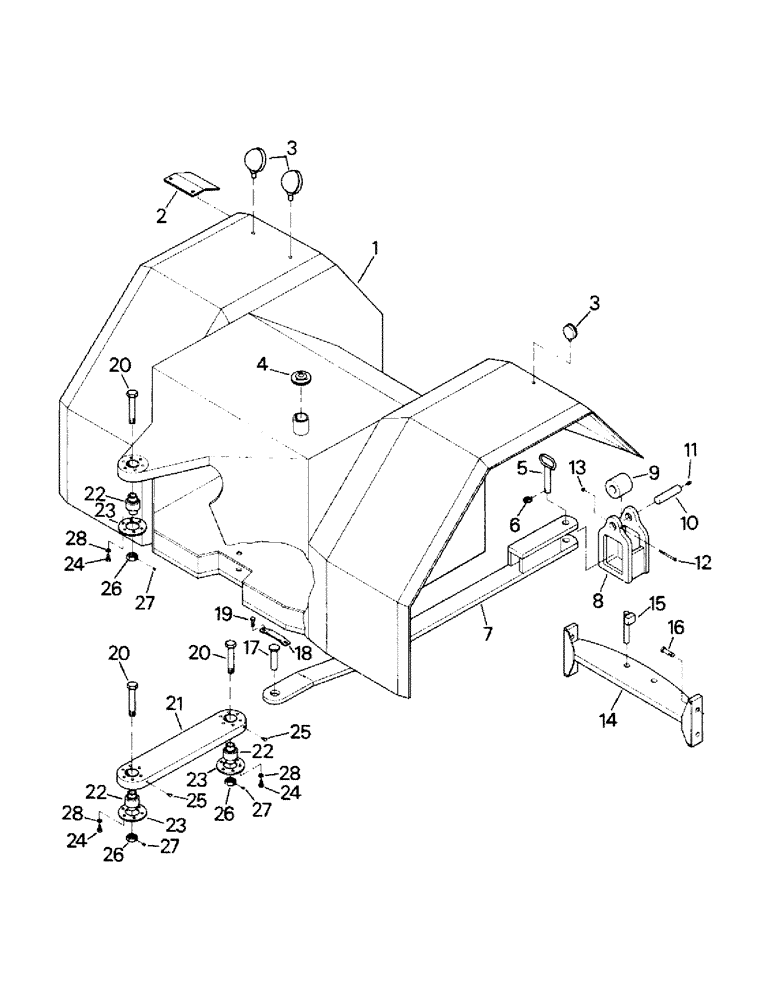

Запчасти Case IH ST210 (06-03) - REAR FRAME (12) - FRAME

1

3-268

REAR FRAME (ST210)

1шт.

3-266

REAR FRAME (RC210)

1шт.

3-1015

REAR FRAME HIGH FENDERS (ST210)

1шт.

3-1008

REAR FRAME HIGH FENDERS (RC210)

1шт.

3-1255

REAR FRAME HIGH FENDERS (K598 axle)

1шт.

2

3-275

GUARD

WIRE GUARD

2шт.

3

LIGHT (see frame electrical)

4шт.

4

8-2

CAP

vented

1шт.

5

3-57

PIN

PULL PIN, drawbar

1шт.

6

19-345

PIN

linch

1шт.

7

40-204

DRAWBAR

1шт.

8

40-208

FORK

YOKE, drawbar

1шт.

9

40-192

DRAWBAR

ROLLER, drawbar

1шт.

10

40-193

PIN

roller pivot

1шт.

11

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

12

19-41

BOLT,1/2" - 13 x 4 1/2", Gr 5

CAPSCREW, 1/2 x 4-1/2 UNC

1шт.

13

19-82

LOCK NUT

1/2 UNC

1шт.

14

40-523

DRAWBAR, hanger

1шт.

15

40-200

PIN

STOP PIN

2шт.

16

19-394

BOLT,Hex, 3/4" - 10 x 2", Gr 5

CAPSCREW, 3/4 x 2 UNC

4шт.

17

19-406

PIN

drawbar

1шт.

18

3-232

PIN STOP

1шт.

19

19-11

CAPSCREW, 1/2 x 1-1/4 UNC

2шт.

20

5-375

PIN

HINGE PIN

3шт.

2-12

LINK ASSEMBLY, Includes: Ref. 21 - 25

1шт.

21

NSS

NOT SOLD SEPARAT

LINK (w/o bearings)

1шт.

22

15-45

SPHERICAL BEARING,1.755" ID x 3.5617" OD x 4"

3шт.

23

2-10

RETAINER

3шт.

24

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 x 1 UNC

18шт.

25

31-95

FITTING

ZERK

2шт.

26

2-17

NUT

hinge pin

3шт.

27

483-1256

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

3шт.

28

19-117

LOCK WASHER,3/8"

3/8"

3шт.
