Запчасти Case IH RC210 (08-06) - RELIEF VALVE (07) - HYDRAULICS

18-1542

VALVE, PRESSURE RELI

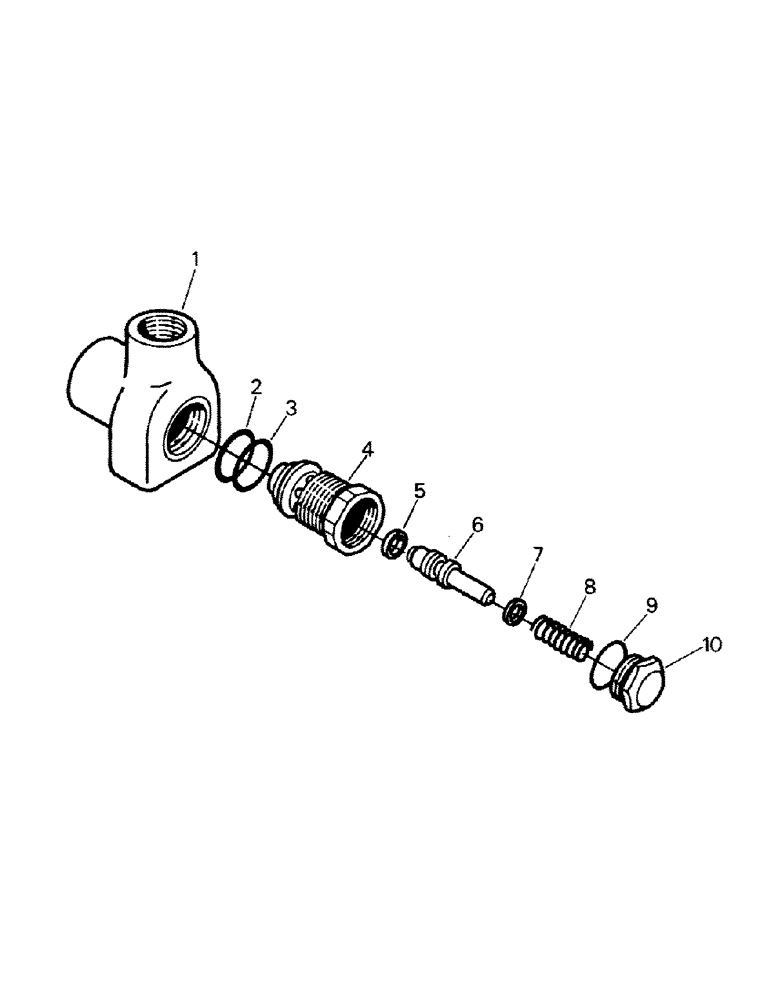

RELIEF VALVE ASSEMBLY, consists of ref. nos. 1-10

1шт.

Used on S/N 100-00587 & below. To service complete relief valve assy., order P/N 50-1139T91 as shown on p. 8-9.

1шт.

1

18-1586

HOUSING

1шт.

2

18-1583

O-RING

1шт.

3

18-817

O-RING

1шт.

4

18-1587

VALVE, PRESSURE RELI

RELIEF BODY

1шт.

5-6

18-1417

SEAL

RELIEF POPPET & SEAL ASSEMBLY, consists of ref. nos. 5-6.

1шт.

Used on S/N 100-00587 & below. To service complete relief valve assy., order P/N 50-1139T91 as shown on p. 8-9.

1шт.

7

NSS

NOT SOLD SEPARAT

SHIM (.040)

1шт.

NSS

NOT SOLD SEPARAT

SHIM (.020)

1шт.

18-1509

SHIM

(.010)

1шт.

8

1-4458

SPRING

1шт.

9

18-1582

O-RING

1шт.

10

18-923

PLUG

RELIEF CAP

1шт.
