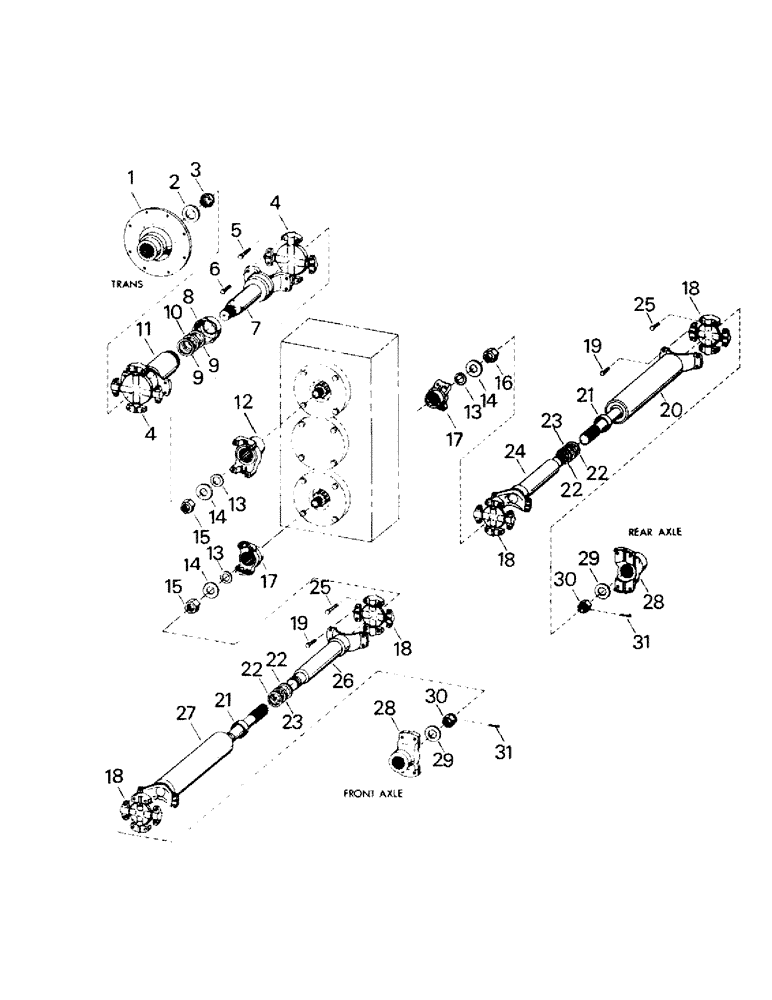

Запчасти Case IH RC210 (04-26) - RC 210 DRIVESHAFT (04) - Drive Train

17-130

DRIVESHAFT, top front

1шт.

17-143

DRIVESHAFT, rear

1шт.

17-142

DRIVESHAFT, bottom front

1шт.

1

1-1797

COMPANION FLANGE

1шт.

2

12-1434

WASHER

1шт.

3

12-2056

THIN NUT,3/4"-12, Thin

FLANGE NUT (used on all other transmissions P/N 12-1989)

1шт.

12-2056

THIN NUT,3/4"-12, Thin

FLANGE NUT (used on all other transmissions)

1шт.

4

17-261

BEARING

SPIDER & BEARING KIT

2шт.

5

19-477

BOLT,Hex, 1/2" - 20 x 2", Gr 8

CAPSCREW, 1/2 x 2 UNF

8шт.

6

A12870

BOLT,Hex, 7/16" - 20 x 1 1/16"

CAPSCREW, 7/16 x 1-1/16 UNF

8шт.

7

NSS

NOT SOLD SEPARAT

TUBE ASSEMBLY

1шт.

8

17-170

CAP

STUFFING CAP

1шт.

9

17-171

CAP

WASHER

2шт.

10

17-172

CAP

SEAL

1шт.

11

17-168

YOKE, slip

1шт.

12

17-112

TOP YOKE

1шт.

13

2-39

GASKET

drive yoke

3шт.

14

2-34

WASHER

drive yoke

3шт.

15

14-59T1

NUT

(R.H.)

2шт.

16

65-30

NUT

(L.H.)

1шт.

17

17-110

NO LONGER SERVICED

BOTTOM YOKE

2шт.

18

17-267

U-JOINT SPIDER

SPIDER & BEARING KIT

2шт.

19

19-921

BOLT,Hex, 3/8" - 24 x 1", Gr 8

CAPSCREW, 3/8 x 1 UNF

8шт.

20

NSS

NOT SOLD SEPARAT

TUBE ASSEMBLY

1шт.

21

17-178

SEAL

STUFFING CAP

1шт.

22

17-180

SEAL

WASHER

2шт.

23

17-179

SEAL

1шт.

24

17-177

SLIP YOKE

1шт.

25

19-536

BOLT,3/8" - 24 x 1 3/4", Gr 8

CAPSCREW, 3/8 x 1-3/4 UNF

8шт.

26

17-182

SLIP YOKE

1шт.

27

NSS

NOT SOLD SEPARAT

REAR TUBE ASSEMBLY

1шт.

28

17-144

YOKE, front & rear

2шт.

29

16-485

WASHER

2шт.

30

19-877

LOCK NUT

1-1/8 UNF

2шт.

31

16-487

COTTER PIN

2шт.
