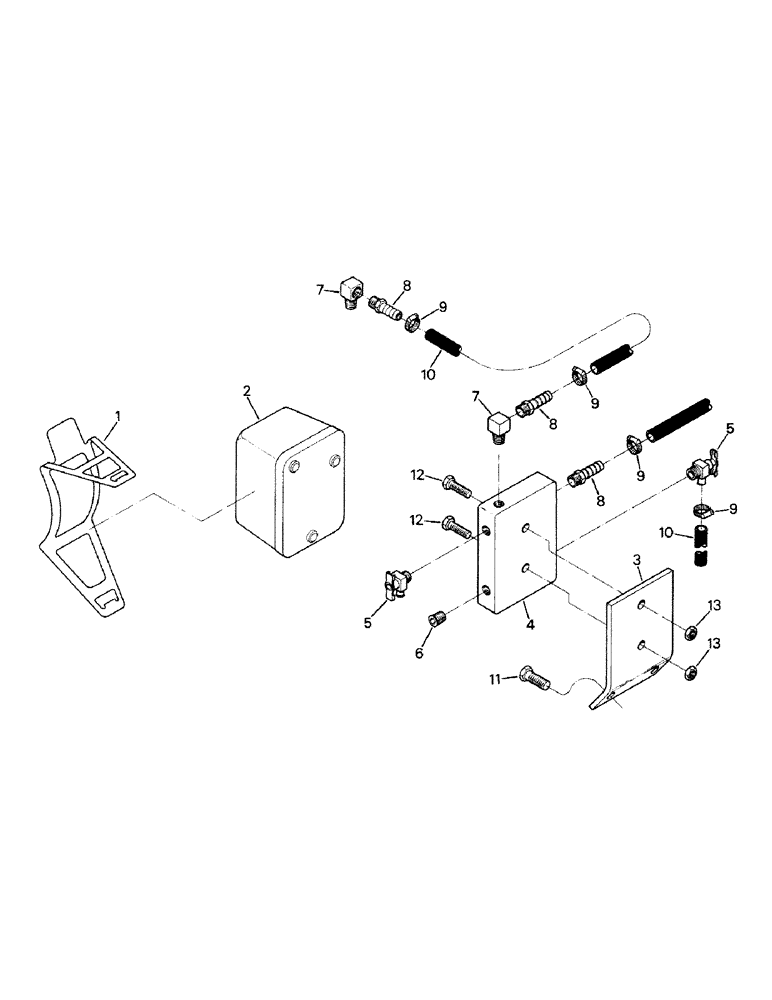

Запчасти Case IH RC210 (07-03) - WATER SEPARATOR (02) - FUEL SYSTEM

1

1-9775

CLAMP

water sep.

1шт.

2

1-9774

ELEMENT

water sep.

1шт.

3

2-2084

BRACKET

1шт.

4

1-9773

BASE

water sep.

1шт.

5

31-159

COCK, DRAIN

DRAIN COCK 90 deg.

2шт.

6

31-535

PLUG

1шт.

7

31-208

ELBOW

STREET ELBOW

2шт.

8

31-137

FITTING

hose

3шт.

9

32-29

HOSE CLAMP

CLAMP

4шт.

10

32-203

HOSE

2шт.

11

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW

2шт.

12

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAPSCREW

2шт.

13

19-77

NUT,5/16"-18, G5

HEX NUT

2шт.

14

35-1209

KIT

water sep. assembly (includes Refs. 1-13)

1шт.
