Запчасти Case IH PTA325 (03-08) - A/C & HEATER PLUMBING, CAT 3406 ENGINE (03) - Climate Control

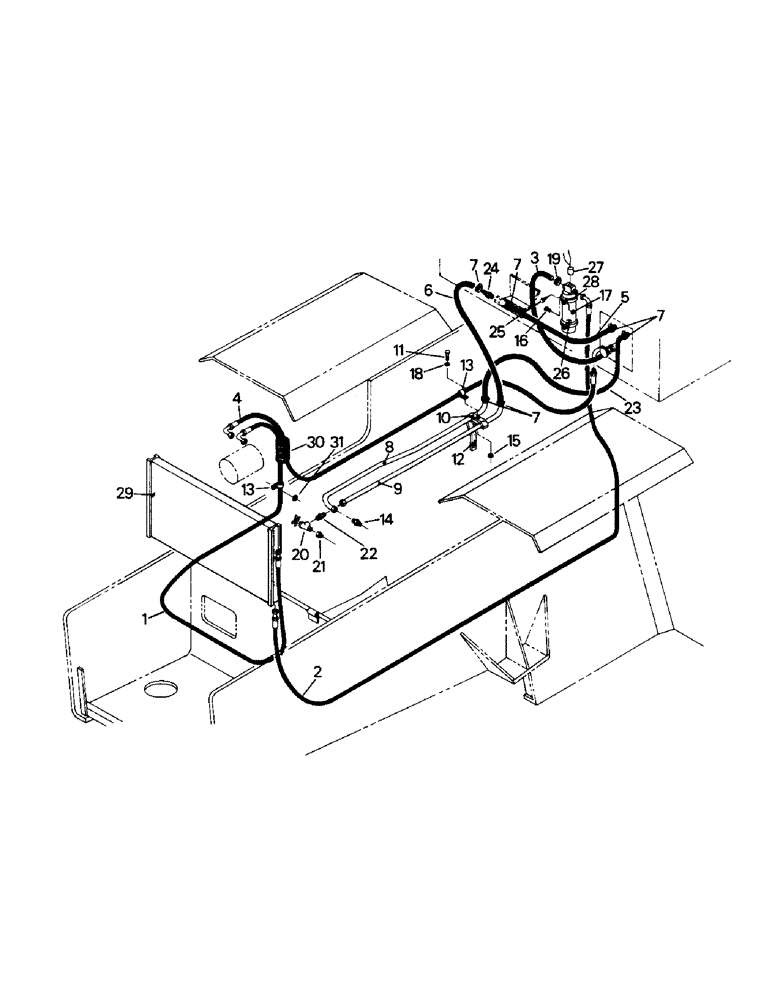

Схема запчастей Case IH PTA325 - (03-08) - A/C & HEATER PLUMBING, CAT 3406 ENGINE (03) - Climate Control
7
9
13
24
15
18
7
6
2
29
11
7
10
21
23
20
22
3
8
7
1
26
13
17
25
31
27
19
12
28
16
5
14
30
4

Артикул

Название

Примечание

Количество

1

31-1063

HOSE ASSY.

HOSE ASSEMBLY

1шт.

2

31-1519

HOSE ASSY.

HOSE ASSEMBLY

1шт.

3

31-1351

A/C HOSE,0.31" ID x 22.00" , SAE J516 Type A

0.31" ID x 22.00", SAE J516 Type A, Assy

1шт.

4

31-1300

A/C HOSE

HOSE ASSEMBLY

1шт.

5

31-1352

HOSE,0.63" ID x 16.00"

1шт.

6

31-1067

HOSE,0.63" ID x 36.00"

1шт.

7

25-285

SQUARE NUT,Sq, 5/16"-18

CLAMP

6шт.

8

25-1026

TUBE ASSEMBLY

1шт.

9

1-6867

TUBE ASSEMBLY 0.625" OD

1шт.

10

32-1000

CLAMP

1шт.

11

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

CAPSCREW, 1/4 x 1-1/2 UNC

1шт.

12

25-1027

BRACKET

1шт.

13

32-302

CLAMP,7/8", Insul, 3/8" Bolt

2шт.

14

31-411

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-14, NPTF

CONNECTOR

1шт.

15

19-1081

LOCK NUT

LOCK NUT, 1/4 UNC

1шт.

16

19-211

CAPSCREW,1/4" - 20 x 1 1/4", Gr 5

1/4 x 1-1/4 UNC

2шт.

17

19-5381

NUT

1/4 UNC

2шт.

18

19-106

WASHER,5/16", SAE

5/16

2шт.

19

25-48

HOSE CLAMP

CLAMP

1шт.

20

31-1275

SHUT-OFF VALVE

TRUCK VALVE

1шт.

21

31-13

BUSHING

REDUCER

1шт.

22

31-319

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

CONNECTOR

1шт.

23

31-1295

HOSE,0.63" ID x 46.00"

1шт.

24

31-1296

BARBED FITTING

1шт.

25

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, tapping, 1/4 x 1/2 UNC

2шт.

26

1-7778

AIR CONDITIONER

RECEIVER DRIER

1шт.

27

25-1002

SWITCH

(low pressure)

1шт.

28

1-8563

CLAMP BRACKET

BRACKET

2шт.

29

2-3370T1

CONDENSER

1шт.

30

1-5599

SLEEVE

1шт.

31

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC

1шт.

19-135

CABLE TIE

TY RAP (not shown)

3шт.

Выбрано товаров: 32
