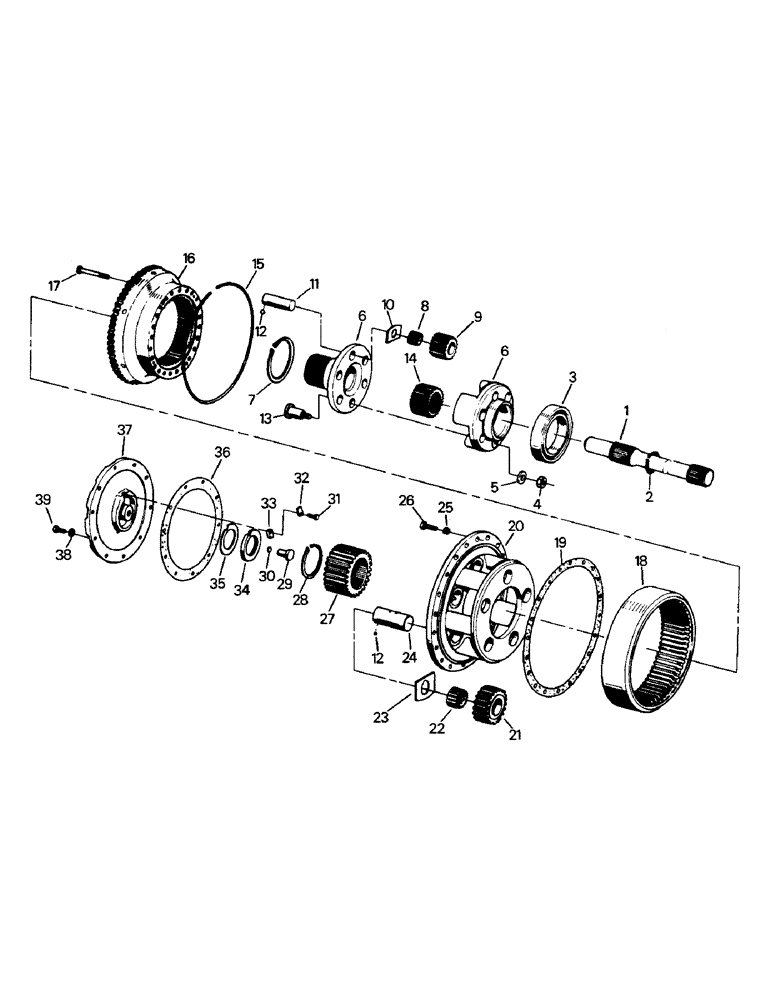

Запчасти Case IH PTA280 (04-90) - K-598.00/10 PLANETARY ASSEMBLY (04) - Drive Train

16-1593

AXLE

SHAFT I ASSEMBLY (includes ref. 2, 7 & 1 p/n 16-1594)

1шт.

16-1516

AXLE SHAFT II ASSEMBLY (includes ref. 2, 7 & 1 p/n 16-1695)

1шт.

1

16-1594

AXLE

SHAFT I (1078 mm)

1шт.

16-1595

AXLE

SHAFT II (1208 mm)

1шт.

2

16-1596

RING, SNAP

SNAP RING

4шт.

3

16-1597

BALL BEARING,120 mm ID x 180 mm OD x 28 mm

2шт.

16-1600

PLANETARY REDUCER

PLANETARY WHEEL HUB ASSEMBLY, consists of 4-13

2шт.

4

16-1598

NUT

HEXAGON SCREW

6шт.

THE CORRECT DESCRIPTION IS HEX NUT.

1шт.

5

16-1599

WASHER

6шт.

6

16-1601

CARRIER

INNER PLANET CARRIER (assembled with ref. 4, 5 & 13)

2шт.

7

16-1609

RING, SNAP

SNAP RING

2шт.

8

16-1603

NEEDLE BEARING,30mm ID x 42mm OD x 30mm W

NEEDLE ROLLER BEARING

12шт.

9

16-1604

PINION

PLANET PINION

6шт.

10

90-1009T1

LARGE PLATE

SPACER PLATE (replaces p/n 16-1605 - code E)

12шт.

The later style spacer plates must be custome fitted due to casting variances in the plant carrier.

1шт.

THE PLATE MEASURE ABOUT 3 5/8" LONG

1шт.

11

16-1606

PINION

PLANET PINION SHAFT

6шт.

12

16-1607

BALL

STEEL BALL

16шт.

13

16-1608

SCREW,Hex Shldr

CLAMPING SCREW

6шт.

14

16-1602

PINION

SUN PINION

2шт.

15

16-1610

RING

CLAMPING RING

2шт.

16

16-1611

GEAR

DOUBLE RING GEAR

2шт.

17

16-1612

SCREW,Hex, M14 x 1.5 x 92.50mm

HEXAGON SCREW

48шт.

THIS SCREW MEASURE 3 11/16

1шт.

18

16-1613

GEAR, RING

RING GEAR

2шт.

19

16-1614

GASKET

2шт.

16-1517

HUB

PLANETARY WHEEL HUB ASSEMBLY, outer (also includes ref. 12), consists of 20-24

2шт.

20

16-1615

CARRIER

PLANET CARRIER, outer

2шт.

21

16-1616

PINION

PLANET PINION, outer

10шт.

22

16-1617

NEEDLE BEARING,50mm ID x 62mm OD x 30mm W

NEEDLE ROLLER BEARING

20шт.

23

90-1008T1

LARGE PLATE

SPACER PLATE (replaces p/n 16-1618 - code E)

20шт.

24

16-1619

PINION

PLANET PINION SHAFT, outer

10шт.

25

16-1592

LOCK WASHER

SPRING WASHER

40шт.

26

16-1621

SCREW,Hex, M14 x 1.5 x 45mm, Gr 10.9

HEXAGON SCREW

40шт.

27

16-1622

SUN GEAR

SUN PINION, outer

2шт.

28

16-1623

RING, SNAP

SNAP RING

4шт.

29

16-1624

SUPPORT PIN

2шт.

30

16-1625

SHIM

1шт.

31

16-1626

BOLT,Hex, M8 x 1.25 x 15mm, Gr 10.9

HEXAGON SCREW

2шт.

32

16-1627

LOCK WASHER

LOCKING WASHER

2шт.

33

16-1628

CLAMPING PLATE

2шт.

34

16-1629

THRUST BEARING,100 mm OD x 8 mm

2шт.

35

16-1630

SHIM

1шт.

36

16-1631

GASKET

2шт.

37

16-1632

COVER

2шт.

38

16-1633

SPRING WASHER

SPRING WASHER

20шт.

39

16-1634

SPECIAL BOLT,Hex, M10 x 22mm, Cl 10.9

HEXAGON SCREW

20шт.
