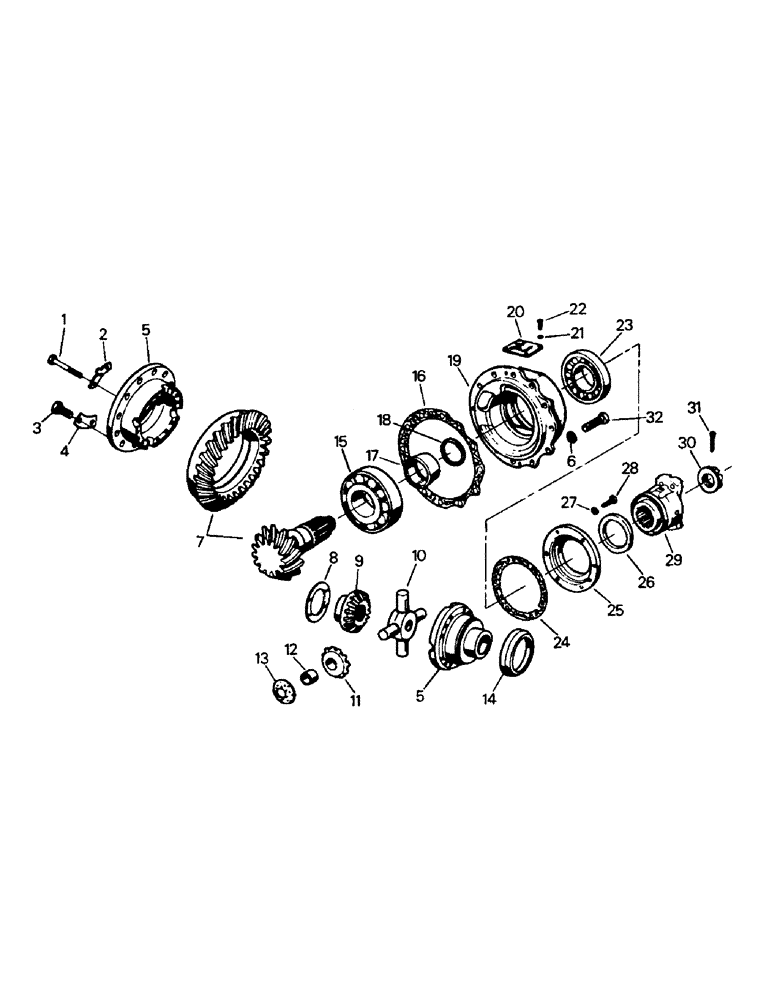

Запчасти Case IH PTA280 (04-88) - K-598 DIFFERENTIAL ASSEMBLY (04) - Drive Train

16-1547

DIFFERENTIAL

HOUSING ASSEMBLY (includes ref. 1, 2, 5 & 8-14)

1шт.

1

16-1543

SCREW,Hex, M12 x 1.5 x 90mm, Gr 10.9

HEXAGON SCREW

12шт.

2

16-1544

LARGE PLATE

LOCKING PLATE

4шт.

3

16-1545

HEX SOC SCREW,M18 x 1.5 x 35mm, Cl 10.9

HEXAGON SCREW

12шт.

4

16-1546

LARGE PLATE

LOCKING PLATE

6шт.

5

16-1548

CAGE ASSY.

DIFFERENTIAL HOUSING HALVES (assembled with ref. 1, 2 & 14)

1шт.

6

16-1592

LOCK WASHER

SPRING WASHER

12шт.

7

16-1549

GEAR

RING GEAR & PINION, rear axle (assembled with ref. 3, 4, 30 & 31)

1шт.

16-1550

GEAR

RING GEAR & PINION, front axle (assembled with ref. 3, 4, 30 & 31)

1шт.

8

16-1551

SPACER

RING (4.6 mm)

1шт.

16-1552

SPACER

RING (4.7 mm)

1шт.

16-1553

SPACER

RING (4.8 mm)

1шт.

16-1554

SPACER

RING (4.9 mm)

1шт.

16-1555

SPACER

RING (5.0 mm)

1шт.

16-1556

SPACER

RING (5.1 mm)

1шт.

16-1557

SPACER

RING (5.2 mm)

1шт.

16-1558

SPACER

RING (5.3 mm)

1шт.

9

16-1559

PINION

BIG DIFFERENTIAL BEVEL PINION

2шт.

10

16-1560

DIFF. SPIDER

SPIDER

1шт.

11

16-1561

PINION

SMALL DIFFERENTIAL BEVEL PINION (assembled with ref. 12)

4шт.

12

16-1562

BUSHING

4шт.

13

16-1563

WASHER

RING

4шт.

14

16-1564

BAFFLE

Oil, Plate

1шт.

15

16-1565

TAPERED BEARING

1шт.

16

16-1566

SHIM

(1.00 mm)

1шт.

16-1567

SHIM

(.50 mm)

1шт.

16-1568

SHIM

(.30 mm)

1шт.

16-1569

SHIM

(.20 mm)

1шт.

16-1570

SHIM

(.25 mm)

1шт.

17

16-1571

SPACER

SLEEVE

1шт.

18

16-1572

SHIM

SPACER RING (2.05 mm)

1шт.

16-1573

SPACER

RING (2.00 mm)

1шт.

16-1574

SPACER

RING (1.00 mm)

1шт.

16-1575

SPACER

RING (.50 mm)

1шт.

16-1576

SPACER

RING (.20 mm)

1шт.

16-1577

SPACER

RING (.10 mm)

1шт.

19

16-1578

HOLDER

BEARING HOLDER

1шт.

20

16-1579

DIRECTION INDICATING PLATE

1шт.

21

16-1580

SPRING WASHER

4шт.

22

16-1581

CAPSCREW,Hex, M6 x 18mm, Gr 10.9, Full Thd

HEXAGON SCREW

4шт.

23

16-1582

TAPERED BEARING

1шт.

24

16-1583

GASKET

1шт.

25

16-1584

COVER

1шт.

26

16-1585

SEALING RING

SEALING RING (83 mm inside diameter)

1шт.

1-6857

SEALING RING

SEALING RING (85 mm inside diameter)

1шт.

27

16-1586

SPRING WASHER

SPRING WASHER

6шт.

28

16-1587

CAPSCREW,Hex, M8 x 1.25 x 25mm, Gr 10.9

HEXAGON SCREW

6шт.

29

16-1588

HUB

COUPLING HUB (see note)

1шт.

Coupling hub p/n 16-1588 is no longer available. When ordering a replacement, please order hub p/n 01-6858 and sealing ring p/n 01-6857. Sealing p/n 16-1585 may still be purchased but is should only be used with coupling hub p/n 16-1588.

1шт.

1-6858

YOKE

COUPLING HUB

1шт.

30

16-1589

NUT

SLOTTED HUB

1шт.

31

16-1590

COTTER PIN,M6.3 x 63

1шт.

32

16-1591

BOLT,Hex, M14 x 1.5 x 45mm, Gr 10.9, Full Thd

HEXAGON SCREW

12шт.
