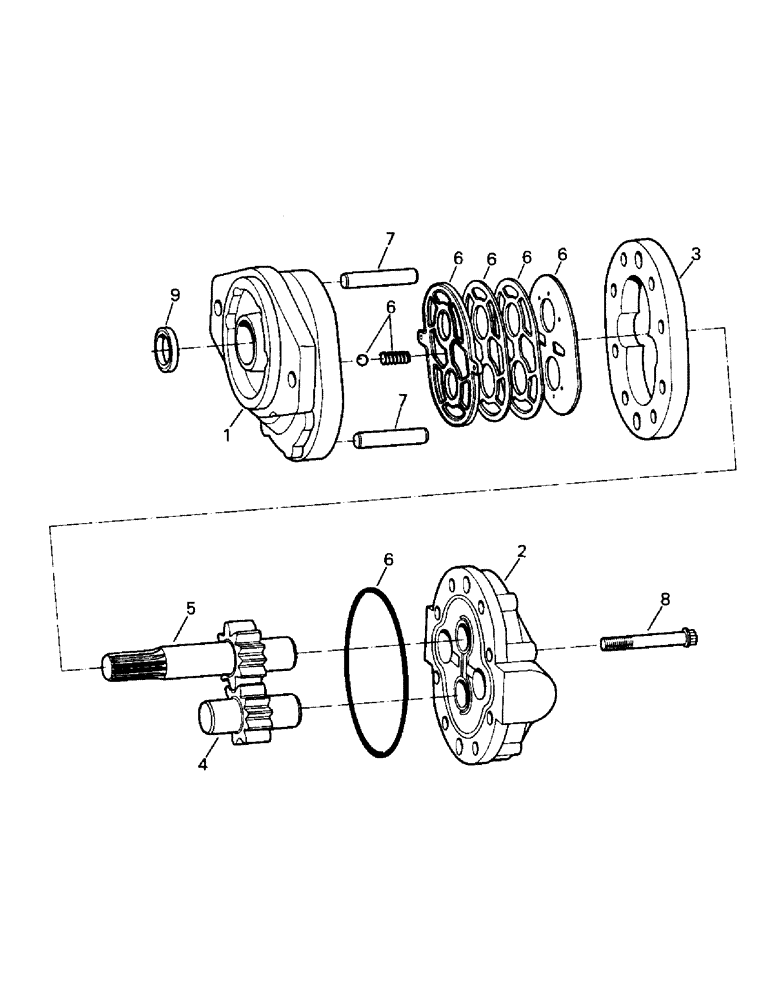

Запчасти Case IH PTA280 (04-75) - PTA 251, PTA 280, CUMMINS & PTA 310 LUBE PUMP (04) - Drive Train

50-1123T91

PUMP

ASSEMBLY, consists of 1-9

1шт.

1

50-1239T91

BODY ASSEMBLY (includes ref. 9)

1шт.

2

50-1240T1

BODY ASSEMBLY

1шт.

3

50-1241T1

PLATE

GEAR PLATE

1шт.

4

50-1242T1

IDLER SHAFT & GEAR ASSEMBLY

1шт.

5

50-1238T1

GEAR

DRIVE SHAFT & GEAR ASSEMBLY

1шт.

6

50-1237T1

SEAL

KIT

1шт.

7

141221

DOWEL PIN 5/16" x 7/8"

2шт.

8

19-1584

CAPSCREW,Flg, 5/16" - 18 x 2", Gr 8

12 PT. SOCKET HEAD CAPSCREW, 5/16 x 2 UNC

4шт.

19-1585

SCREW,Flg, 5/16" - 18 x 2 1/4", Gr 8

12 PT. SOCKET HEAD CAPSCREW, 5/16 x 2-1/4 UNC

4шт.

9

NSS

NOT SOLD SEPARAT

SEAL (included in kit 50-1237T1 or with ref. 1 only)

1шт.

the coupler between this pump and the engine must be ordered from cummins, part# 3038083 -lp-/jl

1шт.
