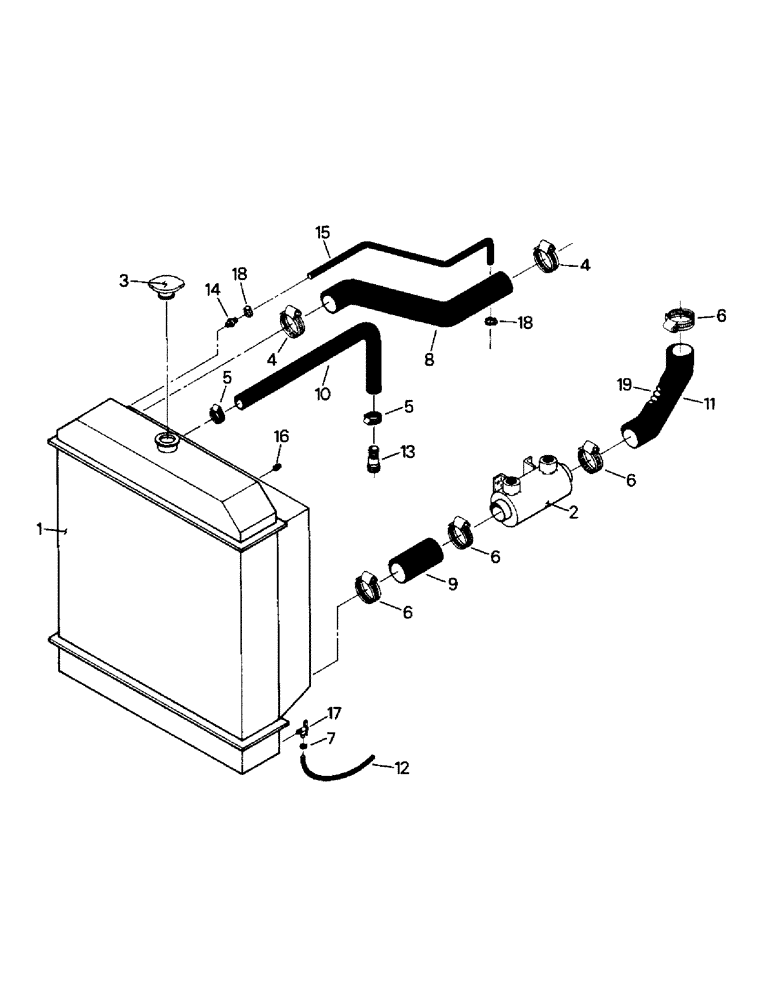

Запчасти Case IH PTA280 (04-31) - PTA 251, PTA 280, CUMMINS & PTA 310 RADIATOR & HOSES (04) - Drive Train

1

90-2160T91

RADIATOR

ASSEMBLY

1шт.

2

1-8250

COOLER

OIL COOLER

1шт.

3

10-21

CAP

radiator

1шт.

4

32-24

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

CLAMP

2шт.

5

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP

2шт.

6

32-22

HOSE CLAMP,#52, 2.81/3.75 Type F Worm

CLAMP

4шт.

7

32-59

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP (on early models only)

1шт.

8

31-1543

RADIATOR HOSE

1шт.

9

31-1487

HOSE,3.00" ID x 4.00"

1шт.

10

31-1509

HOSE,1.00" ID x 40.00"

1шт.

11

31-1544T1

RADIATOR HOSE

(31-1544)

1шт.

REF HOSE 31-1544T1 IT MEASURES 3" ID &

1шт.

12

1-3811

HOSE

(only on early models)

1шт.

13

31-248

FITTING

KING NIPPLE

1шт.

14

31-137

FITTING

BARBED FITTING

1шт.

15

32-336

HOSE

1шт.

16

31-37

PLUG

PIPE PLUG

1шт.

17

31-159

COCK, DRAIN

DRAIN COCK

1шт.

18

32-29

HOSE CLAMP

CLAMP

2шт.

19

31-1719

SPRING, hose

1шт.

19-135

CABLE TIE

TY RAP (not shown)

2шт.

2 3/4" WITH A 90 DEGREE BEND.

1шт.
