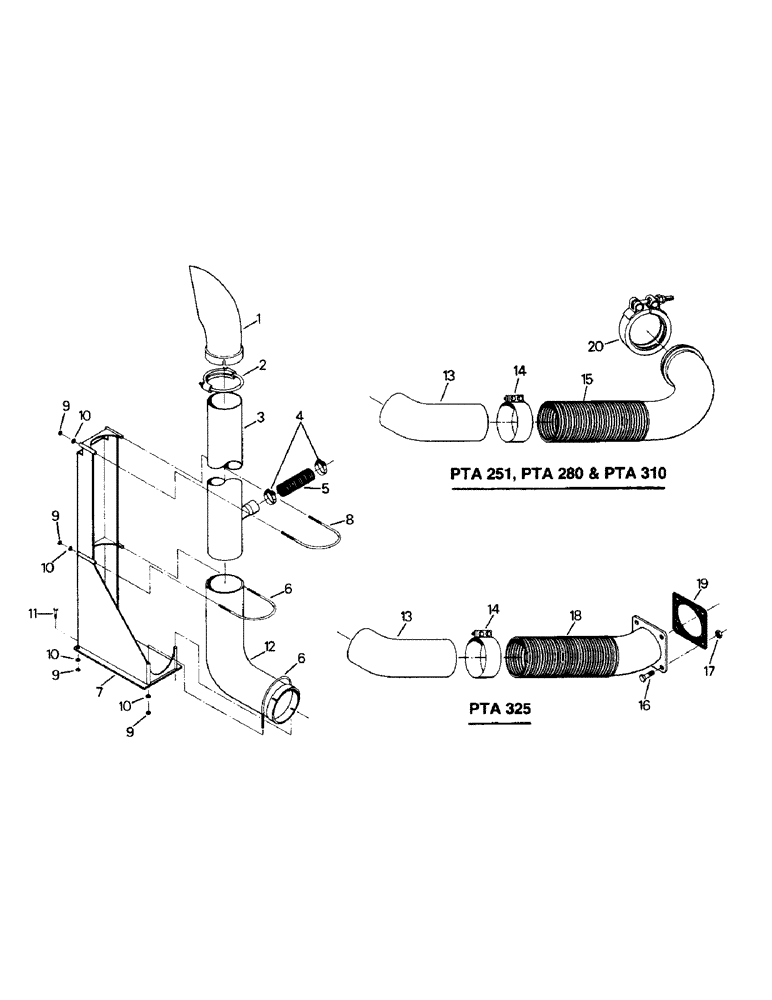

Запчасти Case IH PTA280 (04-24) - PTA 251, PTA 280, PTA 310 & PTA 325 EXHAUST SYSTEM (04) - Drive Train

1

45-254

MUFFLER

EXHAUST STACK

1шт.

2

31-1537

MOUNTING CLIP

CLAMP

1шт.

3

45-196

PIPE, EXHAUST SYSTEM

EJECTOR

1шт.

4

32-137

CLAMP,#38, 2.06"-2.37", T-Bolt

2шт.

5

31-1080T1

TUBE,2.06" ID, 2.25" OD, 16.25" Length

FLEX TRACTORS

1шт.

6

32-322

U-BOLT,3/8" - 16 x 6.62"

2шт.

7

45-195

BRACKET

ejector

1шт.

8

1-2948

BOLT

U-BOLT

1шт.

9

232-4136

LOCK NUT,3/8"-16, GC

3/8 UNC

8шт.

10

19-107

WASHER

3/8

8шт.

11

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 x 1 UNC

2шт.

12

45-191

FITTING

ELBOW

1шт.

13

2-2959T1

TUBE,5" OD

1шт.

14

31-1061

MOUNTING CLIP

CLAMP ASSEMBLY

1шт.

15

2-2958T1

TUBE

FLEX TUBE (PTA 251, PTA 280 (Cummins) & PTA 310)

1шт.

90-2463T1

TUBE

FLEX TUBE (PTA 280 (Cat))

1шт.

16

19-59

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

CAPSCREW, 5/8 x 1-1/2 UNC

4шт.

17

19-83

NUT,5/8"-11, G5

5/8 UNC

4шт.

18

2-2957T1

TUBE

FLEX TUBE

1шт.

19

18-1301

GASKET

1шт.

20

31-1324

CLAMP

(PTA 251, PTA 280 (Cummins) & PTA 310)

1шт.

31-1316

MOUNTING CLIP

CLAMP (PTA 280 (Cat))

1шт.
