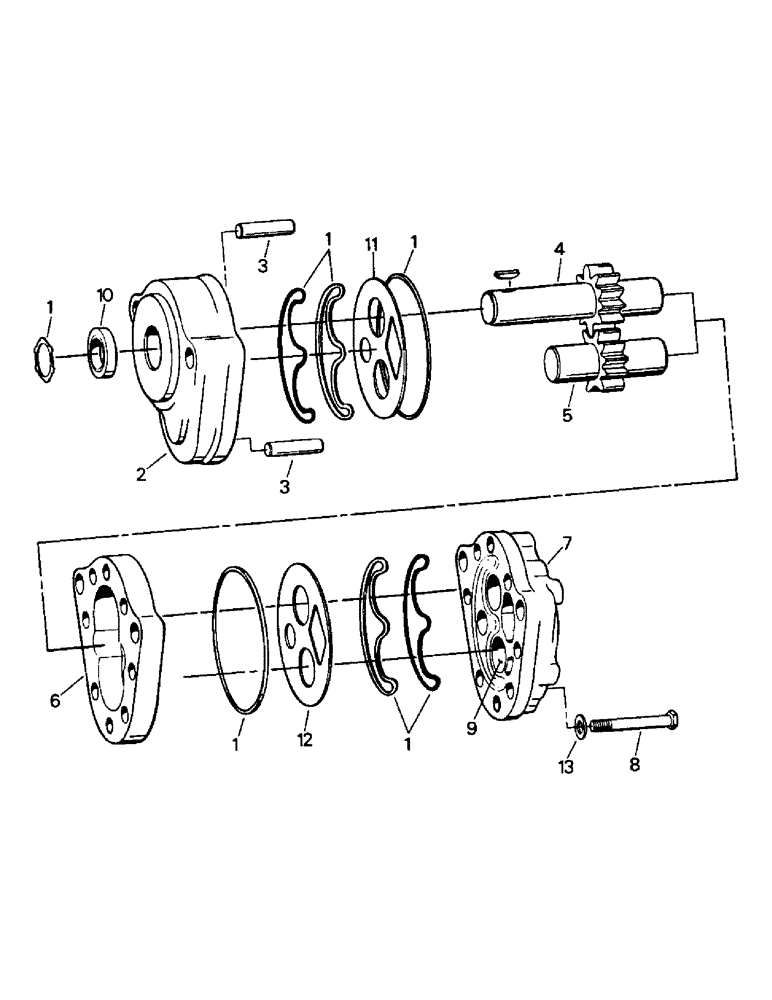

Запчасти Case IH PTA270 (04-78) - PTA 270 LUBE PUMP (04) - Drive Train

50-1286T91

PUMP

ASSEMBLY, consists of 1-13

1шт.

1

50-1622T1

KIT

MINOR REPAIR KIT

1шт.

2

18-1387

BODY ASSEMBLY (includes ref. 9 & 10)

1шт.

3

50-1036T1

DOWEL

PIN

2шт.

4

50-1620T1

GEAR

DRIVE SHAFT & GEAR ASSEMBLY

1шт.

5

50-1619T1

IDLER SHAFT & GEAR ASSEMBLY

1шт.

6

50-1618T1

PLATE

GEAR PLATE

1шт.

7

18-1392

BODY ASSEMBLY (includes ref. 19)

1шт.

8

19-24

BOLT,3/8" - 16 x 2 1/4", Gr 5

CAPSCREW, 3/8 x 2-1/4 UNC

6шт.

9

1-4196

NEEDLE BEARING

BEARING (inluded with ref. 2 & 7 or sold separately)

1шт.

10

50-1621T1

SEAL (included in kit 50-1622T1 or sold separately)

1шт.

11

1-9710

LARGE PLATE

WEAR PLATE (included in kit 50-1622T1 or sold separately)

1шт.

12

1-9709

LARGE PLATE

WEAR PLATE (included in kit 50-1622T1 or sold separately)

1шт.

13

19-301

WASHER

6шт.
