Запчасти Case IH PT270 (11-58) - DEPTH CONTROL HYDRAULICS, HITCH SIDE Options & Miscellaneous

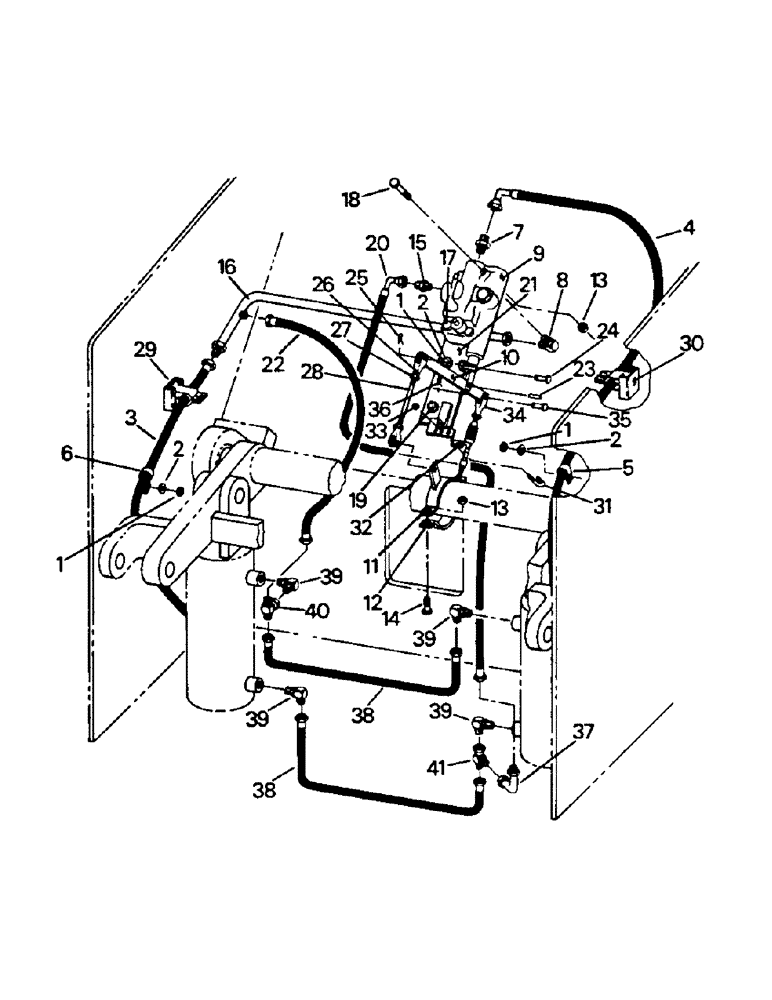

Схема запчастей Case IH PT270 - (11-58) - DEPTH CONTROL HYDRAULICS, HITCH SIDE Options & Miscellaneous
2
1
10
31
38
1
25
34
28
5
40
13
39
2
24
8
30
23
32
15
29
1
19
35
39
22
13
39
36
12
18
38
16
21
33
3
41
7
17
11
37
9
6
14
39
27
2
4
26
20

Артикул

Название

Примечание

Количество

1

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC

5шт.

2

19-107

WASHER

3/8

5шт.

3

31-1436

HOSE ASSEMBLY

1шт.

4

31-1437

HOSE ASSEMBLY

1шт.

5

31-1348

CLAMP

1шт.

6

31-1349

MOUNTING CLIP

CLAMP

1шт.

7

18-624

HYD CONNECTOR,1 1/16"-12, 37 Degree x1 3/16"-12, O-Ring

FITTING (14)

1шт.

8

31-479

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

(16)

1шт.

9

18-1102

VALVE

DEPTH CONTROL VALVE (see fig. 11-58)

1шт.

10

1-8592

LEVER

1шт.

11

40-461

CLAMP (top) (4")

1шт.

50-1290T1

CLAMP (top) (4-1/2")

1шт.

12

40-459

CLAMP (bottom) (4")

1шт.

50-1291T1

CLAMP (bottom) (4-1/2")

1шт.

13

19-508

LOCK NUT

LOCK NUT, 5/16 UNC

5шт.

14

19-8

BOLT,5/16" - 18 x 1 1/2", Gr 5

CAPSCREW, 5/16 x 1-1/2 UNC

2шт.

15

18-782

ROD, CONNECTING,7/8"-14, 37 Degree x 1 3/16"-12, O-Ring

FITTING (14)

1шт.

16

2-1026

TUBE ASSEMBLY 1" OD

1шт.

17

19-725

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

CAPSCREW, 5/16 x 3-1/4 UNC

2шт.

18

19-333

BOLT,Hex, 5/16" - 18 x 4", Gr 5

CAPSCREW, 5/16 x 4 UNC

1шт.

19

19-117

LOCK WASHER,3/8"

3/8"

3шт.

20

31-1532

HOSE ASSEMBLY

1шт.

21

1-8596

BRACKET, valve mount

1шт.

22

31-1439

HOSE ASSEMBLY

1шт.

23

454512

SHIM

3/16" x 3/4", Slotted

1шт.

24

19-143

CLEVIS PIN,5/16" x 0.94"

2шт.

25

19-238

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

26

19-140

CLEVIS

2шт.

27

19-88

NUT,5/16"-24, G5

5/16 UNF

2шт.

28

40-456

ROD, adjusting

1шт.

29

31-1187

CLAMP

ASSEMBLY

1шт.

30

31-1150

CLAMP

ASSEMBLY

1шт.

31

19-964

BOLT

U-BOLT

1шт.

32

1-3767

SHIM

1шт.

33

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

2шт.

34

19-141

CLEVIS

1шт.

35

19-144

CLEVIS PIN,1/4" x 0.77"

1шт.

36

19-170

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

37

31-328

FITTING

ADAPTER

1шт.

38

18-1531

HOSE ASSY.

HOSE ASSEMBLY

2шт.

39

31-324

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

(8)

4шт.

40

31-492

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

FITTING

1шт.

41

31-1355

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

Выбрано товаров: 43
