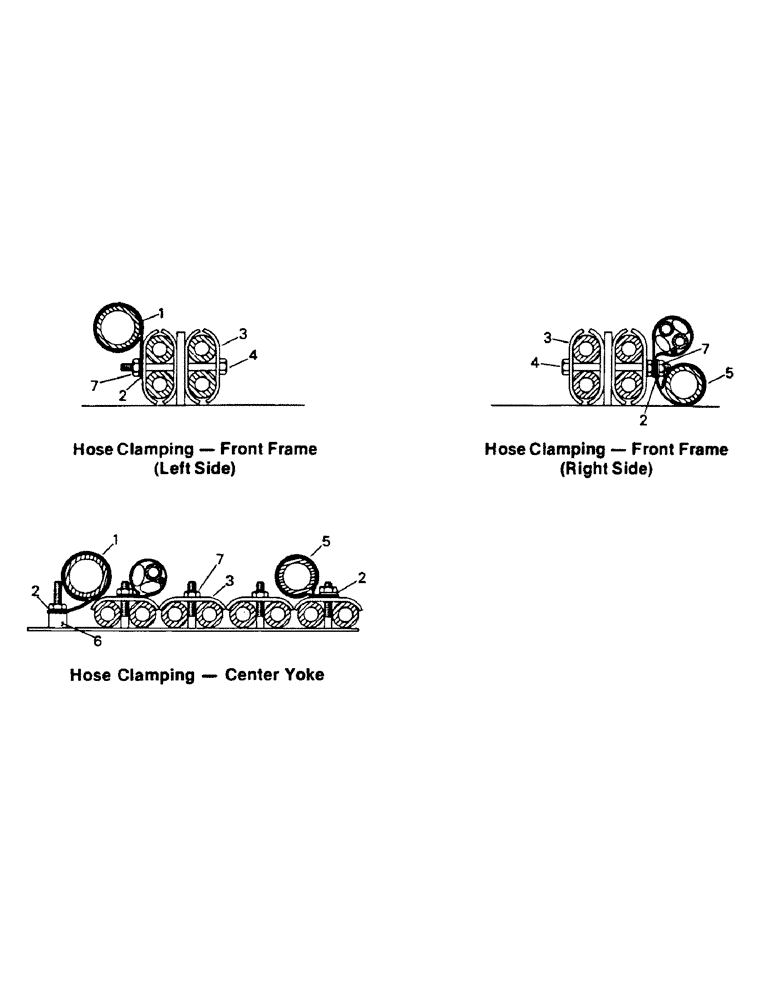

Запчасти Case IH PT270 (11-57) - HYDRAULIC HOSE MOUNTING, WITH DEPTH CONTROL Options & Miscellaneous

1

31-1349

MOUNTING CLIP

CLAMP

2шт.

2

19-105

WASHER,1/4", SAE

1/4

4шт.

Quantity will vary depending on control valve. Quantities shown are for the 4-spool control valve

1шт.

A recent change was made to the mounting clamps and hardware whichincreased thew size of the hardware fron 1/4" to 3/8". Be sure to check which size is on your particular model befor ordering parts

1шт.

19-107

WASHER

3/8

4шт.

A recent change was made to the mounting clamps and hardware whichincreased thew size of the hardware fron 1/4" to 3/8". Be sure to check which size is on your particular model befor ordering parts

1шт.

3

32-1000

CLAMP

(used with 1/4" hardware only)

12шт.

Quantity will vary depending on control valve. Quantities shown are for the 4-spool control valve

1шт.

2-4183T1

CLAMP

(used with 3/8" hardware only)

12шт.

4

189293

BOLT,Hex, 1/4" - 20 x 3 1/2", Gr 5

CAPSCREW, 1/4 x 3-1/2 UNC

2шт.

Quantity will vary depending on control valve. Quantities shown are for the 4-spool control valve

1шт.

19-298

BOLT,Hex, 3/8" - 16 x 3.25", Gr 5

CAPSCREW, 3/8 x 3-1/4 UNC

2шт.

19-21

BOLT,Hex, 3/8" - 16 x 2", Gr 5

CAPSCREW, 3/8 x 2 UNC

2шт.

5

31-1348

CLAMP

2шт.

6

5-306

SPACER

2шт.

Quantity will vary depending on control valve. Quantities shown are for the 4-spool control valve

1шт.

7

280129

NUT,1/4"-20

1/4 UNC

6шт.

Quantity will vary depending on control valve. Quantities shown are for the 4-spool control valve

1шт.

A recent change was made to the mounting clamps and hardware whichincreased thew size of the hardware fron 1/4" to 3/8". Be sure to check which size is on your particular model befor ordering parts

1шт.

232-4136

LOCK NUT,3/8"-16, GC

3/8 UNC

6шт.

A recent change was made to the mounting clamps and hardware whichincreased thew size of the hardware fron 1/4" to 3/8". Be sure to check which size is on your particular model befor ordering parts

1шт.
