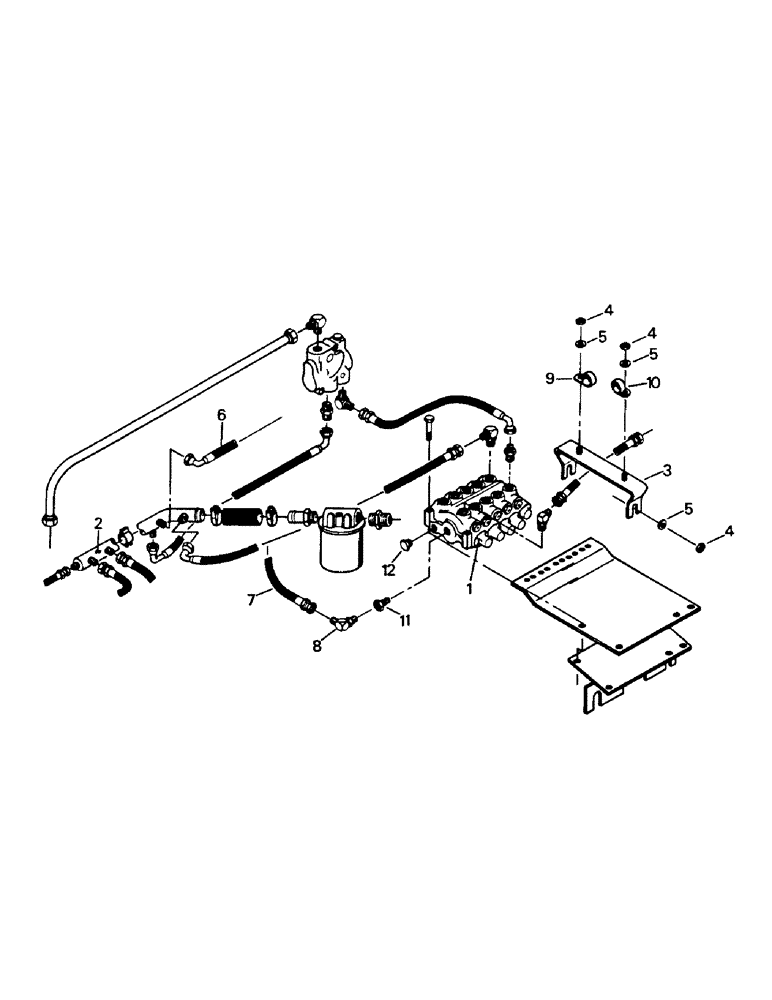

Запчасти Case IH PT270 (11-56) - DEPTH CONTROL HYDRAULICS, CAB SIDE Options & Miscellaneous

1

1-8605

CONTROL VALVE

1шт.

For the P/N's of the parts shown in this illustration with no reference numbers, check figures 8-2 to 8-7.

1шт.

2

2-1012

TUBE, return 0.84" ID, 1.5" OD

1шт.

3

1-8591T1

BRACKET

hose

1шт.

4

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC

4шт.

5

19-107

WASHER

3/8

4шт.

6

31-1436

HOSE ASSEMBLY

1шт.

7

31-1437

HOSE ASSEMBLY

1шт.

8

31-396

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

1шт.

9

31-1348

CLAMP

1шт.

10

31-1349

MOUNTING CLIP

CLAMP

1шт.

11

18-1134

FITTING

(12)

1шт.

12

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

1шт.
