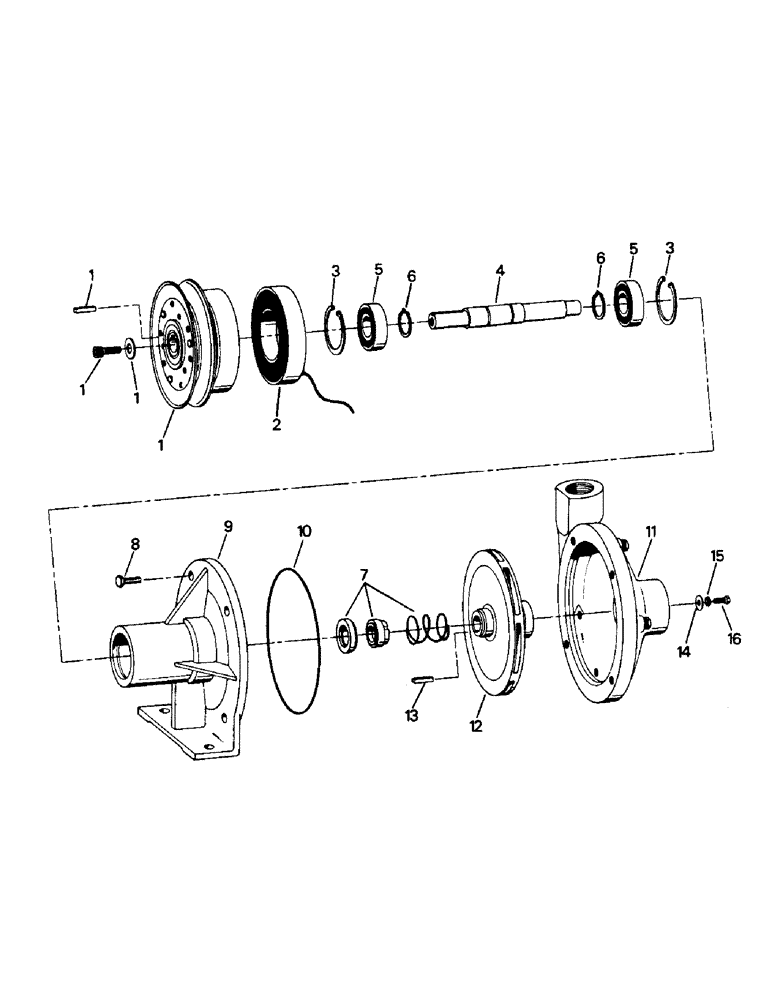

Запчасти Case IH PT270 (11-49) - SPRAYER PUMP ASSEMBLY Options & Miscellaneous

1-2219

PUMP

SPRAYER PUMP ASSEMBLY, consists of ref. nos. 1-16

1шт.

1

16-1477

PULLEY

clutch drive

1шт.

2

16-1474

COIL

RING

1шт.

3

16-1470

RING, SNAP

RING, retainer

2шт.

4

16-1473

SHAFT

pump

1шт.

5

16-1472

BEARING

2шт.

6

16-1471

RING

retainer

2шт.

7

16-1475

SEAL KIT

SEAL KIT

1шт.

8

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 x 3/4 UNC

4шт.

9

16-1478

HOUSING, impeller

1шт.

10

16-1480

O-RING

1шт.

11

16-1476

VOLUTE

1шт.

12

16-1479

IMPELLER

1шт.

13

19-878

KEY

1шт.

14

19-700

WASHER,5/16"

3/8

1шт.

15

19-116

LOCK WASHER,5/16"

5/16"

1шт.

16

19-361

CAPSCREW, 5/16 x 1/2 UNF

1шт.
