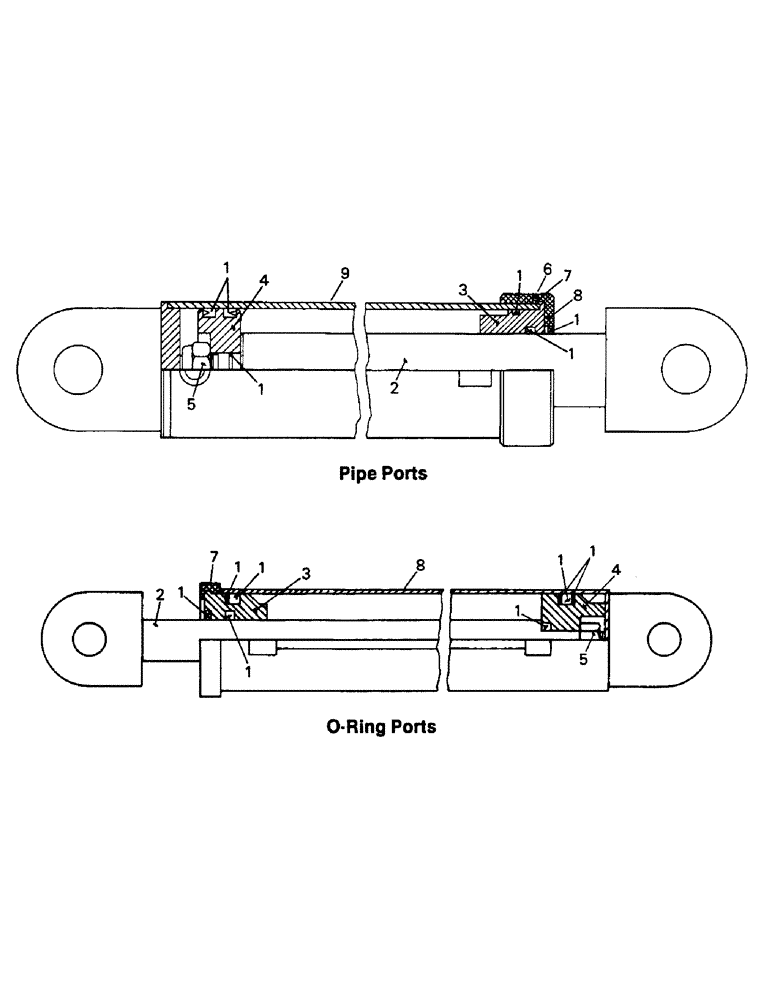

Запчасти Case IH PT270 (11-44) - DAKOTA UTILTIY BLADE, ANGLE CYLINDER Options & Miscellaneous

2-3529T91

CYLINDER ASSEMBLY (pipe ports), consists of ref. nos. 1-9

1шт.

1

2-3528T1

SEAL KIT

1шт.

2

2-3523T1

ROD

1шт.

3

2-3524T1

ROD GUIDE

1шт.

4

2-3522T1

PISTON

1шт.

5

2-3521T1

NUT

1шт.

6

2-3527T1

SET SCREW

1шт.

7

2-3526T1

NYLON PLUG

1шт.

8

2-3525T1

CAP

1шт.

9

NSS

NOT SOLD SEPARAT

SHELL

1шт.

2-3275T91

CYLINDER ASSEMBLY (o-ring ports), consists of ref. nos. 1-8

1шт.

1

2-3535T1

SEAL KIT

1шт.

2

2-3583T1

ROD

1шт.

3

2-3579T1

ROD GUIDE

1шт.

4

2-3580T1

PISTON

1шт.

5

2-3578T1

NUT

1шт.

6

2-3582T1

CLEVIS (not shown)

1шт.

7

2-3581T1

COLLAR

1шт.

8

NSS

NOT SOLD SEPARAT

SHELL

1шт.
