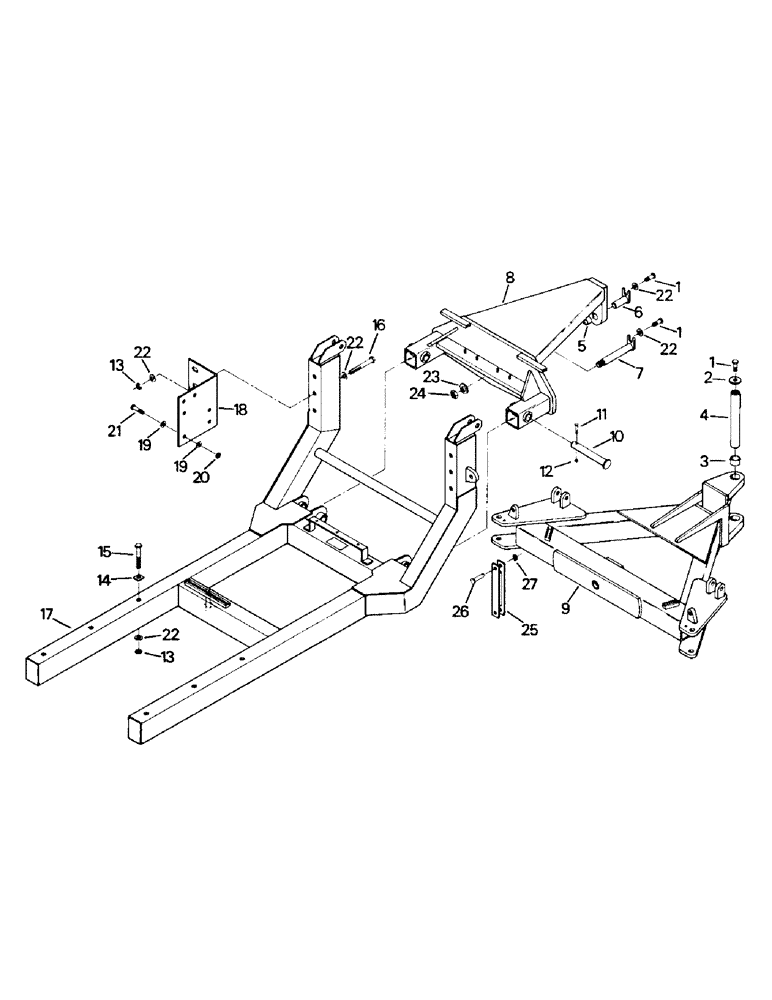

Запчасти Case IH PT270 (11-36) - MODEL 616 & 618, UTILITY BLADE FRAME Options & Miscellaneous

1

19-5490

BOLT,Hex, 1" - 8 x 1 1/2", Gr 5

CAPSCREW, 1 x 1-1/2 UNC

4шт.

2

19-5587

WASHER

2шт.

3

1-8311

BUSHING

2шт.

4

1-8862

PIN

1шт.

5

1-8847

BUSHING

1шт.

6

1-8857

PIN

1шт.

7

1-8860

PIN

1шт.

8

1-8863T1

HINGE, upper

1шт.

9

1-8864

HINGE, lower

1шт.

10

38-851

PIVOT PIN

2шт.

11

19-279

BOLT,Hex, 3/8" - 16 x 3", Gr 5

CAPSCREW, 3/8 x 3 UNC

2шт.

12

232-4136

LOCK NUT,3/8"-16, GC

3/8 UNC

2шт.

13

19-610

NUT,1"-8, G5

1 UNC

12шт.

14

2-3753T1

SPACER

6шт.

15

19-841

BOLT,Hex, 1" - 8 x 9", Gr 8

CAPSCREW, 1 x 9 UNC

6шт.

16

19-1120

BOLT,1" - 8 x 8", Gr 8

CAPSCREW, 1 x 8 UNC

6шт.

17

2-2421

FUNNEL

FRAME

1шт.

18

2-3747T1

BRACKET

SIDE ATTACHMENT (right)

1шт.

2-3748T1

BRACKET

SIDE ATTACHMENT (left)

1шт.

19

19-2975

WASHER

7/8

24шт.

20

19-457

NUT,7/8"-9, G5

7/8 UNC

12шт.

21

19-420

BOLT,7/8" - 9 x 3", Gr 8

CAPSCREW, 7/8 x 3 UNC

12шт.

22

19-407

WASHER, 1-1/8

20шт.

23

19-114

WASHER,1 1/2"

1-1/2

1шт.

24

19-835

NUT, 1-1/2 UNC

1шт.

25

1-7800

LINK

transport

2шт.

26

1-7803

PIN

4шт.

27

19-345

PIN

KLICK PIN

4шт.
