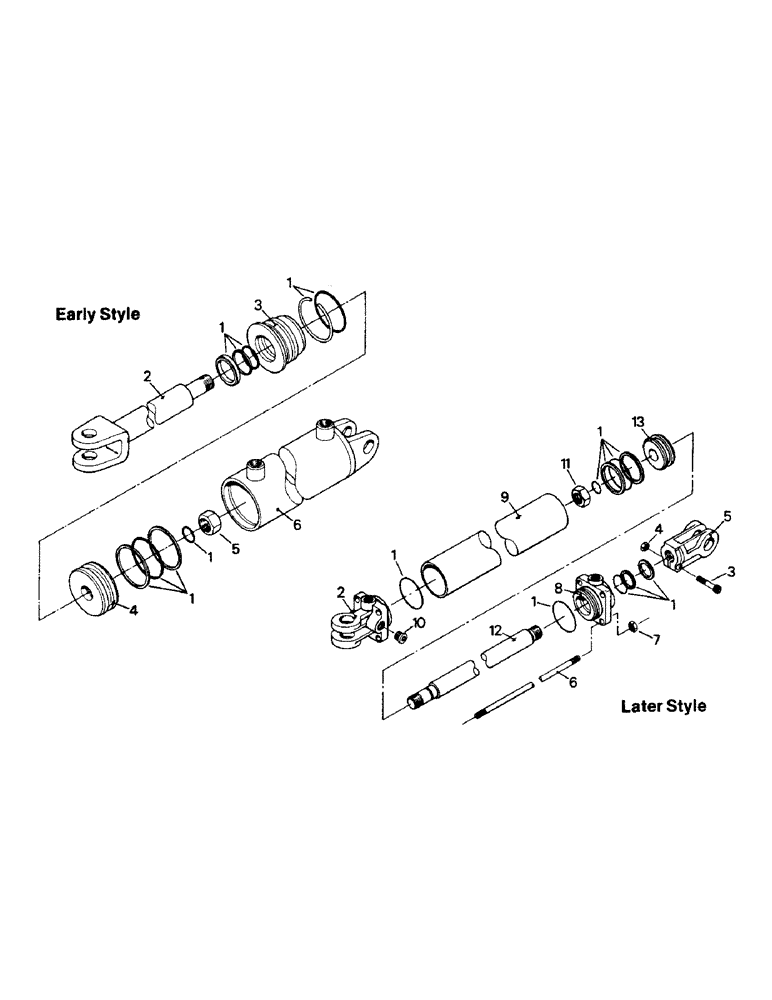

Запчасти Case IH PT270 (11-34) - MODEL 603 & 606, UTILITY BLADE LIFT CYLINDER Options & Miscellaneous

1-5926

CYLINDER

ASSEMBLY (early style), consists of ref. nos. 1-6

1шт.

The tie bolt style clinder assembly (later style) is an alternatre lift cylinder that is used on some Model 603 & 606 utility blades. Either style may be used; however, they must be used in matched pairs and cannot be intermixed.

1шт.

1

50-1100T91

SEAL KIT

SEAL KIT

1шт.

2

50-1098T1

ROD

1шт.

3

50-1095T1

ROD GUIDE

1шт.

4

50-1096T1

PISTON

1шт.

5

50-1099T1

LOCK NUT

1шт.

6

50-1097T1

SHELL

1шт.

2-4398T91

CYLINDER ASSEMBLY (later style), consists of ref. nos. 1-13

1шт.

The tie bolt style clinder assembly (later style) is an alternatre lift cylinder that is used on some Model 603 & 606 utility blades. Either style may be used; however, they must be used in matched pairs and cannot be intermixed.

1шт.

1

2-4628T1

KIT

SEAL KIT

1шт.

2

2-4629T1

YOKE, base

1шт.

3

2-4630T1

CAPSCREW

1шт.

4

2-4631T1

NUT

1шт.

5

2-4632T1

YOKE

rod end

1шт.

6

2-4633T1

STUD

4шт.

7

2-4634T1

NUT

8шт.

8

2-4635T1

END CAP

1шт.

9

2-4636T1

SHELL

1шт.

10

2-4637T1

PLUG

1шт.

11

2-4638T1

NUT

LOCK NUT

1шт.

12

2-4639T1

ROD

1шт.

13

2-4640T1

PISTON

1шт.
