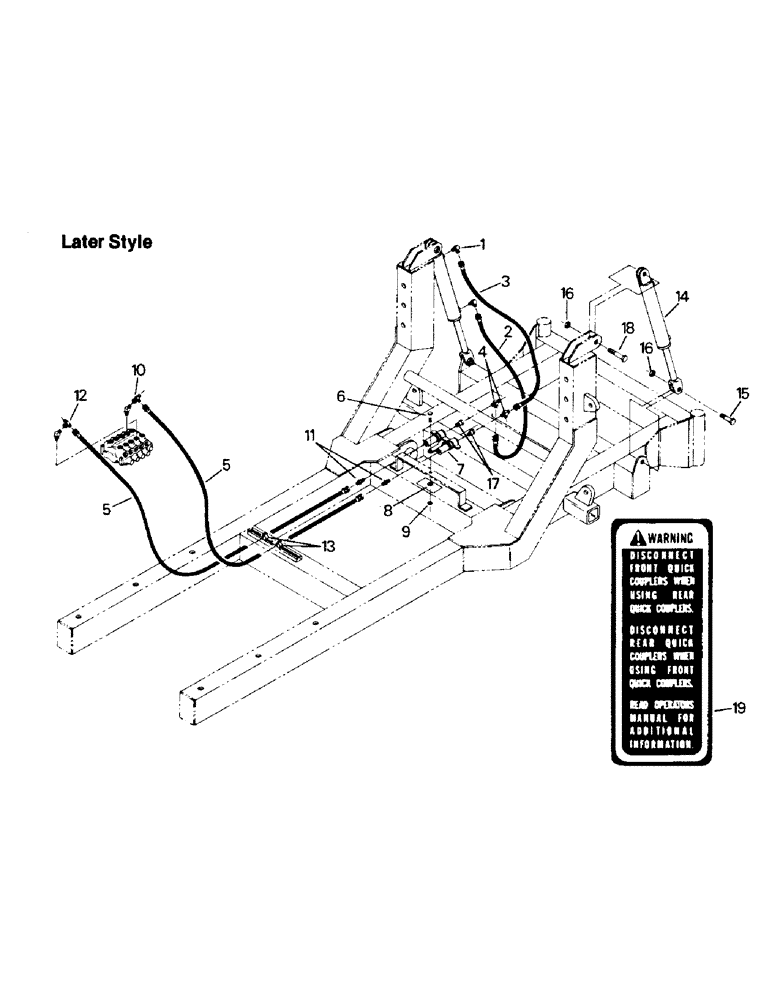

Запчасти Case IH PT270 (11-33) - MODEL 603 & 606, UTILITY BLADE HYDRAULICS Options & Miscellaneous

1

31-321

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-14, NPTF

4шт.

2

18-544

HOSE

ASSEMBLY

2шт.

3

31-1234

HOSE

ASSEMBLY

2шт.

4

31-322

TEE,3/4"-16, 37 Degree x 1/2"-14, NPTF Run

2шт.

5

31-1539

HOSE

ASSEMBLY

2шт.

6

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW, 1/2 x 1-1/2 UNC

1шт.

7

1-7135

COUPLING

HYDRAULIC COUPLER

1шт.

8

19-961

WASHER,17/32" x 1 1/2" x 1/8"

2шт.

9

19-82

LOCK NUT

LOCK NUT, 1/2 UNC

1шт.

10

31-1355

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

11

31-330

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

FITTING (10)

2шт.

12

31-492

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

1шт.

13

31-1187

CLAMP

2шт.

14

1-5926

CYLINDER

HYDRAULIC LIFT CYLINDER

2шт.

The tie bolt style cylinder assembly (P/N 02-4398T91) is an alternate lift cylinder that is used on the Model 603 & 606 utility blades. Either cylinder may be used; however, they must be used in matched pairs and cannot be intermixed.

1шт.

2-4398T91

HYDRAULIC LIFT CYLINDER (see fig. 11-34)

1шт.

15

223489

BOLT,Hex, 1" - 8 x 3 1/2", Gr 8

CAPSCREW, 1 x 3-1/2 UNC

2шт.

16

19-375

LOCK NUT,1" - 8, GB

1 UNC

4шт.

17

1-7141

FITTING

MALE TIP ASSEMBLY

2шт.

1-7142

CAP

DUST CAP (for male tip assembly, not shown)

2шт.

18

19-5404

BOLT,Hex, 1" - 8 x 5.50", Gr 8

CAPSCREW, 1 x 5-1/2 UNC

2шт.

19

2-2401

DECAL, Dozer

3шт.

19-135

CABLE TIE

TY RAP (not shown)

4шт.
