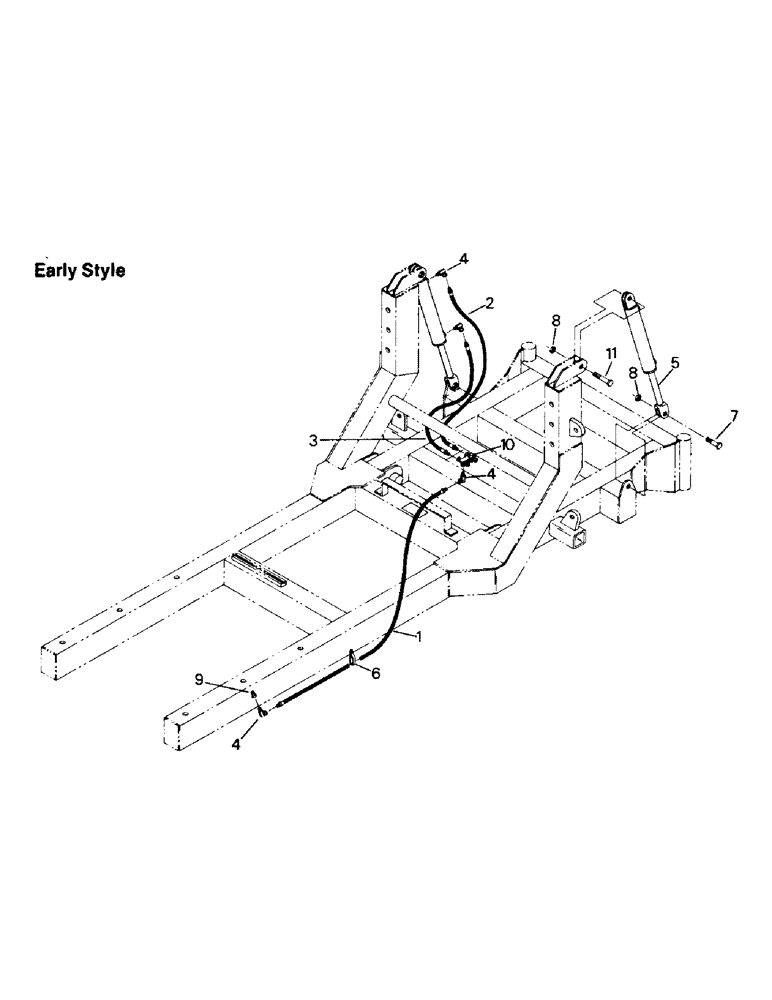

Запчасти Case IH PT270 (11-32) - MODEL 603 & 606, UTILITY BLADE HYDRAULICS Options & Miscellaneous

1

38-861

HOSE ASSEMBLY

2шт.

2

38-862

HOSE ASSEMBLY

2шт.

3

32-222

HOSE

ASSEMBLY

2шт.

4

31-381

ELBOW

8шт.

5

1-5926

CYLINDER

HYDRAULIC LIFT CYLINDER

2шт.

The tie bolt style cylinder assembly (P/N 02-4398T91) is an alternate lift cylinder that may be used on the Model 603 & 606 utility blades. Either cylinder may be used; however, they must be used in matched pairs and cannot be intermixed.

1шт.

2-4398T91

HYDRAULIC LIFT CYLINDER (see fig. 11-34)

1шт.

6

31-1021

CLAMP

2шт.

7

223489

BOLT,Hex, 1" - 8 x 3 1/2", Gr 8

CAPSCREW, 1 x 3-1/2 UNC (replaces pin P/N 9422063 on later models)

2шт.

Capscrew P/N 223489 is now being used on the bottom cylinder mount even though the pin (P/N 9422063) will still fit there.

1шт.

9422063

PIN (see note) 1" x 2.410'"

2шт.

Capscrew P/N 223489 is now being used on the bottom cylinder mount even though the pin (P/N 9422063) will still fit there.

1шт.

8

19-375

LOCK NUT,1" - 8, GB

1 UNC (qty. 2 on early models)

4шт.

38-854

HAIRPIN (used with pin P/N 9422063 on early models)

2шт.

9

18-1653

TIP

MALE TIP ASSEMBLY

2шт.

18-1729

TIP

DUST CAP (for male tip assembly, not shown)

2шт.

10

1-5928

COUPLER ASSEMBLY

1шт.

11

19-5404

BOLT,Hex, 1" - 8 x 5.50", Gr 8

CAPSCREW, 1 x 5-1/2 UNC

2шт.

19-135

CABLE TIE

TY RAP (not shown)

4шт.
