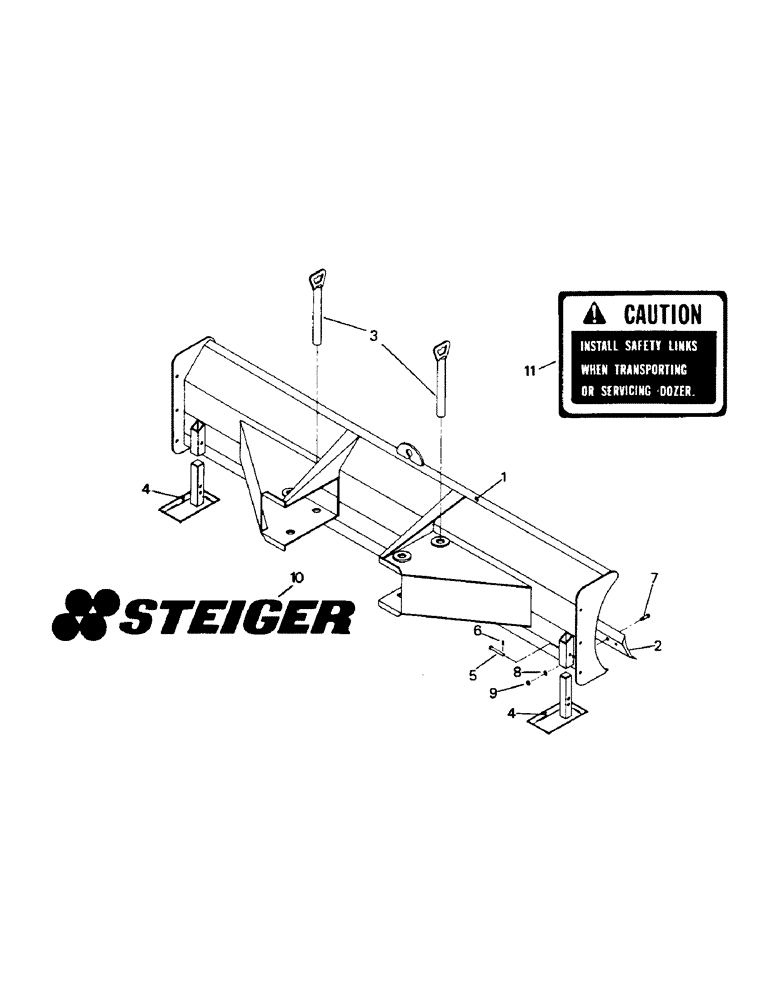

Запчасти Case IH PT270 (11-30) - MODEL 603 & 606, UTILITY BLADE ASSEMBLY Options & Miscellaneous

1-6819T91

BLADE ASSEMBLY (12') (includes shoe P/N 01-9414), consists of ref. nos. 1-11

1шт.

1-9156T91

BLADE ASSEMBLY (14'), consists of ref. nos. 1-11

1шт.

1

NAP

BLADE (12') (used with shoe P/N 38-349)

1шт.

The blade used with 3" shoe P/N 38-849 is no longer available. If you have the early style 3" shoe and wish to order a new blade, you must order new shoe P/N 01-9414 to assure proper operation.

1шт.

38-842T1

BLADE (12') (used with shoe P/N 01-9414)

1шт.

1-8771T1

BLADE (14')

1шт.

2

38-841

EDGE

CUTTING EDGE (12')

2шт.

1-9198

EDGE

CUTTING EDGE (14')

1шт.

3

38-850

BLADE PIN

2шт.

4

38-849

SHOE (3" sq. tube)

2шт.

The blade used with 3" shoe P/N 38-849 is no longer available. If you have the early style 3" shoe and wish to order a new blade, you must order new shoe P/N 01-9414 to assure proper operation.

1шт.

1-9414

SHOE (4" sq. tube)

1шт.

5

19-934

PIN

CLEVIS PIN (used with shoe P/N 38-849)

2шт.

19-5567

CLEVIS PIN (used with shoe P/N 01-9414 on some early models) 1" x 5 1/4'"

1шт.

19-414

BOLT,Hex, 1" - 14 x 6", Gr 5

CAPSCREW, 1 x 6 UNF (used with shoe P/N 01-9414 on later models)

1шт.

6

19-5399

PIN

HAIR PIN (used with clevis pin P/N 19-934 & P/N 19-5567)

2шт.

19-98

NUT,1"-14, G5

1 UNF (used with capscrew P/N 19-414)

2шт.

7

19-5397

BOLT

PLOW BOLT, 5/8 x 1-3/4 UNC (qty. 18 on 14' blade)

16шт.

8

19-120

LOCK WASHER,5/8"

(qty. 18 on 14' blade) 5/8"

16шт.

9

451411

NUT, 5/8 UNC (qty. 18 on 14' blade)

16шт.

10

26-238

DECAL

Steiger (small)

4шт.

11

1-6672

DECAL, Dozer safety

2шт.
