Запчасти Case IH PT270 (11-29) - PT ELECTRIC DECELERATOR WIRING Options & Miscellaneous

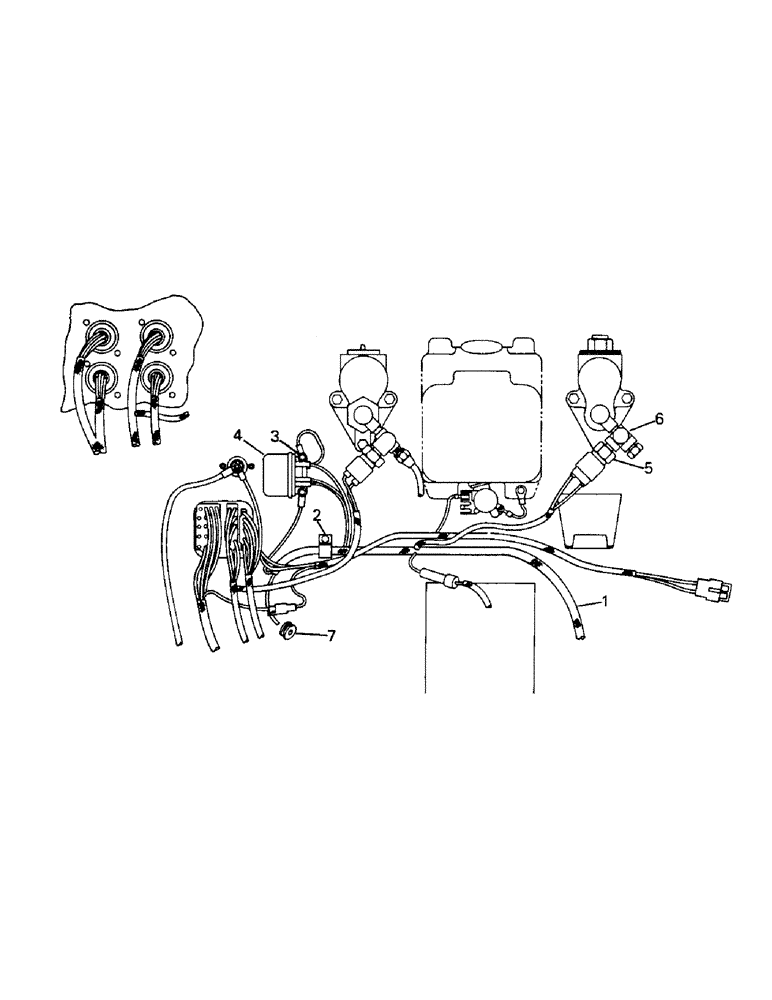

Схема запчастей Case IH PT270 - (11-29) - PT ELECTRIC DECELERATOR WIRING Options & Miscellaneous
2
3
1
7
5
6
4

Артикул

Название

Примечание

Количество

35-1276T91

KIT

decelerator wiring (includes wire harness P/N 20-1208T1) consists of ref. nos. 1-7

1шт.

1

20-1208T1

HARNESS

WIRE HARNESS, decelerator (included in kit)

1шт.

20-1214T1

HARNESS

WIRE HARNESS, decelerator

1шт.

Wire harness P/N 20-1208T1 is used only on early models with the slave solenoid (P/N 06-1496) mounted on the starter. The later models with the slave solenoid mounted on the front of the cab use Wire Harness P/N 20-1214T1 which is not included in the kit.

1шт.

2

32-303

CLIP

1шт.

3

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW, tapping, 1/4 x 3/4 UNC

2шт.

4

SEENOTE2

RELAY

1шт.

Service relay (Ref. 4) with sealed relay 20-2133T1 and relay adapter kit 35-1578T91.

1шт.

5

22-729

SWITCH

1шт.

6

31-1353

TEE,1/8"-27 Female x 1/8"-27 Male Run

1шт.

7

22-475

GROMMET

1шт.

Выбрано товаров: 11
