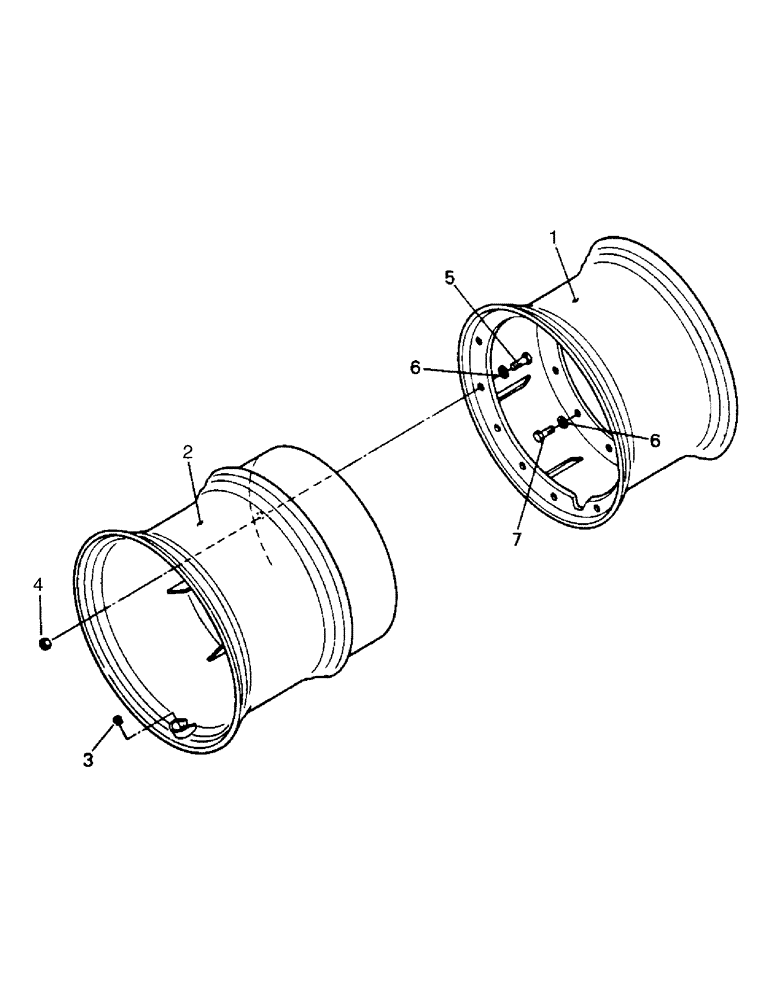

Запчасти Case IH PT270 (11-17[1]) - DUAL WHEELS Options & Miscellaneous

1

30-1189T1

RIM

23.1 x 34 (20")

1шт.

Some tractors, especially in NW states mat have wider than normal rims. Tires are normally mounted on a rim that is 2" or 3" narrower than their size, but in some cases a rim was used that is the same width. Be sure to check width before ordering.

1шт.

30-1056T2

RIM

23.1 x 34 (20"), reinforced bead

1шт.

Some tractors, especially in NW states mat have wider than normal rims. Tires are normally mounted on a rim that is 2" or 3" narrower than their size, but in some cases a rim was used that is the same width. Be sure to check width before ordering.

1шт.

30-1190T1

RIM

24.5 x 32 (21")

1шт.

2-2102T2

RIM

24.5 x 32 (21"), reinforced bead

1шт.

30-1223T1

RIM

24.5 x 32 (24")

1шт.

30-1221T1

RIM

24.5 x 32 (24"), reinforced bead

1шт.

2

30-1191T1

RIM

23.1 x 34 (20", standard 8"

1шт.

30-1051T1

RIM

23.1 x 34 (20"), standard 8", reinforced bead

1шт.

30-1192T1

RIM

24.5 x 32 (21"), standard 8"

1шт.

30-1193T1

RIM

24.5 x 32 (21"), narrow 4"

1шт.

30-1032T1

RIM

24.5 x 32 (21"), standard 8", reinforced bead

1шт.

2-2434T2

RIM

24.5 x 32 (21"), narrow 4" , reinforced bead

1шт.

30-1217T1

RIM

24.5 x 32 (24"), standard 8"

1шт.

30-1222T1

RIM

24.5 x 32 (24"), narrow 4"

1шт.

30-1215T1

RIM

24.5 x 32 (24"), standard 8", reinforced bead

1шт.

30-1216T1

RIM

24.5 x 32 (24"), narrow 4" , reinforced bead

1шт.

3

22-521

PLUG

4шт.

4

19-457

NUT,7/8"-9, G5

7/8 UNC

48шт.

5

19-420

BOLT,7/8" - 9 x 3", Gr 8

CAPSCREW, 7/8 UNC x 3

48шт.

6

19-2975

WASHER

136шт.

7

223470

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

LUG BOLT, 7/8 UNC x 2-1/2

40шт.
