Запчасти Case IH PT270 (11-08) - WINDOW WASHER Options & Miscellaneous

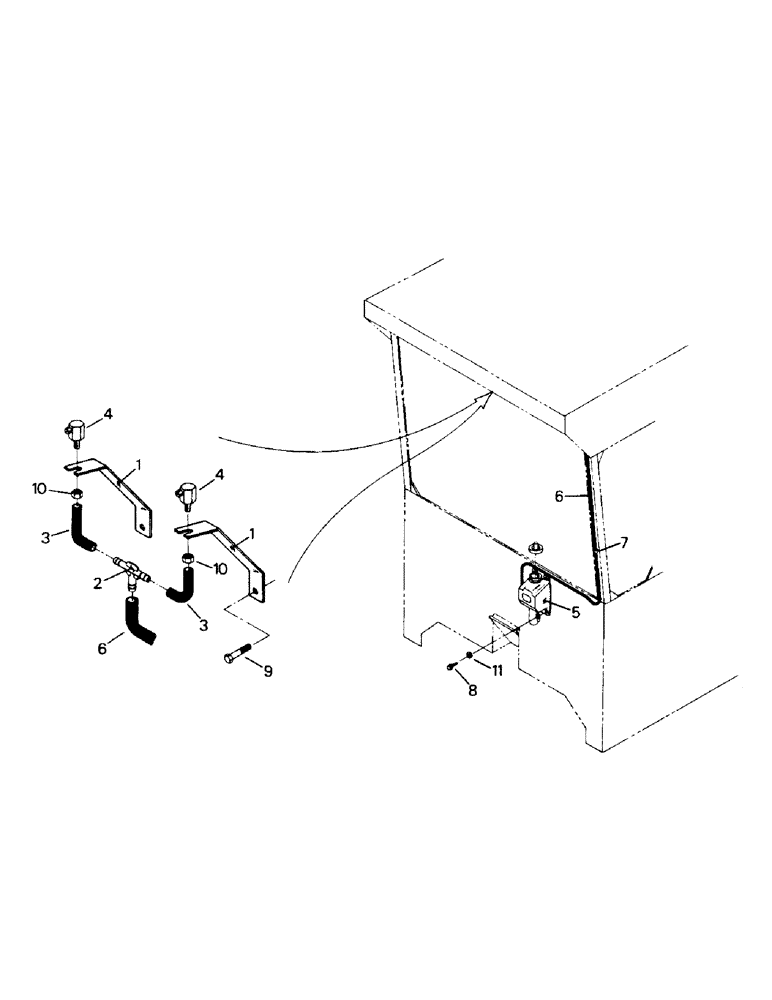

Схема запчастей Case IH PT270 - (11-08) - WINDOW WASHER Options & Miscellaneous
3
7
11
1
1
8
4
5
2
6
10
3
10
6
4
9

Артикул

Название

Примечание

Количество

35-1020

KIT

WINDOW WASHER KIT, consists of ref. nos. 1-11

1шт.

1

4-1002

BRACKET

nozzle

2шт.

2

1-1344

KIT

FITTING, tee (included with ref. 4)

1шт.

3

31-1194

WASHER

HOSE

2шт.

4

1-1345

KIT

NOZZLE (incl. ref. 2 & 10)

2шт.

5

1-1346

RESERVOIR ASSY.

CONTAINER

1шт.

6

31-1195

TUBE,94" Length

HOSE

1шт.

7

1-2135

CLIP

10шт.

8

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW, tapping, 1/4 x 3/4 UNC

3шт.

9

19-1048

CAPSCREW, 1/4 x 1-1/2 UNF Hex, 1/4"-28 x 1 1/2", G5

2шт.

10

19-236

JAM NUT,5/16" - 24, Gr 5

JAM NUT, 5/16 UNF (included with ref. 4)

2шт.

11

19-195

WASHER,#10

3/8 (used on some early models only)

3шт.

1-2172

FLUID

WINDOW WASHER FLUID (32 oz.) (not shown)

1шт.

Выбрано товаров: 13
