Запчасти Case IH PT270 (11-07) - 3-PT HYDRAULICS Options & Miscellaneous

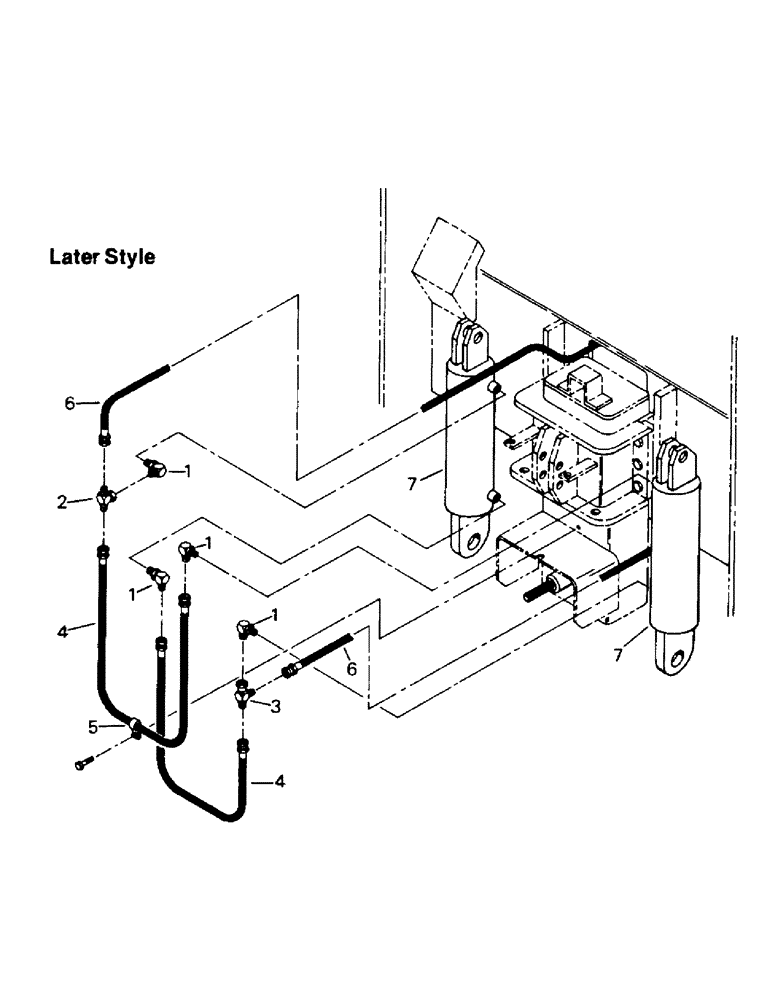

Схема запчастей Case IH PT270 - (11-07) - 3-PT HYDRAULICS Options & Miscellaneous
1
5
1
4
7
1
4
6
6
7
3
1
2

Артикул

Название

Примечание

Количество

1

31-324

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

(8)

4шт.

2

31-492

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

FITTING

1шт.

3

31-1355

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

FITTING

1шт.

4

18-1531

HOSE ASSY.

HOSE ASSEMBLY

2шт.

5

32-302

CLAMP,7/8", Insul, 3/8" Bolt

1шт.

6

31-1308

HOSE ASSY.

HOSE ASSEMBLY

2шт.

7

1-4194

CYLINDER

ASSEMBLY

2шт.

50-1058T91

CYLINDER

ASSEMBLY (see fig. 11-3)

1шт.

1-5974

CARTRIDGE

RELIEF VALVE, cylinder port (not shown)

1шт.

Выбрано товаров: 9
