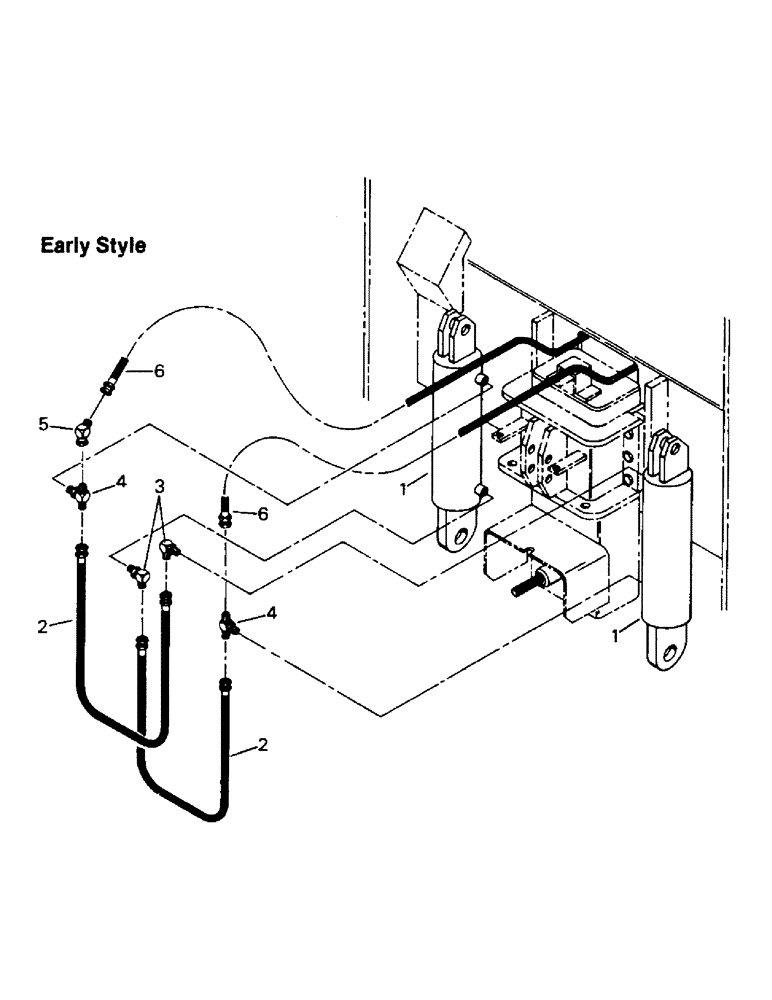

Запчасти Case IH PT270 (11-06) - 3-PT HITCH COMPONENTS Options & Miscellaneous

1

1-4194

CYLINDER

ASSEMBLY

2шт.

2

18-1531

HOSE ASSY.

HOSE ASSEMBLY

2шт.

3

31-324

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

(8)

2шт.

4

31-1072

TEE,3/4"-16, 37 Degree x 3/4"-16, O-Ring Br

FITTING (8)

2шт.

5

18-574

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

6

31-1308

HOSE ASSY.

HOSE ASSEMBLY

2шт.

1-5974

CARTRIDGE

RELIEF VALVE, cylinder port (not shown)

1шт.
