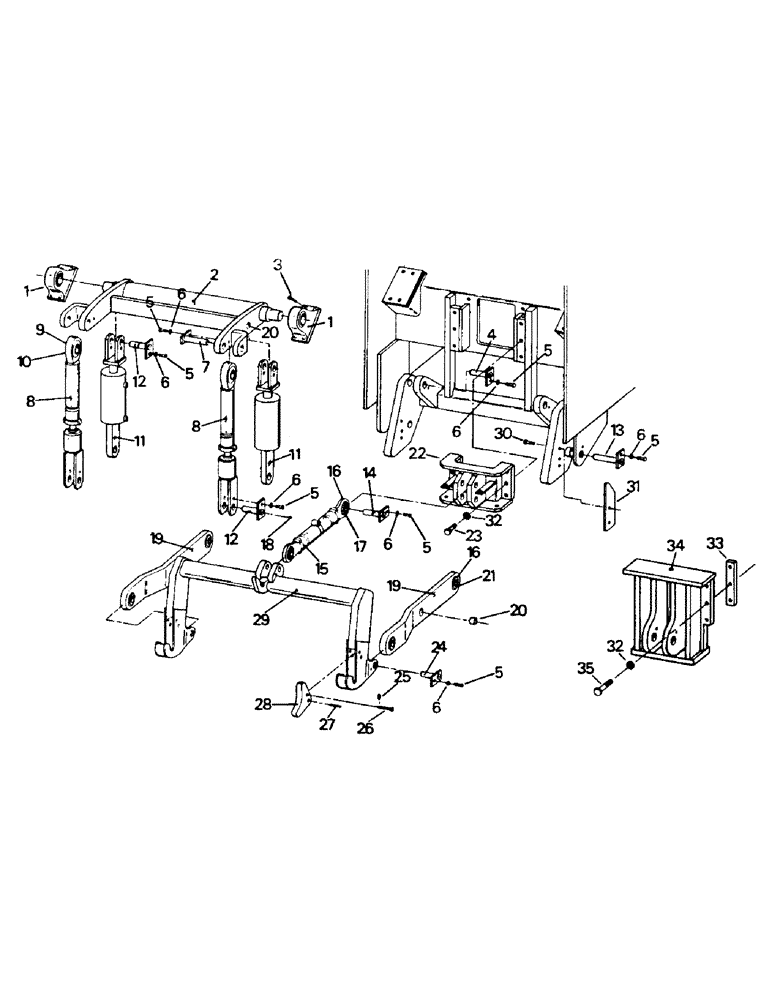

Запчасти Case IH PT270 (11-01) - THREE POINT HITCH Options & Miscellaneous

1

40-126

BLOCK

PILLOW BLOCK ASSEMBLY

2шт.

Rear Frame Reinforcing Kits: 35-1180 (w/PTO) & 35-1181 (w/o PTO) (Use on tractors BSN that already have a 3-pt hitch installed) 35-1374T91 (w/PTO) & 35-1373T91 (w/o PTO) (Use on tractors BSN that are field installing a 3-pt hitch) (See page 11-A for S/N breaks) Three Point Hitch Kits: 35-1371T91 (w/PTO) & 35-1124T91 (w/o PTO) (Early style w/40-126 pillow blocks) 35-1372T91 (w/PTO) & 35-1125T91 (w/o PTO) (later style w/01-4855T2 pillow blocks) (B) - Superseded - Old P/N can be used for all models, but orde

1шт.

1-4855T2

BLOCK

PILLOW BLOCK ASSEMBLY

1шт.

Rear Frame Reinforcing Kits: 35-1180 (w/PTO) & 35-1181 (w/o PTO) (Use on tractors BSN that already have a 3-pt hitch installed) 35-1374T91 (w/PTO) & 35-1373T91 (w/o PTO) (Use on tractors BSN that are field installing a 3-pt hitch) (See page 11-A for S/N breaks) Three Point Hitch Kits: 35-1371T91 (w/PTO) & 35-1124T91 (w/o PTO) (Early style w/40-126 pillow blocks) 35-1372T91 (w/PTO) & 35-1125T91 (w/o PTO) (later style w/01-4855T2 pillow blocks) (B) - Superseded - Old P/N can be used for all models, but orde

1шт.

(01-4855) & (01-4855T1)

1шт.

Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted. (D) - Superseded - Old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

2

70-1841T91

NO LONGER SERVICED

ROCKER SHAFT (replaces p/n 01-5661)

1шт.

Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted. (D) - Superseded - Old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

3

19-59

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

CAPSCREW, 5/8 x 1-1/2 UNC

8шт.

19-5426

SCREW,Hex, 7/8" - 9 x 2 3/4", Gr 8

CAPSCREW, 7/8 x 2-3/4 UNC

1шт.

4

40-382

PIN

2шт.

5

19-675

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

CAPSCREW, 5/8 x 1-1/4 UNC

14шт.

6

19-111

WASHER,5/8"

5/8

14шт.

7

40-440

PIN

2шт.

THE PIN MEASURES 5.25"

1шт.

8

40-373T91

ARM ASSY.

ADJUSTING ARM ASSEMBLY

2шт.

9

40-139

HOUSING

UNIBALL HOUSING

4шт.

10

40-141

UNIBALL

2шт.

11

1-4194

CYLINDER

ASSEMBLY

2шт.

50-1058T91

CYLINDER

ASSEMBLY (see fig. 11-2)

1шт.

12

40-430

PIN

4шт.

THE PIN MEASURES 3.50"

1шт.

13

40-380

PIN

2шт.

THE PIN MEASURES 5.88"

1шт.

14

40-432

PIN

2шт.

THE PIN MEASURES 4.13"

1шт.

15

2-1747

LINK

CENTER LINK ASSEMBLY (replaces P/N 01-4272)

1шт.

Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted. (D) - Superseded - Old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

70-1836T91

UPPER LINK

CENTER LINK ASSEMBLY (see fig. 11-4)

1шт.

16

40-106

HOUSING

UNIBALL HOUSING

12шт.

17

40-105

BEARING

UNIBALL

2шт.

18

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, (Used on adjusting arm assy, center link assy & pillow block assy only) 1/8"-27 x .66 lg

18шт.

31-95

FITTING

ZERK (used only on pin P/N 40-430)

4шт.

19

40-145T1

LINK

Lower Link Assembly

2шт.

20

15-21

RING RACE

BUSHING

4шт.

21

40-302

LINK

UNIBALL

4шт.

22

2-1635

CENTER LINK MOUNT (with PTO option)

1шт.

23

223470

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

CAPSCREW, 7/8 x 2-1/2 UNC (with PTO option)

6шт.

24

40-438

PIN

2шт.

25

19-358

PIN

HAIRPIN

2шт.

26

19-257

CLEVIS PIN,1/2" x 3"

PIN, 1/2 x 3 cornpicker

2шт.

27

9411887

PIN,1/2" x 2 1/2", Coiled

2шт.

28

40-504

HANDLE

quick hitch

2шт.

29

40-330T1

HITCH ASSY, TRAILER

QUICK HITCH

1шт.

30

19-767

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

CAPSCREW, 3/4 x 2-3/4 UNC

4шт.

31

1-4416

PLATE

WEAR PLATE

2шт.

32

19-2975

WASHER

7/8

6шт.

33

70-1538T1

SPACER (without PTO option)

2шт.

34

70-7537T1

CENTER LINK MOUNT (without PTO option)

1шт.

35

19-420

BOLT,7/8" - 9 x 3", Gr 8

CAPSCREW, 7/8 x 3 UNC (without PTO option)

6шт.
