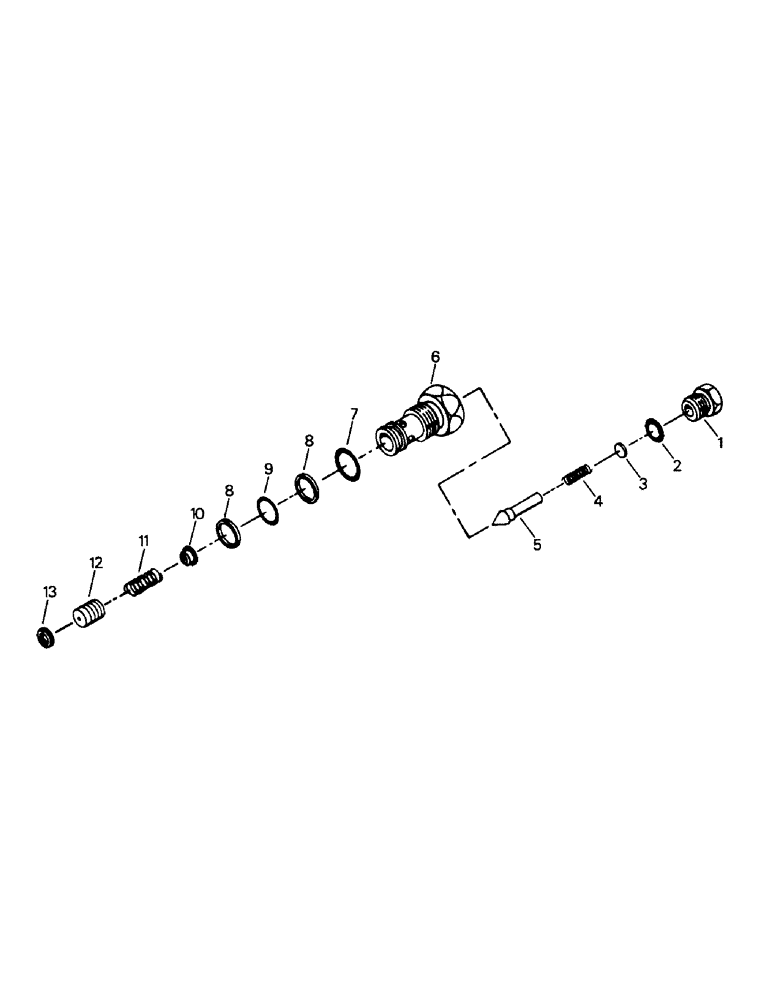

Запчасти Case IH PT270 (10-26) - LOW PRESSURE RELIEF VALVE CARTRIDGE Options & Miscellaneous

1-6293

HYDRAULIC VALVE

RELIEF VALVE ASSEMBLY (charge pump) consists of ref. nos. 1-13

1шт.

The difference between these two relief valve cartridges is the relief pressure setting. Relief valve P/N 01-6293 is set at 220 PSI while relief valve P/N 01-6301 is set at 160 PSI. These parts may be ordered separately but it is suggested that seal kit P/N 02-2361 be purchased instead of the individual parts.

1шт.

1-6301

VALVE, CHECK

RELIEF VALVE ASSEMBLY (valve block)

1шт.

The difference between these two relief valve cartridges is the relief pressure setting. Relief valve P/N 01-6293 is set at 220 PSI while relief valve P/N 01-6301 is set at 160 PSI. These parts may be ordered separately but it is suggested that seal kit P/N 02-2361 be purchased instead of the individual parts.

1шт.

2-2361

SEAL KIT (includes ref. 2, 7, 8, 9 & 13)

1шт.

1

1-6428

VALVE PLUG

1шт.

2

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

1шт.

The difference between these two relief valve cartridges is the relief pressure setting. Relief valve P/N 01-6293 is set at 220 PSI while relief valve P/N 01-6301 is set at 160 PSI. These parts may be ordered separately but it is suggested that seal kit P/N 02-2361 be purchased instead of the individual parts.

1шт.

3

1-6430

SHIM

1шт.

4

1-6431

SPRING

1шт.

5

1-6432

NEEDLE VALVE

1шт.

6

1-6433

HOUSING

1шт.

7

31-1100

O-RING,14-1, 90 Duro, 1.048" ID x .116"" Thk

1шт.

The difference between these two relief valve cartridges is the relief pressure setting. Relief valve P/N 01-6293 is set at 220 PSI while relief valve P/N 01-6301 is set at 160 PSI. These parts may be ordered separately but it is suggested that seal kit P/N 02-2361 be purchased instead of the individual parts.

1шт.

8

1-6417

RING

BACK-UP RING

2шт.

The difference between these two relief valve cartridges is the relief pressure setting. Relief valve P/N 01-6293 is set at 220 PSI while relief valve P/N 01-6301 is set at 160 PSI. These parts may be ordered separately but it is suggested that seal kit P/N 02-2361 be purchased instead of the individual parts.

1шт.

9

1-6416

O-RING

1шт.

The difference between these two relief valve cartridges is the relief pressure setting. Relief valve P/N 01-6293 is set at 220 PSI while relief valve P/N 01-6301 is set at 160 PSI. These parts may be ordered separately but it is suggested that seal kit P/N 02-2361 be purchased instead of the individual parts.

1шт.

10

2-6434

ORIFICE

1шт.

11

1-6435

SPRING

1шт.

12

1-6436

PISTON

1шт.

13

1-6437

RETAINING RING

1шт.

The difference between these two relief valve cartridges is the relief pressure setting. Relief valve P/N 01-6293 is set at 220 PSI while relief valve P/N 01-6301 is set at 160 PSI. These parts may be ordered separately but it is suggested that seal kit P/N 02-2361 be purchased instead of the individual parts.

1шт.
