(10-25) - VALVE BLOCK

Запчасти Case IH PT270 (10-25) - VALVE BLOCK Options & Miscellaneous

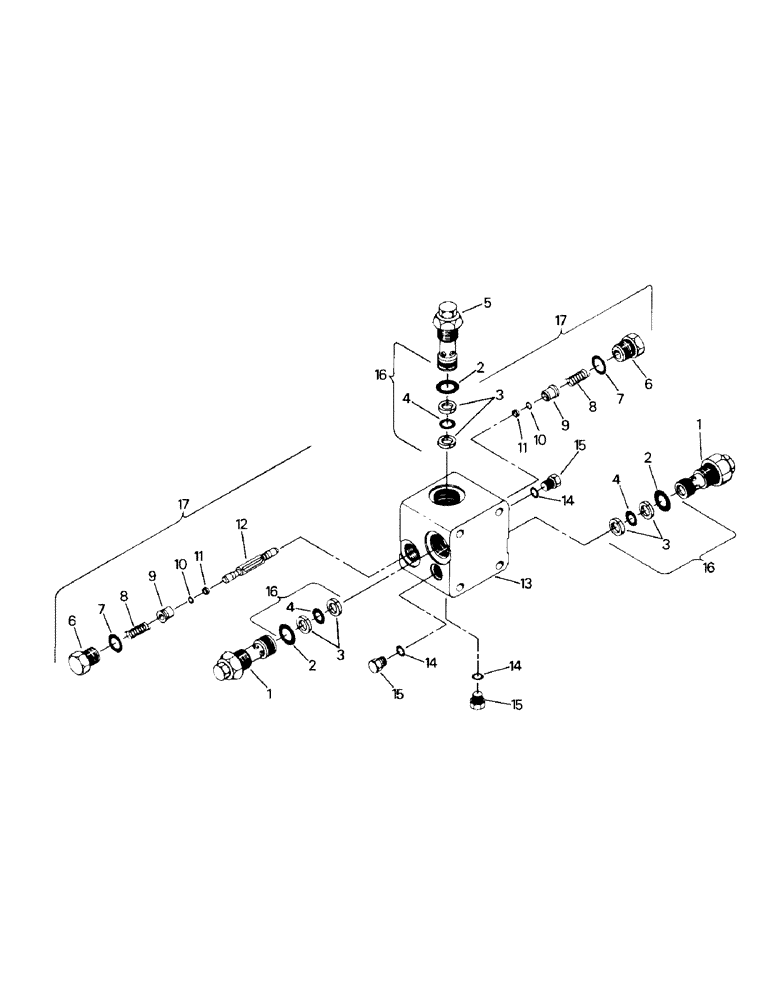

Схема запчастей Case IH PT270 - (10-25) - VALVE BLOCK Options & Miscellaneous
1
3
2
3
9
2
14
7
17
16
4
5
4
8
1
6
6
15
16
14
3
7
16
9
13
10
11
2
4
12
8
11
15
14
15
10
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1-6651

VALVE BLOCK ASSEMBLY, consists of ref. nos. 1-15

1шт.

1

1-6302

RELIEF VALVE (includes ref. 16)

1шт.

2

31-1100

O-RING,14-1, 90 Duro, 1.048" ID x .116"" Thk

3шт.

Motor seal overhaul kit P/N 35-1210 includes ref. 2, 7, 10. 11. 14 & 16 on this figure and ref. 11, 43 & 50 on figures 10-23 and 10-24. Seal overhaul kit P/N 35-1190 (PTA 296, PTA 297 & PT 350) includes ref. 14 on this figure, ref. 3, 6, 7, 12, 20, 28, 38, 58 & 93 on figures 10-19 to 10-21, ref. 10 & 15 on figure 10-15 and ref. 2, 10, 11, 12 & 23 on figure 10-14. Seal overhaul kit P/N 35-1191 (PT 225, PT 250 & PT 270) includes ref. 14 on this figure, ref. 3, 6, 7, 12, 20, 28, 38, 58 & 91 on figures 10-16

1шт.

3

1-6417

RING

BACK-UP RING

6шт.

4

1-6416

O-RING

3шт.

5

1-6301

VALVE, CHECK

RELIEF VALVE (includes ref. 2 & 4)

1шт.

6

1-6791

PLUG (includes ref. 7)

2шт.

7

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

2шт.

Motor seal overhaul kit P/N 35-1210 includes ref. 2, 7, 10. 11. 14 & 16 on this figure and ref. 11, 43 & 50 on figures 10-23 and 10-24. Seal overhaul kit P/N 35-1190 (PTA 296, PTA 297 & PT 350) includes ref. 14 on this figure, ref. 3, 6, 7, 12, 20, 28, 38, 58 & 93 on figures 10-19 to 10-21, ref. 10 & 15 on figure 10-15 and ref. 2, 10, 11, 12 & 23 on figure 10-14. Seal overhaul kit P/N 35-1191 (PT 225, PT 250 & PT 270) includes ref. 14 on this figure, ref. 3, 6, 7, 12, 20, 28, 38, 58 & 91 on figures 10-16

1шт.

8

1-7085

SPRING

2шт.

9

1-7086

VALVE

2шт.

10

1-6463

O-RING

2шт.

Motor seal overhaul kit P/N 35-1210 includes ref. 2, 7, 10. 11. 14 & 16 on this figure and ref. 11, 43 & 50 on figures 10-23 and 10-24. Seal overhaul kit P/N 35-1190 (PTA 296, PTA 297 & PT 350) includes ref. 14 on this figure, ref. 3, 6, 7, 12, 20, 28, 38, 58 & 93 on figures 10-19 to 10-21, ref. 10 & 15 on figure 10-15 and ref. 2, 10, 11, 12 & 23 on figure 10-14. Seal overhaul kit P/N 35-1191 (PT 225, PT 250 & PT 270) includes ref. 14 on this figure, ref. 3, 6, 7, 12, 20, 28, 38, 58 & 91 on figures 10-16

1шт.

11

1-7087

OIL SEAL

BACK-UP RING

2шт.

Motor seal overhaul kit P/N 35-1210 includes ref. 2, 7, 10. 11. 14 & 16 on this figure and ref. 11, 43 & 50 on figures 10-23 and 10-24. Seal overhaul kit P/N 35-1190 (PTA 296, PTA 297 & PT 350) includes ref. 14 on this figure, ref. 3, 6, 7, 12, 20, 28, 38, 58 & 93 on figures 10-19 to 10-21, ref. 10 & 15 on figure 10-15 and ref. 2, 10, 11, 12 & 23 on figure 10-14. Seal overhaul kit P/N 35-1191 (PT 225, PT 250 & PT 270) includes ref. 14 on this figure, ref. 3, 6, 7, 12, 20, 28, 38, 58 & 91 on figures 10-16

1шт.

12

1-7088

SPOOL

1шт.

13

1-7089

VALVE BLOCK

1шт.

14

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

3шт.

15

1-6353

PLUG

(includes ref. 14)

3шт.

16

1-6789

VALVE, PRESSURE RELI

RELIEF VALVE SEAL KIT

1шт.

Motor seal overhaul kit P/N 35-1210 includes ref. 2, 7, 10. 11. 14 & 16 on this figure and ref. 11, 43 & 50 on figures 10-23 and 10-24. Seal overhaul kit P/N 35-1190 (PTA 296, PTA 297 & PT 350) includes ref. 14 on this figure, ref. 3, 6, 7, 12, 20, 28, 38, 58 & 93 on figures 10-19 to 10-21, ref. 10 & 15 on figure 10-15 and ref. 2, 10, 11, 12 & 23 on figure 10-14. Seal overhaul kit P/N 35-1191 (PT 225, PT 250 & PT 270) includes ref. 14 on this figure, ref. 3, 6, 7, 12, 20, 28, 38, 58 & 91 on figures 10-16

1шт.

17

1-6790

SHUTTLE VALVE KIT

1шт.
