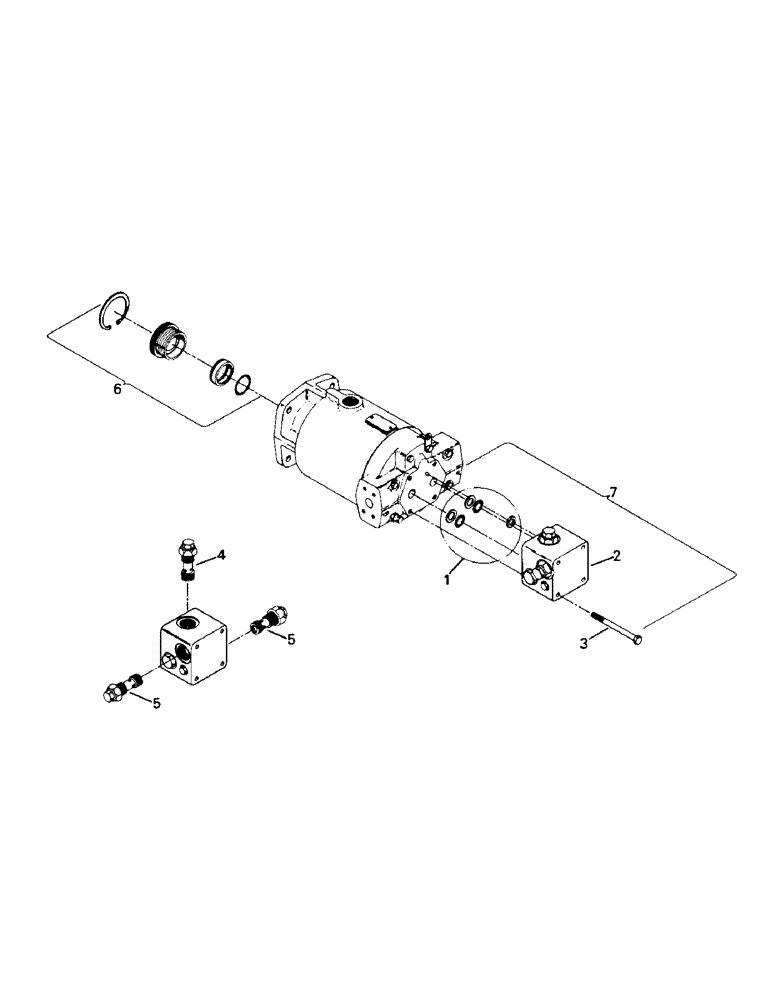

Запчасти Case IH PT270 (10-22) - FIXED DISPLACEMENT MOTOR Options & Miscellaneous

1

1-6300

SEAL KIT

VALVE BLOCK SEAL KIT

1шт.

2

1-6651

VALVE BLOCK

1шт.

3

19-133

BOLT,Hex, 3/8" - 16 x 4", Gr 5

CAPSCREW, 3/8 x 4 UNC

1шт.

4

1-6301

VALVE, CHECK

RELIEF VALVE

1шт.

5

1-6302

RELIEF VALVE

1шт.

6

1-6788

SEAL

DRIVE SHAFT SEAL KIT (early style)

1шт.

Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

2-3804T91

SEAL

DRIVE SHAFT SEAL KIT (later style) (see fig. 10-24 for individual parts)

1шт.

Superseded - Old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

7

1-6299

KIT

VALVE BLOCK KIT (includes ref. 1, 2 & 3)

1шт.
