Запчасти Case IH PT270 (10-06) - PT 225, PT 250 & PT 270, PTO HYDRAULIC SYSTEM Options & Miscellaneous

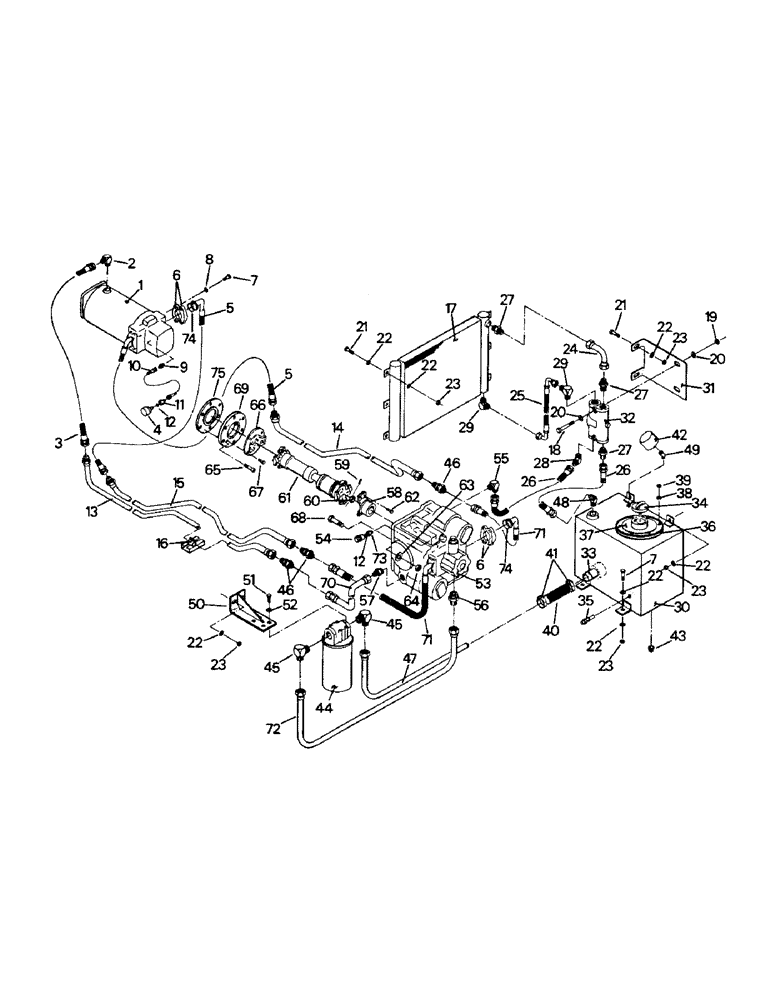

Схема запчастей Case IH PT270 - (10-06) - PT 225, PT 250 & PT 270, PTO HYDRAULIC SYSTEM Options & Miscellaneous
41
27
72
23
38
33
37
21
12
22
68
57
74
17
44
67
61
58
46
34
23
42
22
64
27
49
22
12
31
20
71
73
50
35
52
56
7
10
8
4
63
69
51
7
54
21
20
36
60
1
23
45
13
9
47
22
46
62
22
29
32
48
22
59
18
74
5
24
27
75
29
28
15
14
55
3
70
19
39
6
71
23
43
23
5
66
2
25
65
16
45
11
40
6
26
26
53
30
22

Артикул

Название

Примечание

Количество

35-1269T91

KIT

PTO KIT basic

1шт.

In addition to the basic kit, one of three different wiring and driveshaft kits, p/n 35-1273T91, 35-1274T91 or 35-1275T91, must be ordered to assure proper installation. See the SN break on figure 10-A for the proper kit identification.

1шт.

1

MOTOR (see fig. 10-23)

1шт.

2

31-326

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

(12)

1шт.

3

1-4813

HOSE ASSEMBLY

1шт.

4

1-7000

SWITCH

pressure

1шт.

Not used on the PTO II system

1шт.

5

1-4814

HOSE ASSEMBLY

2шт.

6

1-3526

COUPLING FLANGE

FLANGE, split

8шт.

7

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW, 3/8 x 1-1/4 UNC

18шт.

8

19-117

LOCK WASHER,3/8"

3/8"

16шт.

9

18-1539

HYD CONNECTOR,7/16"-20, 37 Degree x 7/16"-20, O-Ring

FITTING (4)

1шт.

Not used on the PTO II system

1шт.

10

31-1189

HOSE ASSY.

HOSE ASSEMBLY

1шт.

Not used on the PTO II system

1шт.

11

31-1188

RESTRICTOR

1шт.

Not used on the PTO II system

1шт.

12

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

2шт.

Not used on the PTO II system

1шт.

13

1-4828

TUBE ASSEMBLY 1.25" OD, 120, 14.25" Length

1шт.

14

1-4829

TUBE ASSEMBLY

1шт.

15

1-4830

TUBE ASSEMBLY

1шт.

16

31-1150

CLAMP

ASSEMBLY

7шт.

17

1-3396

OIL COOLER

1шт.

18

19-48

BOLT,Hex, 1/2" - 13 x 3", Gr 5

CAPSCREW, 1/2 x 3 UNC

2шт.

19

19-81

NUT,1/2"-13, G5

1/2 UNC

2шт.

20

19-109

WASHER,1/2"

1/2

4шт.

21

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 x 1 UNC

8шт.

22

19-107

WASHER

3/8

22шт.

23

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC

14шт.

24

1-4785

TUBE ASSEMBLY 0.075" OD, 3.75, 3.38" Length

1шт.

25

1-4815

HOSE ASSEMBLY

1шт.

26

1-4816

HOSE ASSEMBLY

2шт.

27

31-364

ADAPTER,1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

3шт.

28

31-416

ELBOW 45º, 1 1/16"-12, NPTF x 1"-11 1/2, 37º

1шт.

29

31-400

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

2шт.

30

1-3546

TANK

1шт.

31

1-4805

BRACKET

1шт.

32

1-3569

THERMOSTAT, Oil (see fig. 10-12)

1шт.

33

1-3653

FILTER, suction

1шт.

34

1-3974

DIPSTICK

1шт.

35

1-9486

SWITCH

temperature

1шт.

36

27-41

GASKET

1шт.

37

27-39

COVER

1шт.

38

19-116

LOCK WASHER,5/16"

5/16"

6шт.

39

19-77

NUT,5/16"-18, G5

5/16 UNC

6шт.

40

1-4570

HOSE,1.20" ID, 1.30" ID x 5.00"

1.20" ID, 1.30" ID x 5.00"

1шт.

41

32-1004

CLAMP,1.56"-1.81", T-Bolt

2шт.

42

18-503

FILTER

VALVE ASSEMBLY, pressure relief

1шт.

18-1633

BREATHER

ELEMENT

1шт.

31-1100

O-RING,14-1, 90 Duro, 1.048" ID x .116"" Thk

1шт.

43

31-35

PLUG

PIPE PLUG

1шт.

44

1-4168

FILTR, oil (see fig. 10-10)

1шт.

45

31-1222

ELBOW

2шт.

46

31-1018

UNION,Blkhd, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

FITTING, bulkhead

3шт.

47

1-3809

TUBE ASSEMBLY 1.25" OD, 13.64" Length

1шт.

48

18-568

ELBOW,45 Degree, 1 1/16-12" 37 Degree x 3/4"-14, NPTF

1шт.

49

31-210

STREET ELBOW

1шт.

50

1-5713

BRACKET

1шт.

51

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

CAPSCREW, 5/16 x 3/4 UNC

4шт.

52

19-700

WASHER,5/16"

5/16

4шт.

53

PUMP (see fig. 10-16)

1шт.

54

1-3551

SWITCH, low pressure

1шт.

55

31-368

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

(12)

1шт.

56

1-4144

HYD CONNECTOR,1 5/8"-12, 37 Degree x 1 5/16"-12, O-Ring

ADAPTER (16)

1шт.

57

31-464

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

FITTING (12)

1шт.

58

1-3453

YOKE

1шт.

59

19-166

PIN,1/8" x 2 1/2"

Split (Cotter), 1/8" x 2 1/2"

1шт.

60

19-5440

SLOTTED NUT

1шт.

61

1-3668

DRIVE SHAFT

DRIVESHAFT (early style)

1шт.

Superseded, old P/N must be used on models prior to S/N break new P/N will fit models after the S/N break only

1шт.

1-7103

GASKET

DRIVESHAFT (later style) (see fig. 10-11)

1шт.

Superseded, old P/N must be used on models prior to S/N break new P/N will fit models after the S/N break only

1шт.

62

454876

SCREW

CAPSCREW, 5/16 x 7/8 UNF

8шт.

63

19-112

WASHER,3/4"

3/4

4шт.

64

19-84

NUT,3/4"-10, G5

3/4 UNC

4шт.

65

19-554

HEX SOC SCREW,1/2" - 13 x 2", Gr 8

CAPSCREW, 1/2 x 2 UNC

6шт.

66

1-3451

FORK

YOKE, flange (early style)

1шт.

Superseded, old P/N must be used on models prior to S/N break new P/N will fit models after the S/N break only

1шт.

1-7102

FORK

YOKE, flange (later style)

1шт.

Superseded, old P/N must be used on models prior to S/N break new P/N will fit models after the S/N break only

1шт.

67

19-692

BOLT,Hex, 7/16" - 14 x 1", Gr 8, Full Thd

CAPSCREW, 7/16 x 1 UNC (early style)

4шт.

Superseded, old P/N must be used on models prior to S/N break new P/N will fit models after the S/N break only

1шт.

454899

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8, Full Thd

CAPSCREW, 3/8 x 7/8 UNC (later style)

6шт.

Superseded, old P/N must be used on models prior to S/N break new P/N will fit models after the S/N break only

1шт.

68

19-67

SCREW,Hex, 3/4"-10 x 2 1/4", G5

CAPSCREW, 3/4 x 2-1/4 UNC

4шт.

69

1-3466

ADAPTER

flange (early style only)

1шт.

70

1-4038

TUBE ASSEMBLY 1" OD, 5.15, 3.93" Length

1шт.

71

1-4843

HOSE ASSEMBLY

2шт.

72

1-3970

TUBE ASSEMBLY 1.25" OD, 17.67, 5.76" Length

1шт.

73

31-1085

FITTING

1шт.

74

31-1097

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

75

1-4740

ADAPTER

flange (early style only)

1шт.

32-310

CLAMP

(not shown)

2шт.

32-160

CORDURA SLEEVE (not shown)

3шт.

Выбрано товаров: 95
