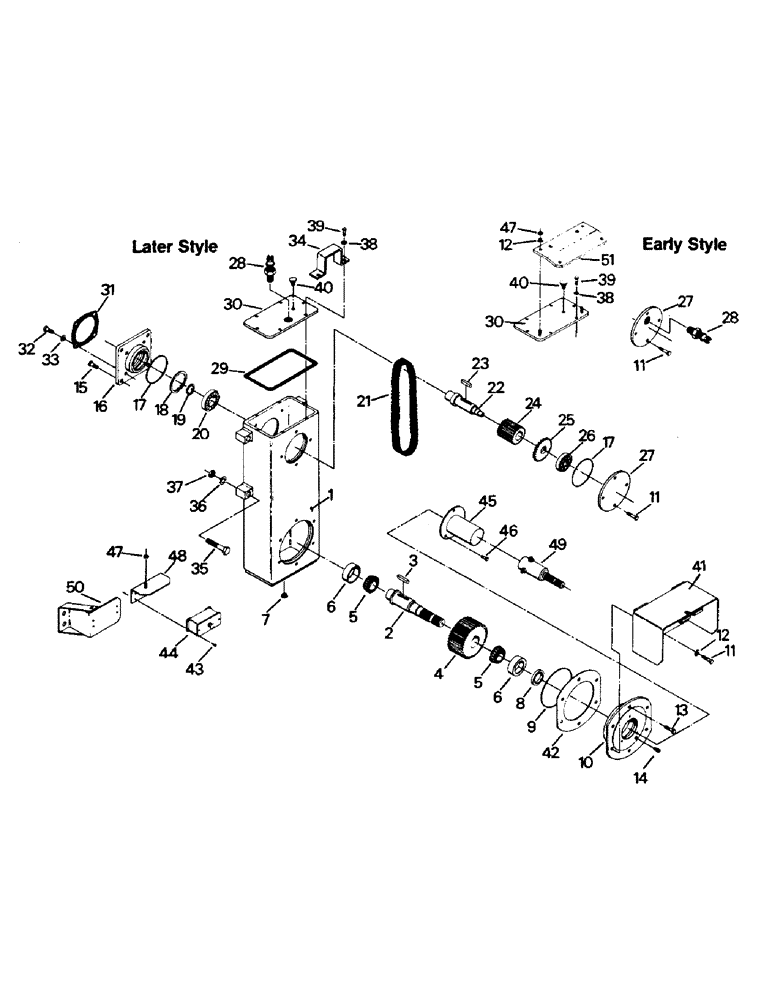

Запчасти Case IH PT270 (10-04) - PTO CHAINCASE & MOUNTING Options & Miscellaneous

2-2298T91

CHAINCASE ASSEMBLY (540 RPM)

1шт.

Adapter kit P/N 35-1113 is available to change the output shaft diameter from 1-3/4" to 1-3/8". The kit includes adapter shaft P/N 01-7183 and shield P/N 01-7185. The chaincase assembly also includes the PTO motor (ref 1) shown on pages 10-6 and 10-8).

1шт.

1-4297T91

BOX

CHAINCASE ASSEMBLY (1000 RPM)

1шт.

Adapter kit P/N 35-1113 is available to change the output shaft diameter from 1-3/4" to 1-3/8". The kit includes adapter shaft P/N 01-7183 and shield P/N 01-7185. The chaincase assembly also includes the PTO motor (ref 1) shown on pages 10-6 and 10-8).

1шт.

1

1-3316

CASE

1шт.

2

1-3321

SHAFT, output

1шт.

3

1-3292

KEY

1шт.

4

1-3312

SPROCKET, output shaft

1шт.

5

1-3297

ROLLER BEARING,2.1654" ID x 1.1417"

CONE, bearing

2шт.

6

1-3296

BEARING CUP,3.7402" OD x 0.9252"

CUP, bearing

2шт.

7

31-531

PLUG

MAGNETIC PLUG

1шт.

8

1-3302

OIL SEAL

1шт.

9

1-3300

O-RING

1шт.

10

1-3317

CARRIER, bearing

1шт.

11

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW, 3/8 x 1-1/4 UNC

8шт.

12

19-107

WASHER

3/8 (qty. 8 on early style)

6шт.

13

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 x 1 UNC

2шт.

14

31-35

PLUG

PIPE PLUG

1шт.

15

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

CAPSCREW, 1/2 x 1-1/4 UNC

4шт.

16

1-3315

CARRIER, bearing

1шт.

17

1-3294

O-RING

2шт.

18

1-3295

SNAP RING

1шт.

19

1-3298

SNAP RING

1шт.

20

1-3303

BEARING

BALL BEARING

1шт.

21

1-3251

CHAIN (AG)

CHAIN

1шт.

22

1-3314

SHAFT, input

1шт.

23

1-3291

KEY

1шт.

24

1-3301

SPROCKET, input shaft

1шт.

25

1-3311

SPROCKET

1шт.

26

1-3305

BEARING

BALL BEARING

1шт.

27

1-3313

CARRIER, bearing (early style)

1шт.

Adapter kit P/N 35-1113 is available to change the output shaft diameter from 1-3/4" to 1-3/8". The kit includes adapter shaft P/N 01-7183 and shield P/N 01-7185. The chaincase assembly also includes the PTO motor (ref 1) shown on pages 10-6 and 10-8).

1шт.

2-1854

CARRIER, bearing (later style)

1шт.

28

1-3306

TRANSMITTER

SPEED PICK-UP (early style)

1шт.

20-1739T1

MAGNET

SPEED PICK-UP (later style) (02-1771)

1шт.

Replace magnetic pickup 02-1771 with magnetic pickup kit 35-1461T91 which includes: (1) magnetic pickup 20-1739T1, (1) wire assy 20-1738T1, (2) quick splice 22-217, (2) keps nut 190481 adapter kit P/N 35-1113 is available to change the output shaft diameter from 1-3/4" to 1-3/8". The kit includes adapter shaft P/N 01-7183 and shield P/N 01-7185. The chaincase assembly also includes the PTO motor (ref 1) shown on pages 10-6 and 10-8). NOTE #2: The later style of refs 27, 18 & 30 must be used if a rear fram

1шт.

Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

29

1-3308

GASKET

1шт.

30

1-6057

COVER

(early style)

1шт.

2-1768

COVER (later style)

1шт.

31

1-3348

GASKET

1шт.

32

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW, 1/2 x 1-1/2 UNC

4шт.

19-109

WASHER,1/2"

1/2

4шт.

34

2-1770

GUARD

1шт.

35

19-566

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 5

CAPSCREW, 3/4 x 3-1/2 UNC

4шт.

36

19-121

LOCK WASHER,3/4"

3/4"

4шт.

37

19-84

NUT,3/4"-10, G5

3/4 UNC

4шт.

38

19-223

WASHER,1/4"

1/4

6шт.

39

19-541

BOLT,1/4" - 20 x 7/8", Gr 5

CAPSCREW, 1/4 x 7/8 UNC

6шт.

40

31-303

BREATHER

1шт.

41

1-6121

SHIELD (540 RPM)

1шт.

1-4775

SHIELD (1000 RPM)

1шт.

42

1-7002

SHIM (.003)

1шт.

43

19-1003

SELF-TAP SCREW,Flg Hd, #8 x 1/2"

SCREW, #8 x 1/2 UNC

4шт.

44

1-3445

CONTROL

1шт.

45

1-5609

COVER

shaft

1шт.

46

19-288

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

CAPSCREW, 5/16 x 5/8 UNC

3шт.

47

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC (qty. 3 on early style)

1шт.

48

1-5511

BRACKET (used only with 3-PT. hitch)

1шт.

49

1-3370

ADAPTER, shaft (540 RPM only)

1шт.

50

2-1861

COUPLER MOUNT (used to mount controls on models without 3-PT. hitch)

1шт.

51

1-5625

COUPLER MOUNT (early style)

1шт.
