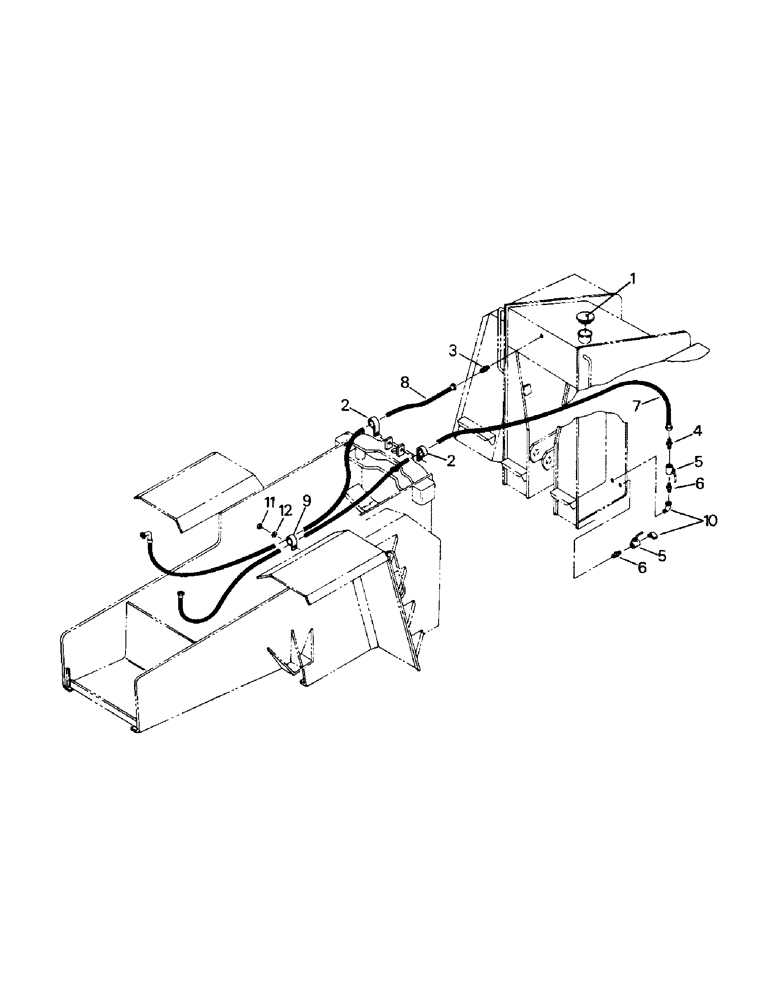

Запчасти Case IH PT225 (07-05) - FUEL SYSTEM, CUMMINS 855 ENGINE (02) - FUEL SYSTEM

1

1-4853

CAP

FUEL CAP

1шт.

2

32-343

MOUNTING CLIP

CLAMP

2шт.

3

31-363

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, NPTF

CONNECTOR

1шт.

4

31-449

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, NPTF

CONNECTOR

1шт.

5

31-1267

SHUT-OFF VALVE

VALVE

2шт.

6

31-345

FITTING

CONNECTOR

2шт.

7

31-1607

HOSE

ASSEMBLY

1шт.

8

31-1606

HOSE

ASSEMBLY

1шт.

9

31-1070

CLAMP,5/8", 3/8" Bolt, Double

2шт.

10

31-20

STREET ELBOW

2шт.

11

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC

2шт.

12

19-107

WASHER

3/8

2шт.

19-135

CABLE TIE

TY RAP (not shown)

1шт.
