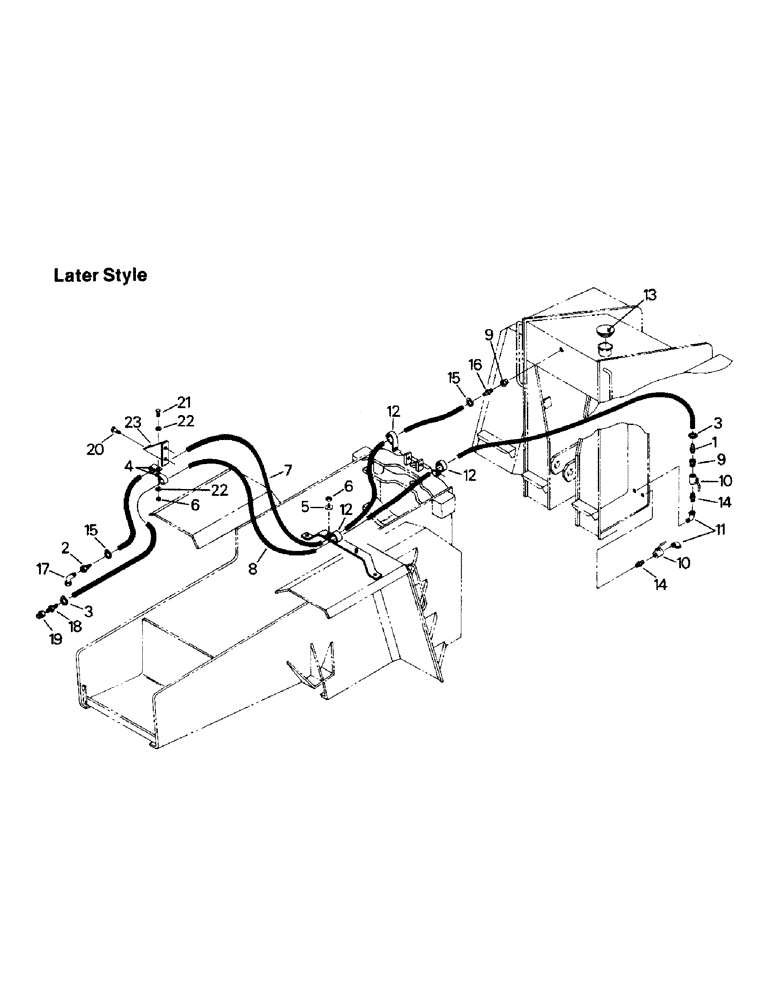

Запчасти Case IH PT225 (07-04) - FUEL SYSTEM, CAT 3306 ENGINE (02) - FUEL SYSTEM

1

31-137

FITTING

ADAPTER

1шт.

2

31-1588

FITTING

1шт.

3

32-29

HOSE CLAMP

CLAMP

2шт.

4

31-1070

CLAMP,5/8", 3/8" Bolt, Double

2шт.

5

19-107

WASHER

3/8

1шт.

6

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC

2шт.

7

31-1587

HOSE,134.00 mm

1шт.

8

31-1068

HOSE ASSY.

HOSE

1шт.

9

31-181

REDUCER

2шт.

10

31-1267

SHUT-OFF VALVE

VALVE

2шт.

11

31-20

STREET ELBOW

2шт.

12

32-343

MOUNTING CLIP

CLAMP

3шт.

13

1-4853

CAP

FUEL CAP

1шт.

14

31-345

FITTING

CONNECTOR

2шт.

15

32-59

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP

2шт.

16

31-1186

FITTING

ADAPTER

1шт.

17

9410278

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

1шт.

18

31-218

CONNECTING ROD

ADAPTER

1шт.

19

31-1547

ADAPTER

(8)

1шт.

20

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 x 3/4 UNC

2шт.

21

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW, 3/8 x 1-1/4 UNC

1шт.

22

19-117

LOCK WASHER,3/8"

3/8"

2шт.

23

1-5693

BRACKET

1шт.

1-7818

CABLE

TY RAP (not shown)

3шт.
