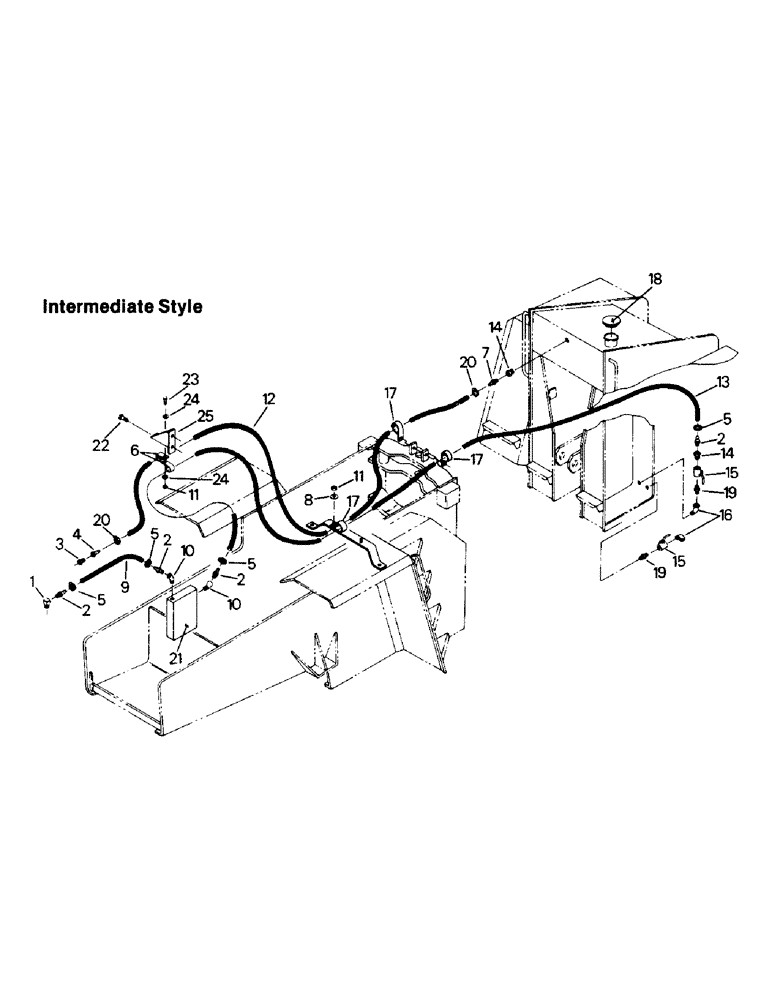

Запчасти Case IH PT225 (07-02) - FUEL SYSTEM, CAT 3306 ENGINE (02) - FUEL SYSTEM

1

31-208

ELBOW

1шт.

2

31-137

FITTING

ADAPTER

4шт.

3

31-552

ADAPTER

(not used with hose p/n 31-1587 & 31-1982)

1шт.

4

31-1588

FITTING

(used with hose p/n 31-1587 & 31-1982)

1шт.

31-553

CONNECTING ROD

FITTING (used with hose p/n 31-1069)

1шт.

5

32-29

HOSE CLAMP

CLAMP

4шт.

6

31-1070

CLAMP,5/8", 3/8" Bolt, Double

2шт.

7

31-1186

FITTING

ADAPTER (used with hose p/n 31-1587 & 31-1982)

1шт.

31-137

FITTING

ADAPTER (used with hose p/n 31-1069)

1шт.

8

19-107

WASHER

3/8

1шт.

9

31-1729

HOSE,0.38" ID x 14.00"

1шт.

31-1208

HOSE,0.38" ID x 12.00"

(PTA 270 only) 0.38" ID x 12.00"

1шт.

10

444054

ELBOW,45 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

FITTING

2шт.

11

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC

2шт.

12

31-1587

HOSE,134.00 mm

1шт.

Refs. 6, 8, 11, 22, 23, 24, 25 & 26 are not used on PTA 270 models. D: Superseded - Old p/n must be used on models prior to s/n break. New p/n will fit models after s/n break only.

1шт.

31-1069

HOSE

(3/8" I.D.)

1шт.

Refs. 6, 8, 11, 22, 23, 24, 25 & 26 are not used on PTA 270 models. D: Superseded - Old p/n must be used on models prior to s/n break. New p/n will fit models after s/n break only.

1шт.

31-1982

HOSE (PTA 270 only)

1шт.

13

31-1068

HOSE ASSY.

HOSE (PT models)

1шт.

31-1375

HOSE (PTA 270 only)

1шт.

14

31-181

REDUCER

2шт.

15

31-1267

SHUT-OFF VALVE

VALVE

2шт.

16

31-20

STREET ELBOW

2шт.

17

32-343

MOUNTING CLIP

CLAMP

3шт.

18

1-4853

CAP

FUEL CAP

1шт.

19

31-345

FITTING

CONNECTOR

2шт.

20

32-59

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP (used with hose p/n 31-1587 & 31-1982)

2шт.

32-29

HOSE CLAMP

CLAMP (used with hose p/n 31-1069)

1шт.

21

1-9773

BASE

(see following page for more information)

1шт.

Refs. 6, 8, 11, 22, 23, 24, 25 & 26 are not used on PTA 270 models. D: Superseded - Old p/n must be used on models prior to s/n break. New p/n will fit models after s/n break only.

1шт.

22

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 x 3/4 UNC

2шт.

23

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW, 3/8 x 1-1/4 UNC

1шт.

24

19-117

LOCK WASHER,3/8"

3/8"

2шт.

25

1-5693

BRACKET

1шт.

1-7818

CABLE

TY RAP (not shown) (PT models)

3шт.

19-135

CABLE TIE

TY RAP (not shown) (PTA 270 only)

1шт.
