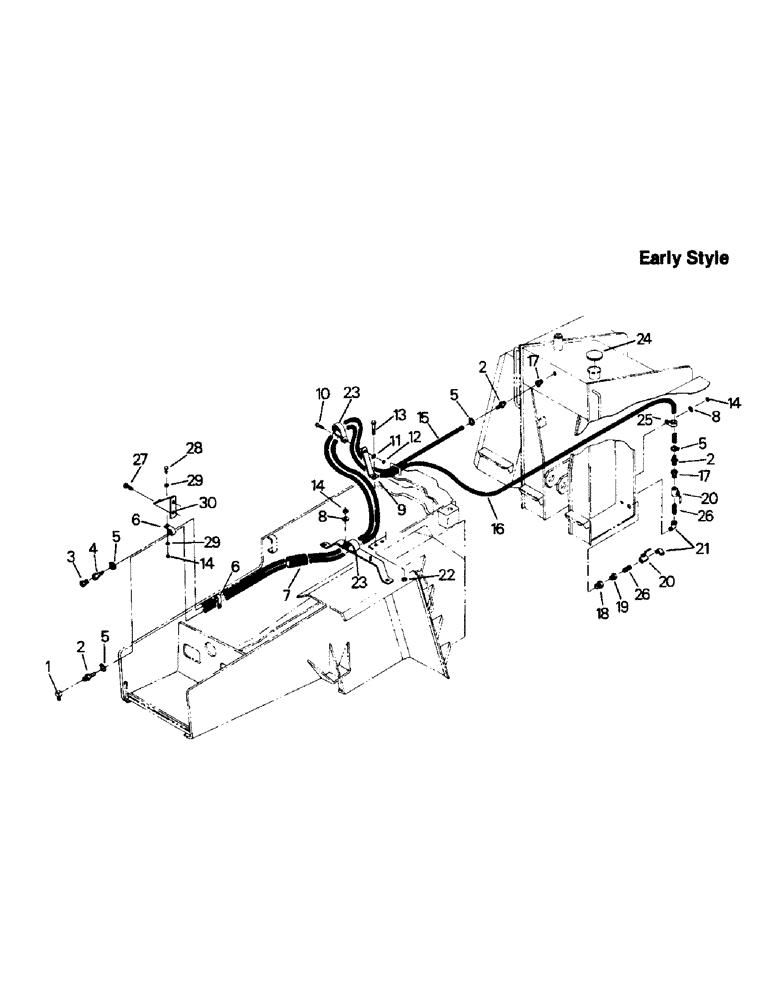

Запчасти Case IH PT225 (07-01) - FUEL SYSTEM, CAT 3306 ENGINE (02) - FUEL SYSTEM

1

31-208

ELBOW

1шт.

2

31-137

FITTING

ADAPTER

3шт.

3

31-552

ADAPTER

1шт.

4

31-553

CONNECTING ROD

FITTING

1шт.

5

32-29

HOSE CLAMP

CLAMP

4шт.

6

31-1070

CLAMP,5/8", 3/8" Bolt, Double

2шт.

7

1-4939

SLEEVE

1шт.

8

19-107

WASHER

3/8

2шт.

9

1-4940

BRACKET

1шт.

10

19-159

SCREW,Sl Rnd Hd, #10 - 24 x 3/4", Gr 2

MACHINE SCREW, #10 x 3/4 UNC

1шт.

11

19-603

LOCK WASHER,Ext Tooth, #10

#10

1шт.

12

19-567

NUT,#10-24

#10 UNC

1шт.

13

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAPSCREW, 5/16 x 1 UNC

1шт.

14

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC

3шт.

15

31-1069

HOSE

1шт.

16

31-1068

HOSE ASSY.

HOSE

1шт.

17

31-181

REDUCER

2шт.

18

31-658

REDUCER 2"-11 1/2" Male NPTF x 1"-11 1/2 Female NPTF

1шт.

19

31-175

FITTING,1"-11 1/2" Male NPTF x 1/2"-14 Female NPTF

REDUCER

1шт.

20

31-1267

SHUT-OFF VALVE

VALVE

2шт.

21

31-20

STREET ELBOW

2шт.

22

19-77

NUT,5/16"-18, G5

5/16 UNC

1шт.

23

32-343

MOUNTING CLIP

CLAMP

2шт.

24

1-4853

CAP

FUEL CAP

1шт.

25

32-302

CLAMP,7/8", Insul, 3/8" Bolt

1шт.

26

31-199

NIPPLE

2шт.

27

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 x 3/4 UNC

2шт.

28

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW, 3/8 x 1-1/4 UNC

1шт.

29

19-117

LOCK WASHER,3/8"

3/8"

2шт.

30

1-5693

BRACKET

1шт.
