Запчасти Case IH PT225 (11-48) - PTA 296, PTA 297 & PT 350 STRAYER PUMP & ATTACHING PARTS Options & Miscellaneous

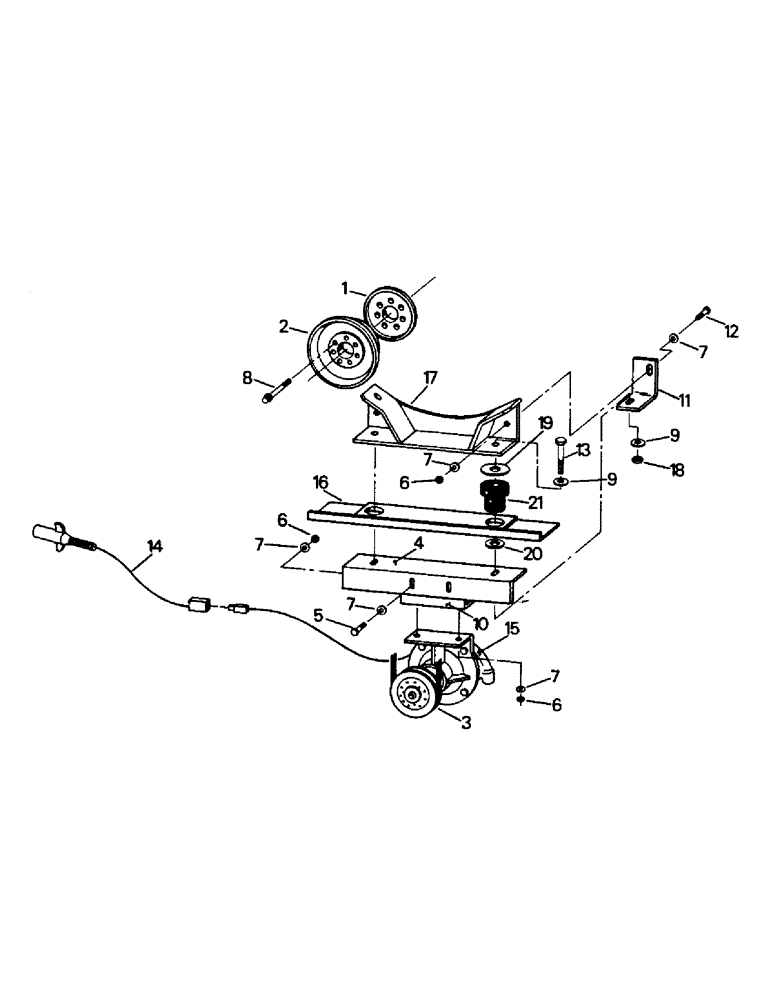

Схема запчастей Case IH PT225 - (11-48) - PTA 296, PTA 297 & PT 350 STRAYER PUMP & ATTACHING PARTS Options & Miscellaneous
3
13
7
4
17
7
6
7
14
20
18
19
6
12
2
9
21
11
15
16
5
7
9
10
1
7
6
8

Артикул

Название

Примечание

Количество

35-1161

KIT

SPRAYER PUMP KIT, consists of ref. nos. 1-15

1шт.

1

6-115

SPACER

1шт.

May be purchased as separate parts; however, if both the spacer and pulley are needed they may be replaced by P/N 01-6836 which is a single piece spacer/pulley combination.

1шт.

2

6-116

PULLEY

1шт.

May be purchased as separate parts; however, if both the spacer and pulley are needed they may be replaced by P/N 01-6836 which is a single piece spacer/pulley combination.

1шт.

3

1-9438

BELT, sprayer pump

1шт.

4

1-9439

BRACKET

1шт.

5

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW, 3/8 x 1-1/4 UNC

4шт.

6

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC

6шт.

7

19-107

WASHER

3/8

12шт.

8

19-872

PLOW BOLT,1/2" - 13 x 4 1/2", Gr 5

CAPSCREW, 5/8 x 4-1/2 UNF

7шт.

9

19-111

WASHER,5/8"

5/8

4шт.

10

1-9441

BRACKET

1шт.

11

1-9158

SUPPORT (left)

1шт.

1-9434

SUPPORT (right)

1шт.

12

19-20

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

CAPSCREW, 3/8 x 1-3/4 UNC

2шт.

13

19-762

BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 5

CAPSCREW, 5/8 x 4-1/4 UNC

2шт.

14

1-2908

ELECTRICAL WIRE

WIRE ASSEMBLY

1шт.

15

1-2219

PUMP

SPRAYER PUMP (see fig. 11-49)

1шт.

16

1-3402

CROSS MEMBER

1шт.

17

51-470

ENGINE MOUNT, front

1шт.

18

19-222

LOCK NUT,5/8" - 11, GB

5/8 UNC

2шт.

19

51-128

WASHER

rubber mount

2шт.

20

19-408

WASHER

21/32

2шт.

21

24-231

RUBBER MOUNTING

RUBBER MOUNT

2шт.

Выбрано товаров: 25
