Запчасти Case IH PT225 (11-47) - PT 225, PT 250 & PT 270, SPRAYER PUMP & ATTACHING PARTS Options & Miscellaneous

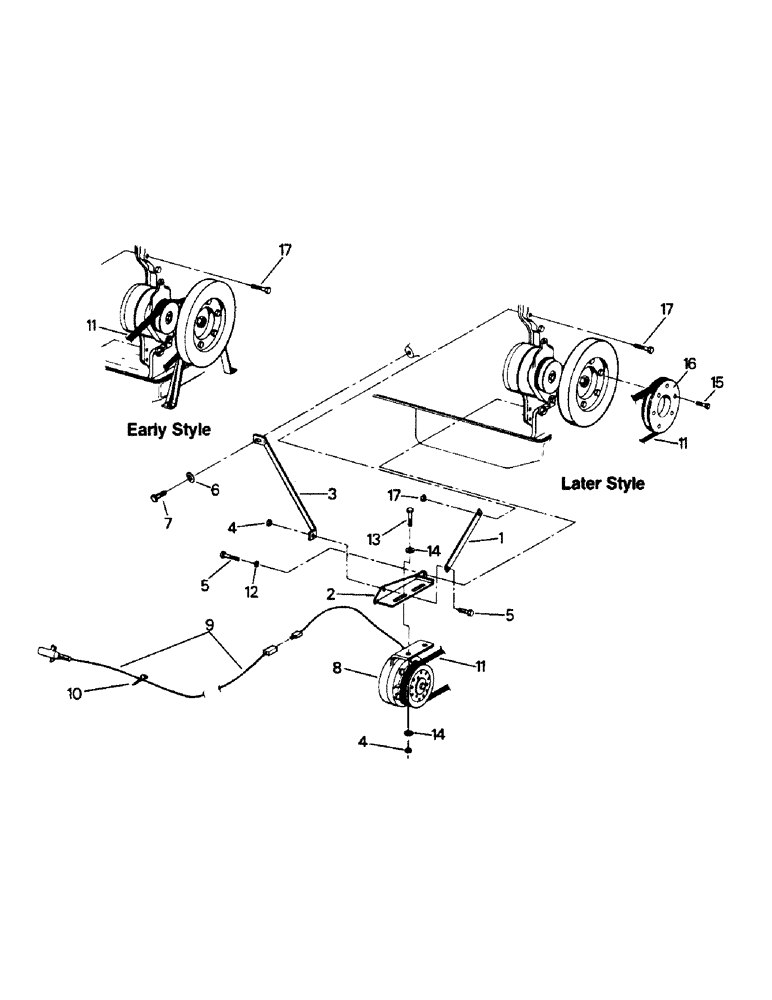

Схема запчастей Case IH PT225 - (11-47) - PT 225, PT 250 & PT 270, SPRAYER PUMP & ATTACHING PARTS Options & Miscellaneous
11
1
17
8
2
12
17
14
17
11
5
3
11
5
14
4
16
10
13
6
4
15
7
9

Артикул

Название

Примечание

Количество

35-1054

KIT

SPRAYER PUMP KIT, consists of ref. nos. 1-14

1шт.

Old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

35-1238T91

KIT

SPRAYER PUMP KIT, consists of ref. nos. 1-16

1шт.

Old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

1

1-2971

BRACE

1шт.

2

1-2967

BRACKET

MOUNT, support bracket

1шт.

Old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

1-9277

MOUNT, support bracket

1шт.

Old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

3

1-2970

BRACE

1шт.

4

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC

3шт.

5

19-799

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

CAPSCREW, 3/8 x 1-1/4 UNC

3шт.

6

19-111

WASHER,5/8"

5/8

1шт.

7

19-759

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

CAPSCREW, 5/8 x 1 UNC

1шт.

8

1-2219

PUMP

SPRAYER PUMP (see fig. 11-49)

1шт.

9

1-2908

ELECTRICAL WIRE

WIRE ASSEMBLY

1шт.

10

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

2шт.

11

6-1451

V-BELT,0.53" W x 51.75" L

Sprayer Pump 0.53" W x 51.75" L

1шт.

Old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

90-3513T1

V-BELT,0.53" W x 48.00" L

Sprayer Pump 0.53" W x 48.00" L

1шт.

Old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

12

19-117

LOCK WASHER,3/8"

3/8"

2шт.

13

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

CAPSCREW, 3/8 x 1-1/2 UNC

2шт.

14

19-107

WASHER

3/8

4шт.

15

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW, 3/8 x 1-1/4 UNC

6шт.

16

1-9280

PULLEY

1шт.

17

NSS

NOT SOLD SEPARAT

CAPSCREW & NUT (use existing hardware to attach, Serial Range: brace-engine)

1шт.

Выбрано товаров: 27
