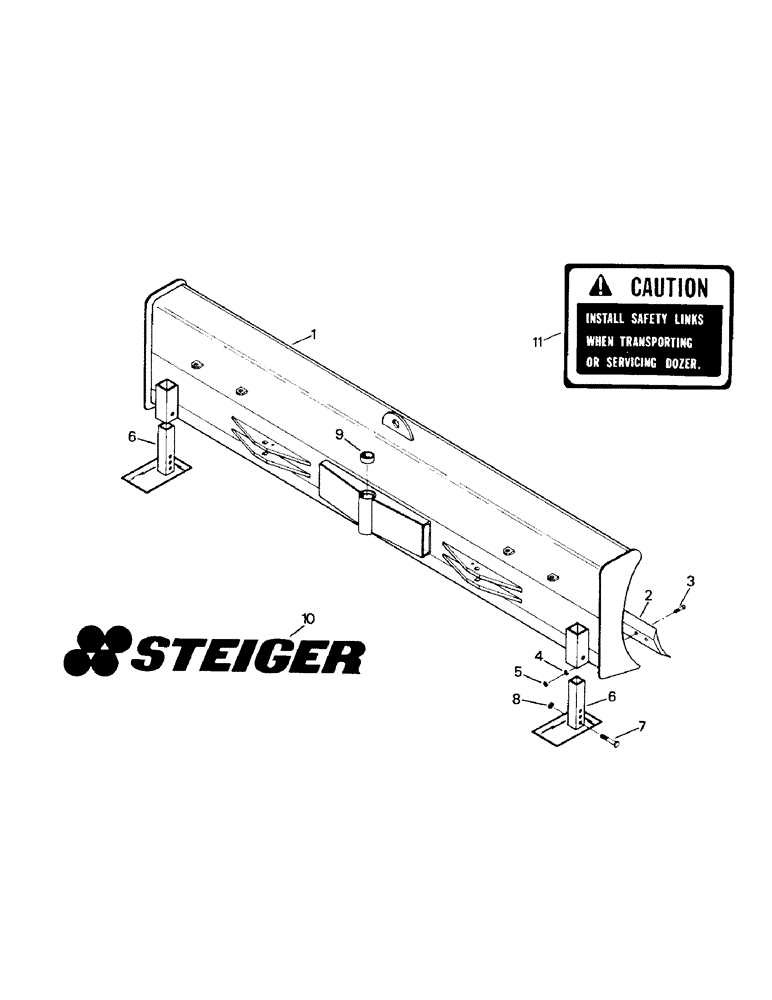

Запчасти Case IH PT225 (11-35) - MODEL 616 & 618, UTILITY BLADE ASSEMBLY Options & Miscellaneous

1

2-1134

BLADE (12')

1шт.

2-1135

BLADE (14')

1шт.

2

38-841

EDGE

CUTTING EDGE (12')

2шт.

1-9198

EDGE

CUTTING EDGE (14')

2шт.

3

19-5397

BOLT

PLOW BOLT, 5/8 x 1-3/4 UNC (qty. 18 on 14' blade)

16шт.

4

19-120

LOCK WASHER,5/8"

(qty. 18 on 14' blade) 5/8"

16шт.

5

451411

NUT, 5/8 UNC (qty. 18 on 14' blade)

16шт.

6

1-9414

SHOE

2шт.

7

19-414

BOLT,Hex, 1" - 14 x 6", Gr 5

CAPSCREW, 1 x 6 UNF

2шт.

8

19-98

NUT,1"-14, G5

1 UNF

2шт.

9

1-8311

BUSHING

2шт.

10

26-238

DECAL

Steiger (small)

4шт.

11

1-6672

DECAL, Dozer safety

2шт.
