Запчасти Case IH PT225 (11-28) - ELECTRIC DECELERATOR, PT 350 Options & Miscellaneous

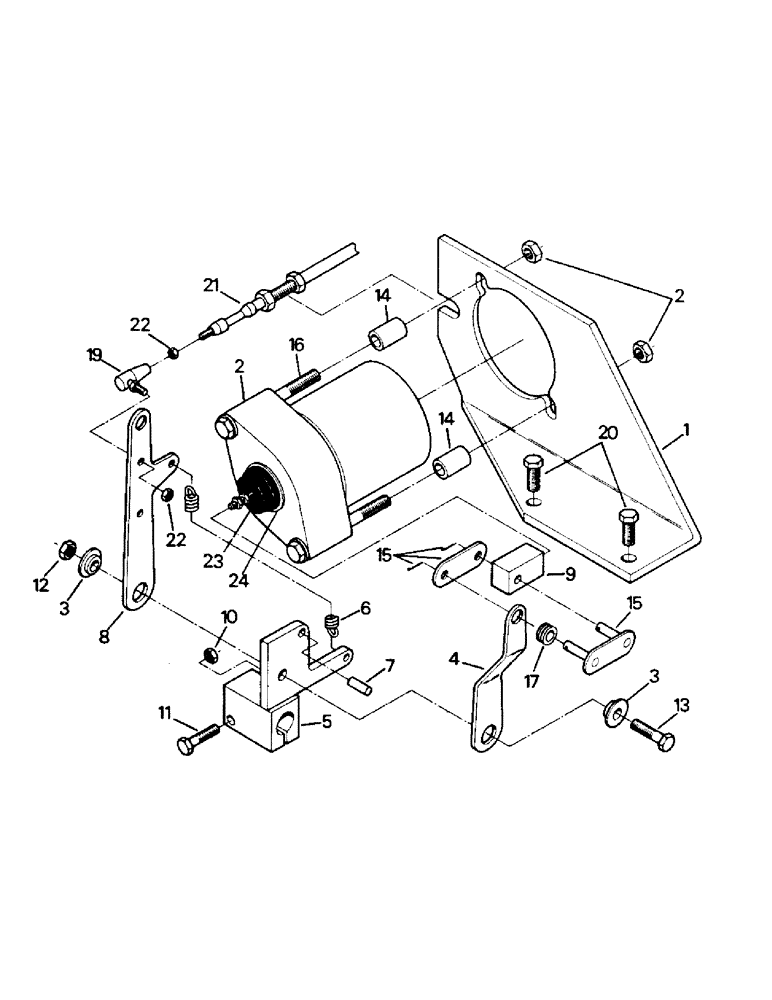

Схема запчастей Case IH PT225 - (11-28) - ELECTRIC DECELERATOR, PT 350 Options & Miscellaneous
20
4
19
24
1
14
5
10
15
8
13
23
17
12
14
15
3
2
9
7
21
22
16
3
22
6
11
2

Артикул

Название

Примечание

Количество

35-1233T94

KIT

electric decelerator, consists of ref. nos. 1-18

1шт.

This kit is used only for models not factory equipped with the electric decelerator.

1шт.

1

2-2384T1

BRACKET, throttle

1шт.

2

2-2389T91

SOLENOID

1шт.

3

2-2386T2

BUSHING

(02-2386T1)

2шт.

Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

4

2-4063T1

LEVER

decelerator

1шт.

These levers (ref. 4 & 8) wre revised when the grommet (ref. 17) was added. When ordering a replacement for the early style ref. 4 (without grommet) order lever kit P/N 35-1320T91 which contains the later style lever and one grommet.

1шт.

5

2-2387T1

COLLAR, pivot

1шт.

6

11-16

SPRING

1шт.

7

19-151

LOCK PIN,1/4" x 1", Slotted

Pin, 1/4" x 1", Slotted

1шт.

8

2-4064T1

LEVER

throttle

1шт.

These levers (ref. 4 & 8) wre revised when the grommet (ref. 17) was added. When ordering a replacement for the early style ref. 4 (without grommet) order lever kit P/N 35-1320T91 which contains the later style lever and one grommet.

1шт.

9

2-3603T1

BLOCK

1шт.

10

19-76

NUT,1/4"-20, G5

1/4 UNC

1шт.

11

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

CAPSCREW, 1/4 x 1 UNC

1шт.

12

19-77

NUT,5/16"-18, G5

5/16 UNC

1шт.

13

19-234

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

CAPSCREW, 5/16 x 1-1/4 UNC

1шт.

14

4-118

SPACER

2шт.

15

2-3604T1

LINK

connecting

1шт.

16

19-534

CAPSCREW,Hex, 5/16" - 18 x 3", Gr 8

5/16 x 3 UNC

2шт.

17

2-4062T1

GROMMET

1шт.

18

35-1276T91

KIT

decelerator wiring (see fig. 11-28)

1шт.

19

6-1431

BALL JOINT

1шт.

20

19-679

BOLT,Hex, 3/8" - 16 x 1", Gr 8

CAPSCREW, 3/8 x 1 UNC

2шт.

21

29-58

CABLE

throttle

1шт.

22

19-308

NUT,#10 - 32

JAM NUT, #10 UNF

2шт.

23

2-6602T1

INSULATOR

BOOT

1шт.

24

272861

RIGID TUBE

1шт.

Выбрано товаров: 29
