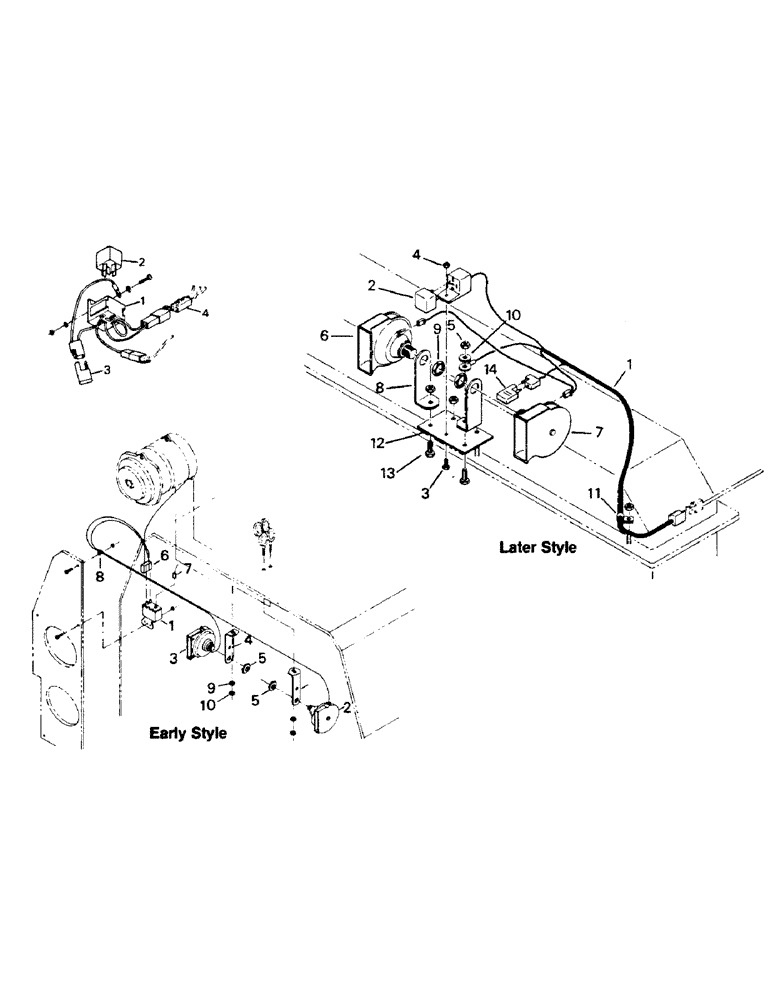

Запчасти Case IH PT225 (11-09) - HORN AND MOUNTINGS, EARLY STYLE, RELAY KIT, LATER STYLE Options & Miscellaneous

35-1032

KIT

HORN KIT, early style with round bulkhead style harness,, consists of ref. nos. 1-8

1шт.

Superseded, old P/N is not used any longer, the new P/N is to be used in all cases, old P/N should be removed from existing inventory, it is recommended that the old part not be used under any circumstances

1шт.

Kit 35- 1363T92 should be ordered to convert early style mountings to later style in cases where mount breakage or relay failures are a problem. It contains new mounts, relay and wiring.

1шт.

35-1148

KIT

HORN KIT, early style with later square Packard style harness

1шт.

Superseded, old P/N is not used any longer, the new P/N is to be used in all cases, old P/N should be removed from existing inventory, it is recommended that the old part not be used under any circumstances

1шт.

Kit 35- 1363T92 should be ordered to convert early style mountings to later style in cases where mount breakage or relay failures are a problem. It contains new mounts, relay and wiring.

1шт.

1

29-1001

RELAY

1шт.

2

29-1002

HORN

1шт.

3

29-1003

HORN

1шт.

4

29-1004

BRACKET

2шт.

5

19-1002

SPECIAL NUT

7/8 UNF

2шт.

6

1-1417

ELECTRICAL WIRE

WIRE

1шт.

Ref. 6 and 7 were combined into 1 harness, 01-8579, when used with Packard style connectors

1шт.

7

1-1418

ELECTRICAL WIRE

WIRE (3306 & 855 eng)

1шт.

Ref. 6 and 7 were combined into 1 harness, 01-8579, when used with Packard style connectors

1шт.

1-1419

ELECTRICAL WIRE

WIRE (3406 & 903 eng)

1шт.

Ref. 6 and 7 were combined into 1 harness, 01-8579, when used with Packard style connectors

1шт.

8

32-69

CLAMP

2шт.

9

19-467

LOCK WASHER,Ext Tooth, 1/4"

1/4

2шт.

10

19-76

NUT,1/4"-20, G5

1/4 UNC

2шт.

35-1517T91

KIT

RELAY KIT, can be used to adapt later style relay into the early style system

1шт.

1

20-1948T1

RELAY HARNESS

1шт.

2

1-7877

RELAY

1шт.

3

22-738

DIODE

relay kit

1шт.

4

2977373

CONNECTOR, ELEC

CONNECTOR BODY, relay kit

1шт.

35-1148T91

KIT

HORN KIT, later style, will replace all early kits, consists of ref. nos. 1 - 15

1шт.

1

2-6566T2

HARNESS

WIRE HARNESS, horn (02-6566T1), later style

1шт.

Superseded, old P/N is not used any longer, the new P/N is to be used in all cases, old P/N should be removed from existing inventory, it is recommended that the old part not be used under any circumstances

1шт.

2

1-7877

RELAY

later style

1шт.

3

463-41012

SCREW,Slot Hex Wash Hd, #10-24 x 3/4"

MACHINE SCREW, #10 NC x 3/4, later style

1шт.

4

19-5563

LOCK NUT

LOCK NUT, #10 NC, later style

1шт.

5

19-5777

LOCK NUT

JAM NUT, 5/16 NC, later style

5шт.

6

29-1003

HORN

later style

1шт.

7

29-1002

HORN

later style

1шт.

8

29-1004

BRACKET

horn, later style

2шт.

9

19-1002

SPECIAL NUT

7/8 NF, later style

2шт.

10

19-106

WASHER,5/16", SAE

5/16, later style

1шт.

11

32-303

CLIP

CLAMP, later style

1шт.

12

2-4901T1

BRACKET

horn, later style

1шт.

13

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAPSCREW, 5/16 NC x 1

2шт.

14

22-738

DIODE

1шт.

15

20-1505T1

HARNESS

gnd (not shown) (used only on tractors built prior to Feb 82 that do not have gnd wire in front frame harness)

1шт.
