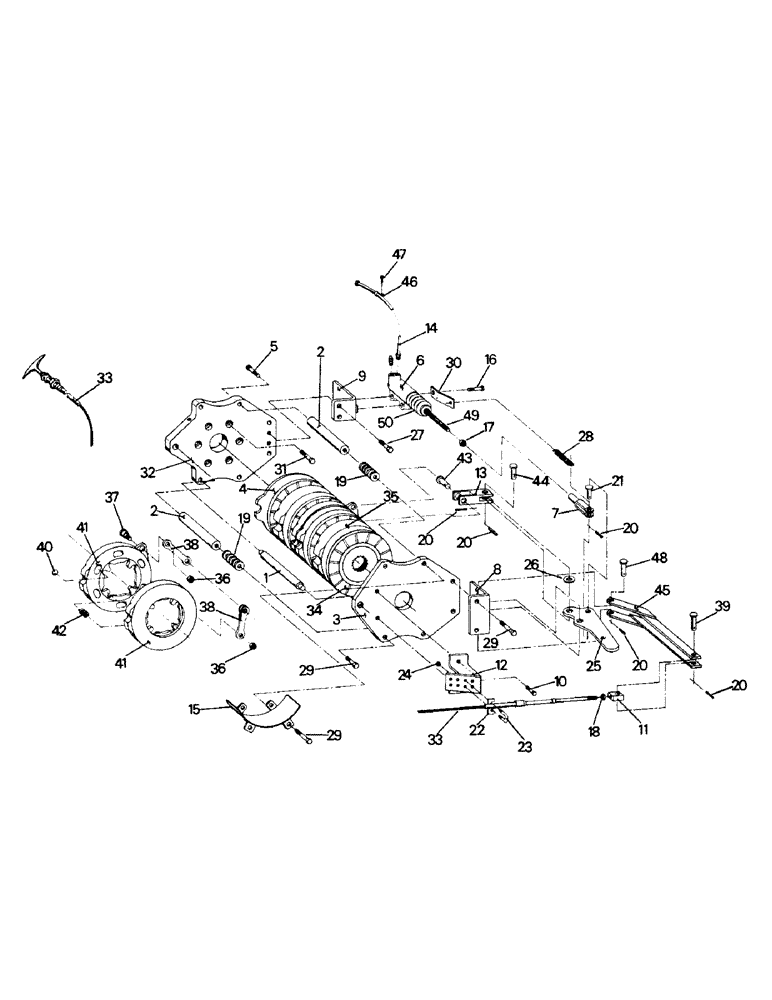

Запчасти Case IH PT225 (05-1) - BRAKE GROUP - MULTIPLE DISC, PT MODELS, BEFORE FEB 82 (5.1) - BRAKES

1

1-6919

PIN

PIVOT

1шт.

Park break kit p/n 35-111 used to update early style brakes to the later version shown here. The kit includes ref. 11, 12, 20, 23, 39, 45, & 48.

1шт.

2

1-6921

PIN

brake

6шт.

Park break kit p/n 35-111 used to update early style brakes to the later version shown here. The kit includes ref. 11, 12, 20, 23, 39, 45, & 48.

1шт.

3

1-3715

LARGE PLATE

PLATE, outside

1шт.

4

90-2889T1

CAP

PLATE, end (01-1913)

1шт.

Park brake kit p/n 35-111 used to update early style brakes to the later version shown here. The kit includes ref. 11, 12, 20, 23, 39, 45 & 48. See figure 1-C for serial number breaks for caliper style brakes. NOTE: Some early style brakes did not have the adjustment shims (ref. 19). Shim & pin kit p/n 35-1107 (ref. 1, 2 & 19) should be installed if the shims are not already present. The p/n shown for ref. 1 & 2 are for the latest pins which are used with shims. NOTE: See page 5-4A for brake adjuster ki

1шт.

5

19-554

HEX SOC SCREW,1/2" - 13 x 2", Gr 8

SOCKET HEAD CAPSCREW, 1/2 x 2 UNC

6шт.

6

1-2081

CYLINDER ASSY.

CYLINDER, slave

1шт.

6

54-299R

REMAN-HYD CYLINDER

Reman for New PN 1-2081

1шт.

6

54-299C

CORE-HYD CYLINDER

Return Number

1шт.

35-1009

KIT

REPAIR KIT

1шт.

54-299R

REMAN-HYD CYLINDER

Reman for New PN 35-1009

1шт.

54-299C

CORE-HYD CYLINDER

Return Number

1шт.

7

19-139

YOKE

CLEVIS

1шт.

8

1-4003

PIVOT

1шт.

9

1-4032

MOUNT

1шт.

10

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 x 3/4 UNC

2шт.

11

1-6934

LINK

1шт.

12

1-6940

BRACKET

1шт.

13

1-2092

YOKE

1шт.

14

1-4845

LINE

BRAKE LINE

1шт.

15

1-4047

SHIELD

2шт.

16

19-581

CAPSCREW,Hex, 7/16" - 14 x 2", Gr 8

7/16 x 2 UNC

2шт.

17

19-91

NUT,3/8"-24, G5

3/8 UNF

1шт.

18

19-89

NUT,1/4"-28, G5

1/4 UNF

1шт.

19

19-5507

SHIM

(see note)

30шт.

20

19-168

COTTER PIN,1/8" x 1"

5шт.

21

19-5415

CLEVIS PIN,3/8" x 1 3/8"

1шт.

22

1-3767

SHIM

1шт.

23

19-964

BOLT

U-BOLT

1шт.

24

19-77

NUT,5/16"-18, G5

5/16 UNC

2шт.

25

1-2958

LEVER

1шт.

26

19-463

WASHER,1/2", SAE

1/2

1шт.

27

19-543

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

CAPSCREW, 1/2 x 1-1/2 UNC

2шт.

28

1-5696

SPRING

1шт.

SPRING MEASURE 4 3/8"

1шт.

29

19-46

BOLT,1/2" - 13 x 2", Gr 5

CAPSCREW, 1/2 x 2 UNC

6шт.

30

1-4934

STRAP

1шт.

31

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

CAPSCREW, 1/2 x 1-1/4 UNC

6шт.

32

1-3361

PLATE

inside

1шт.

33

60-1388T1

CABLE

brake

1шт.

1-1051

GROMMET

(inserted in floorboard with brake cable)

1шт.

1-4669

BRAKE

ASSEMBLY (does not include ref. 29), consists of 34-42

1шт.

34

1-4668

BRAKE DISC

DISC, metal

4шт.

35

1-3322

DISC

intermediate

2шт.

1-3323

DISC

ASSEMBLY, actuating (includes ref. 36-38 and ref. 40-42)

1шт.

36

19-237

NUT,Jam, 1/2" - 20, Gr 5

1/2 UNF

2шт.

37

1-3324

STUD

2шт.

38

1-3325

LINK

2шт.

39

9416912

CLEVIS PIN,3/8" x 1 1/2"

1шт.

40

1-3327

BALL

6шт.

41

1-3328

DISC

actuating

2шт.

42

1-3329

SPRING

extension

4шт.

43

9422050

PIN

CLEVIS PIN

1шт.

44

9417948

CLEVIS PIN,1/2" x 1.530"

1шт.

45

1-6945

ARM

lever

1шт.

46

32-68

COTTER PIN,3/32" x 1/2"

CLIP

4шт.

47

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW, tapping, #10 x 1/2 UNC

4шт.

48

42-102

CLEVIS PIN,1/2" x 2.060"

1шт.

49

1-4663

PUSH ROD

1шт.

50

1-3082

BOOT

1шт.
