Запчасти Case IH PT225 (09-4) - CHASSIS DECALS (13) - DECALS

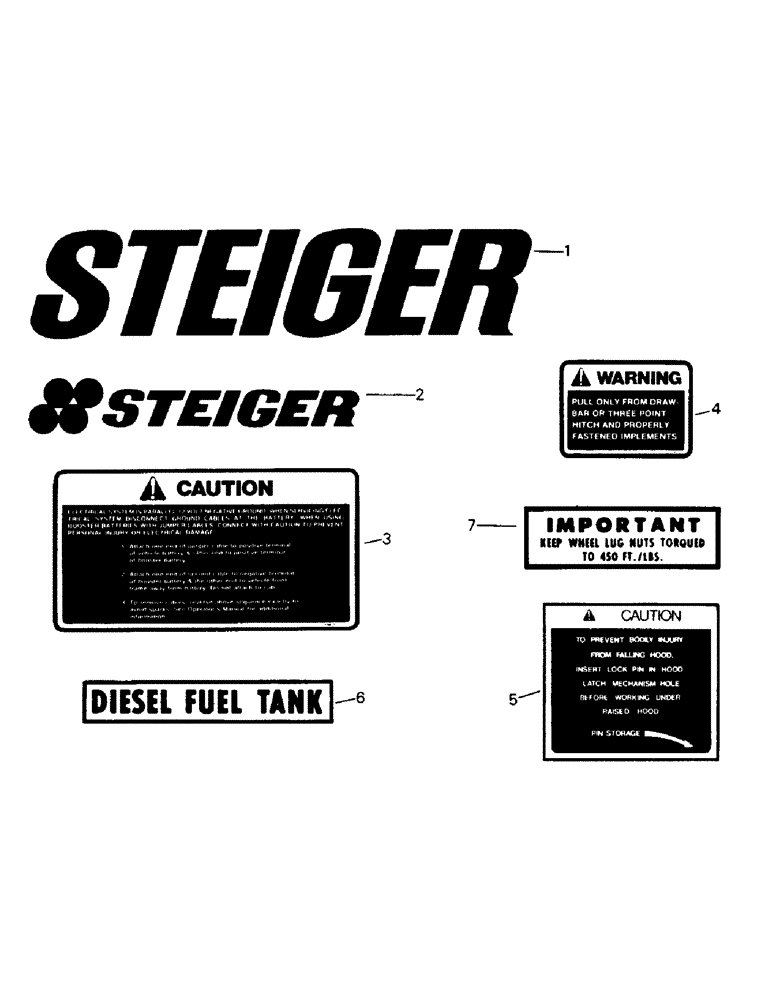

Схема запчастей Case IH PT225 - (09-4) - CHASSIS DECALS (13) - DECALS
2
3
7
6
5
1
4

Артикул

Название

Примечание

Количество

1

2-3406T1

DECAL

steiger (large)

1шт.

2

26-238

DECAL

steiger (small)

2шт.

3

1-6264T1

DECAL

booster battery (01-6264)

1шт.

Superseded - Old P/N is not used any longer; the new P/N is to be used in all cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

4

1-5726T1

DECAL

implement attaching (01-5726)

1шт.

Superseded - Old P/N is not used any longer; the new P/N is to be used in all cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

5

2-1603

DECAL

hood lock pin

1шт.

6

26-242

DECAL

diesel fuel tank

1шт.

7

1-4811

DECAL

wheel lug nuts

1шт.

Выбрано товаров: 9
