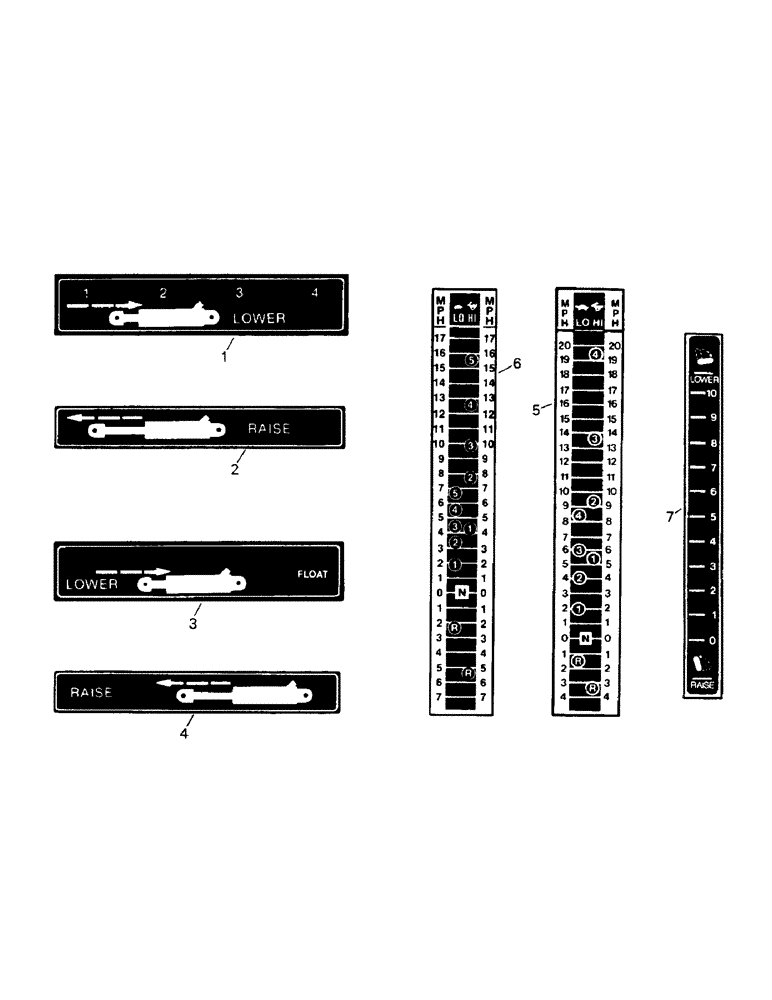

Запчасти Case IH PT225 (09-3) - TILT CONSOLE DECALS (13) - DECALS

1

1-5560

DECAL

hydraulic control (early style)

1шт.

Error correction - New P/N is correct for all uses. Bracket P/N 06-1604 was also used on some early PTA 296, PTA 297 & PT 350 models. When ordering a replacement bracket, either version (P/N 06-1604 or 02-1867T1) will work on these early models; however, the tubing length will be different. NOTE: The early style bail extensions (P/N 01-1389 - qty 2) have now been incorporated into the bail assembly (ref. 5). If these extensions are needed, the only way they are avialable is by purchasing the complete bai

1шт.

2

1-5562

DECAL

hydraulic control (early style)

1шт.

Error correction - New P/N is correct for all uses. Bracket P/N 06-1604 was also used on some early PTA 296, PTA 297 & PT 350 models. When ordering a replacement bracket, either version (P/N 06-1604 or 02-1867T1) will work on these early models; however, the tubing length will be different. NOTE: The early style bail extensions (P/N 01-1389 - qty 2) have now been incorporated into the bail assembly (ref. 5). If these extensions are needed, the only way they are avialable is by purchasing the complete bai

1шт.

3

60-1573T1

DECAL

hydraulic controls (later style)

1шт.

Error correction - New P/N is correct for all uses. Bracket P/N 06-1604 was also used on some early PTA 296, PTA 297 & PT 350 models. When ordering a replacement bracket, either version (P/N 06-1604 or 02-1867T1) will work on these early models; however, the tubing length will be different. NOTE: The early style bail extensions (P/N 01-1389 - qty 2) have now been incorporated into the bail assembly (ref. 5). If these extensions are needed, the only way they are avialable is by purchasing the complete bai

1шт.

4

60-1574T1

DECAL

hydraulic control (late style)

1шт.

Error correction - New P/N is correct for all uses. Bracket P/N 06-1604 was also used on some early PTA 296, PTA 297 & PT 350 models. When ordering a replacement bracket, either version (P/N 06-1604 or 02-1867T1) will work on these early models; however, the tubing length will be different. NOTE: The early style bail extensions (P/N 01-1389 - qty 2) have now been incorporated into the bail assembly (ref. 5). If these extensions are needed, the only way they are avialable is by purchasing the complete bai

1шт.

5

2-1545

DECAL, automatic shifter (4-speed transmission)

1шт.

6

60-1184T1

DECAL

automatic shifter (5-speed transmission)

1шт.

7

2-1013

DECAL

depth control

1шт.
