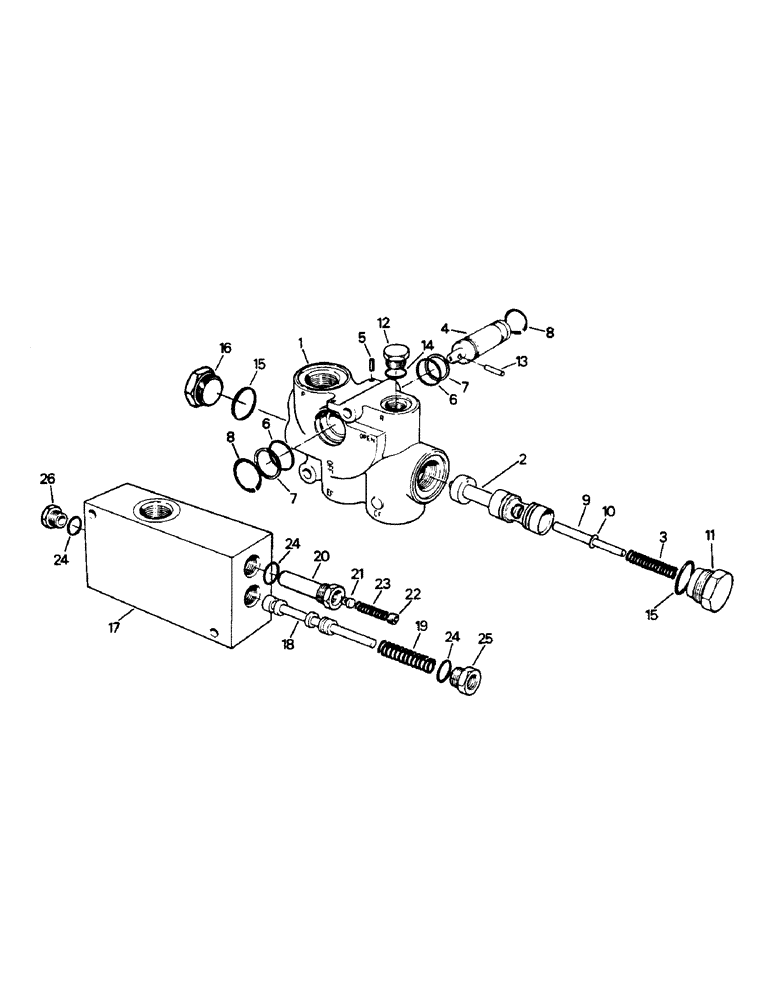

Запчасти Case IH PT225 (08-25) - FLOW DIVIDER & PRIORITY VALVE (07) - HYDRAULICS

18-1505T91

DIVIDER

FLOW DIVIDER ASSEMBLY (replaces p/n 18-1505 - code E), consists of

1шт.

35-1218T91

SEAL KIT

SEAL KIT (includes ref. 1-15)

1шт.

1

NSS

NOT SOLD SEPARAT

VALVE BODY

1шт.

2

18-1615

PISTON

1шт.

3

18-1616

SPRING

1шт.

4

18-1617

VALVE

CONTROL

1шт.

5

18-1618

SCREW

SET SCREW

1шт.

6

31-1457

O-RING

2шт.

7

1-8180

RING

BACK-UP RING

2шт.

8

18-1621

RING, SNAP

SNAP RING

2шт.

9

18-1622

ROD

RETAINING ROD

1шт.

10

18-1623

WASHER

1шт.

11

18-1624

PLUG

ASSEMBLY (with o-ring)

1шт.

12

31-336

PLUG

ASSEMBLY (iwth o-ring)

1шт.

13

456836

PIN,1/4" x 2 1/2", Coiled

1шт.

14

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

31-1100

O-RING,14-1, 90 Duro, 1.048" ID x .116"" Thk

2шт.

16

2-4661T91

PLUG

ASSEMBLY (with o-ring)

1шт.

A recent change was made to the relief cartridge increasing the pressure from 2000 PSI (P/N 01-2392) to 2200 PSI (P/N 50-1289T91 which is now replaced by 50-1959T91). Coordinated with this change to the priority valve were pressure changes to the male relief valve on page 8-12, and the relief assembly in the hydraulic control valve on page 8-16. When ordering either a new priority valve or just the relief cartridge the lates style (2200 PSI) should be ordered and the appropriate pressure changes made to th

1шт.

1-2391T91

VALVE

PRIORITY VALVE ASSEMBLY (replaces p/n 01-2391 - code E), consists of 17-26

1шт.

New Part - additional P/N or P/NS is/are used after the S/N break.

1шт.

17

18-1600

VALVE

HOUSING

1шт.

18

18-1599

SPOOL

1шт.

19

18-1598

SPRING

3шт.

50-1959T91

VALVE

RELIEF CARTRIDGE (01-2392) ((50-1289T91), consists of 20-24

1шт.

Superseded - Old P/N is not used any longer; the new P/N is to be used in all cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

20

NSS

NOT SOLD SEPARAT

BODY

1шт.

21

NSS

NOT SOLD SEPARAT

POPPET

1шт.

22

NSS

NOT SOLD SEPARAT

ADJUSTING SCREW

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING

1шт.

24

18-1592

O-RING

3шт.

25

18-1591

PLUG

spring retainer

1шт.

26

18-1590

PLUG

(w/o-ring)

1шт.
