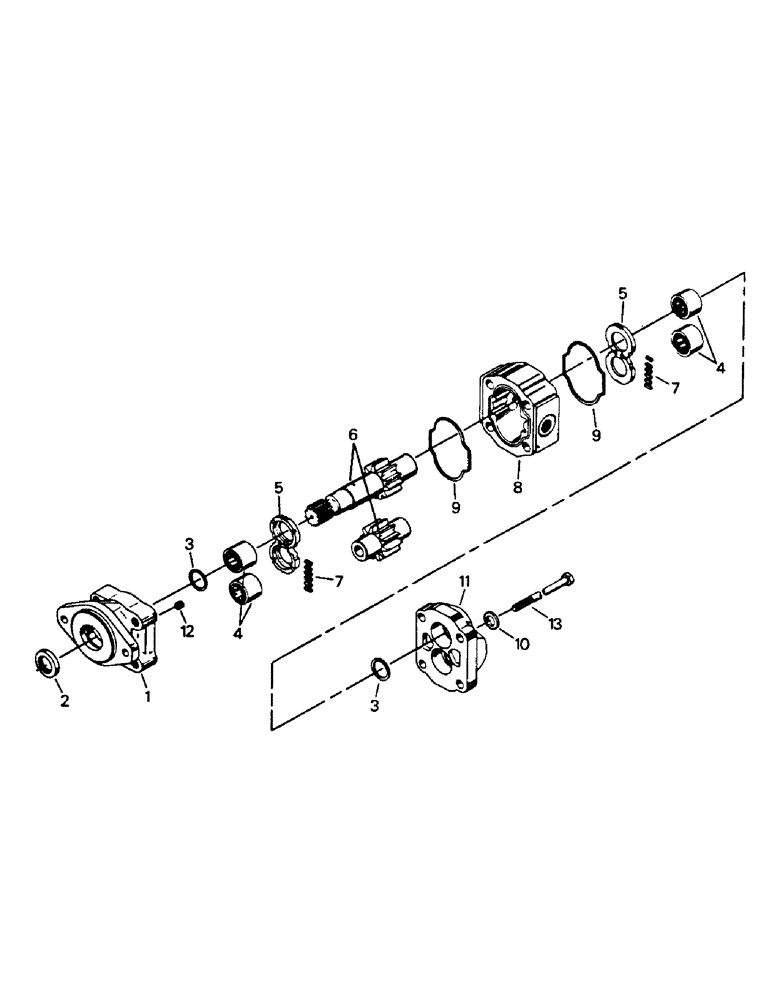

Запчасти Case IH PT225 (08-22A) - HYDRAULIC PUMP ASSEMBLY, CAT 3406 ENGINE (07) - HYDRAULICS

50-2048T91

PUMP, HYDRAULIC

HYDRAULIC PUMP ASSY, consists of Ref. 1-13

1шт.

1

18-1468

COVER

SHAFT END COVER

1шт.

2

18-1573

SEAL

1шт.

3

18-771

SEALING RING

RING SEAL

2шт.

4

18-773

ROLLER BEARING

4шт.

5

18-774

LARGE PLATE

THRUST PLATE

2шт.

6

50-2101T1

GEAR-SET

DRIVE & GEAR SET

1шт.

7

2-3433T1

SEAL

POCKET SEAL

12шт.

8

50-2100T1

GEAR HOUSING

1шт.

THE PART NUMBER SHOULD BE 50-2100T91.

1шт.

9

18-777

GASKET,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

SEAL

2шт.

10

19-488

WASHER

4шт.

11

18-978

END COVER

1шт.

12

18-772

PLUG

1шт.

13

19-209

BOLT,Hex, 5/8" - 11 x 5", Gr 5

CAPSCREW

4шт.
