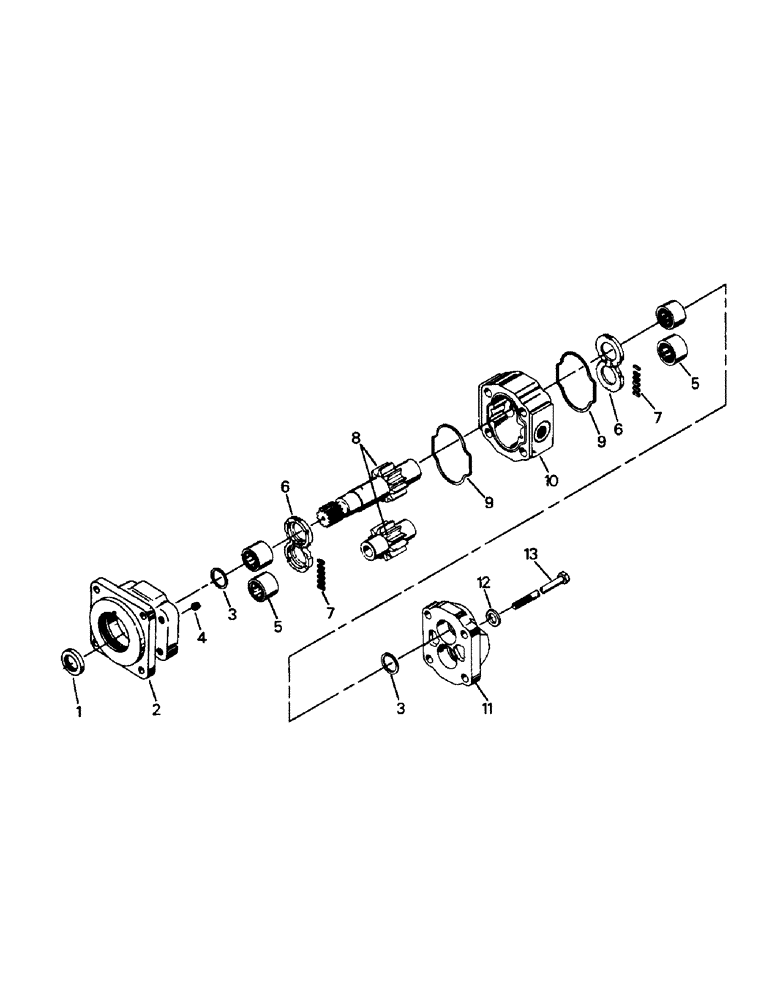

Запчасти Case IH PT225 (08-22) - PT 350 HYDRAULIC PUMP (07) - HYDRAULICS

18-1629

PUMP

ASSEMBLY, consists of Ref. 1-13

1шт.

1

18-1573

SEAL

DOUBLE LIP SEAL

1шт.

2

18-969

SHAFT END COVER

1шт.

3

18-771

SEALING RING

RING SEAL

2шт.

4

18-772

PLUG

1шт.

5

18-773

ROLLER BEARING

4шт.

6

18-774

LARGE PLATE

THRUST PLATE

2шт.

7

18-971

SEAL

POCKET SEAL STRIP

2шт.

8

18-1677

DRIVE SHAFT & GEAR SET

1шт.

9

18-777

GASKET,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

SEAL

2шт.

10

18-1676

HOUSING

GEAR HOUSING

1шт.

11

18-779

PORT

END COVER

1шт.

12

19-488

WASHER

4шт.

13

19-763

BOLT,Hex, 5/8" - 11 x 4 3/4", Gr 5

CAPSCREW, 5/8 x 4-3/4 UNC

4шт.
