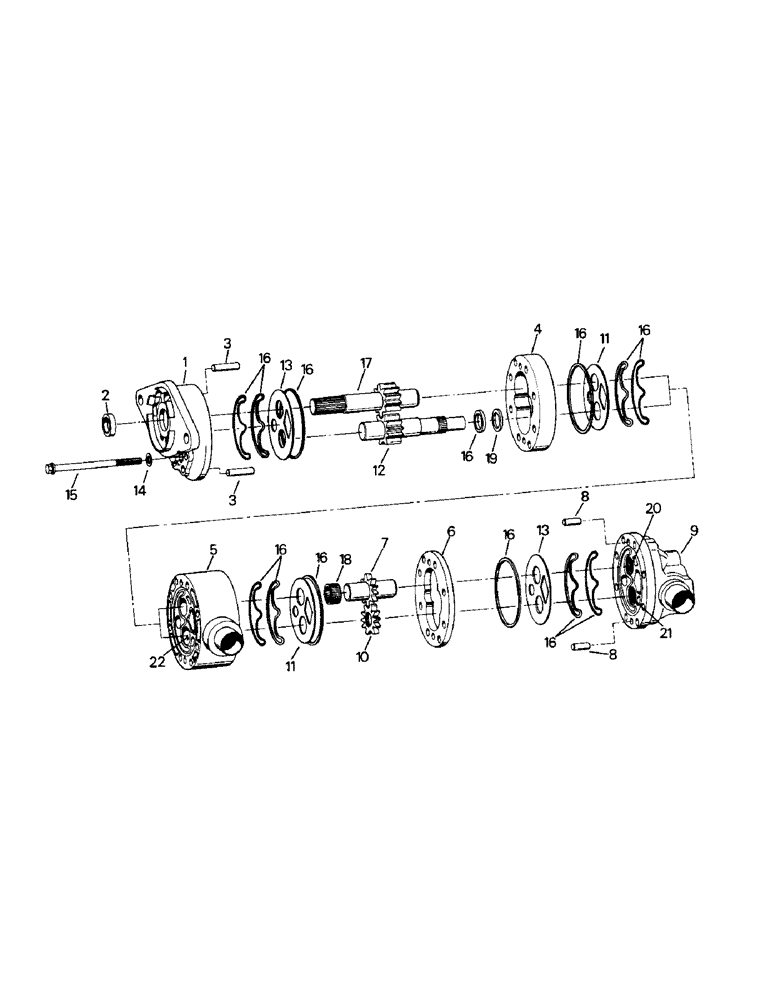

Запчасти Case IH PT225 (08-21) - PTA 296 & PTA 297 HYDRAULIC PUMP (07) - HYDRAULICS

50-1060T91

PUMP

ASSEMBLY, consists of

1шт.

1

1-7118

BODY

ASSEMBLY (includes ref. 2)

1шт.

2

1-9400

OIL SEAL

SEAL (included in kit 35-1221 or sold separately)

1шт.

3

50-1094T1

DOWEL PIN

2шт.

4

50-1090T1

GEAR PLATE

1шт.

5

50-1091T91

PLATE ASSEMBLY

1шт.

6

50-1037T1

GEAR PLATE

1шт.

7

50-1034T1

IDLER SHAFT & GEAR ASSEMBLY

1шт.

8

50-1036T1

DOWEL

PIN

2шт.

9

50-1029T91

COVER

ASSEMBLY

1шт.

10

50-1035T1

GEAR

1шт.

11

50-1038T1

WEAR PLATE

2шт.

12

50-1092T1

IDLER SHAFT & GEAR ASSEMBLY

1шт.

13

1-9709

LARGE PLATE

WEAR PLATE

2шт.

14

1-9979

WASHER

8шт.

15

50-1093T1

STUD & NUT ASSEMBLY

8шт.

16

35-1221

MINOR REPAIR KIT

1шт.

17

50-1089T1

DRIVE SHAFT & GEAR ASSEMBLY

1шт.

18

50-1026T1

NEEDLE BEARING (included with ref. 5 or sold separtely)

1шт.

19

50-1028T1

WASHER, back-up (included with ref. 5 or sold separately)

1шт.

20

50-1030T1

NEEDLE BEARING (included with ref. 9 or sold separately)

1шт.

21

50-1031T1

ROLLER BEARING (included with ref. 9 or sold separately)

1шт.

22

1-9713

NEEDLE BEARING

BEARING, sleeve

4шт.
